Omron Z Series Lever Limit Switch, SPDT Contact Configuration, Thermosetting Resin Housing, 500V AC, 15A, IP00,

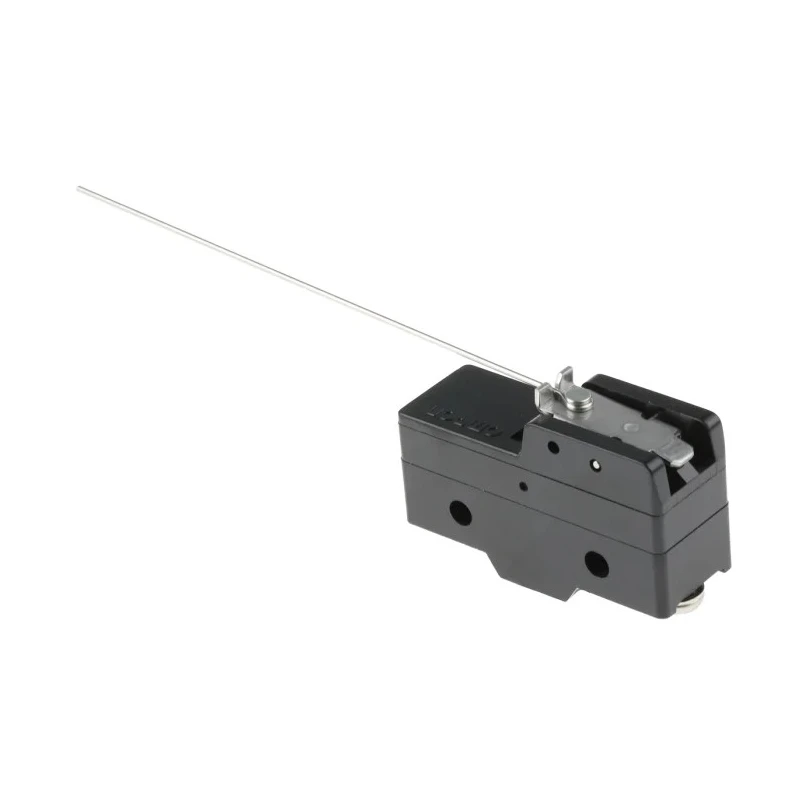

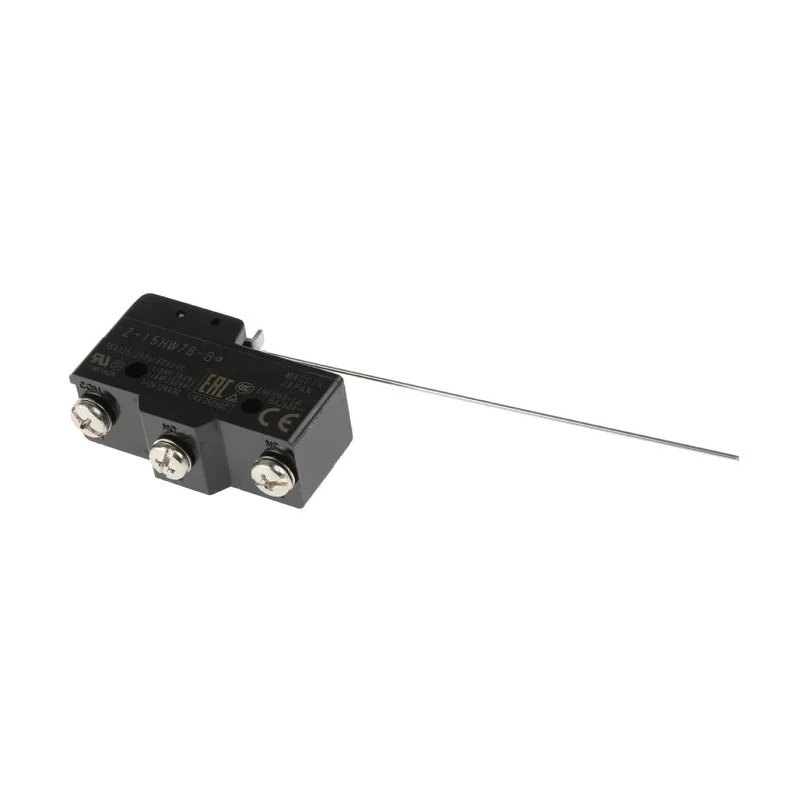

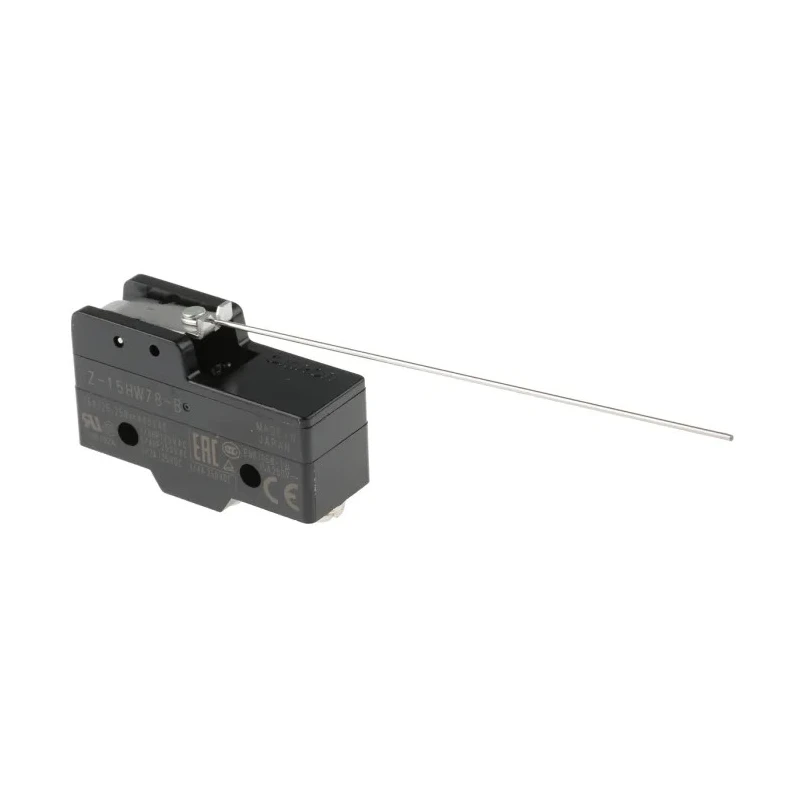

Omron Z-15HW78-B Lever Limit Switch is engineered with a thermosetting resin housing, providing high insulation and durable protection for precise control in automation systems. This SPDT (Single Pole Double Throw) switch operates at a maximum switching current of 15A and can handle voltages up to 500V AC, making it suitable for a variety of industrial electrical applications.

The lever actuator allows easy detection of object presence or position changes, enhancing machinery control and safety mechanisms. The snap action type contact increases switching speed and reliability under frequent operations.

This limit switch is designed for use in environments with temperatures ranging from -25°C to 80°C, ensuring stable performance even in harsh conditions. The IP00 rating indicates that the device is meant for use indoors or within protective housings where ingress of solid objects and liquids is minimal.

Dimensions of 49.2mm length, 32.4mm width, and 17.45mm depth allow compact integration in tight spaces, while the screw terminal connection type ensures secure and convenient wiring.

Certified by CCC, CE, CSA, and UL standards, this limit switch ensures compliance with international quality and safety norms. Its robust construction and mechanical life rating of 20 million operations guarantee long-term reliable performance in critical control and safety applications.

Features a lever actuator for precise operation control. SPDT contact configuration enables flexible circuit design. Thermosetting resin housing provides electrical insulation and durability. Capable of switching 15A current and voltages up to 500V AC.

Compact size and multi-directional mounting support diverse industrial assembly requirements. Suitable operating temperature range from -25°C to 80°C for reliability in varied environments. Screw terminal type facilitates secure connection and maintenance.

Mechanical life rating of 20 million operations ensures durability. Compliance with CCC, CE, CSA, and UL standards for quality assurance. Ideal for position feedback, machinery control, and safety interlock applications in industrial automation and manufacturing sectors.

Explore the range of Omron Limit Switches and related electrical automation components at EnvMart for your industrial and manufacturing needs.
