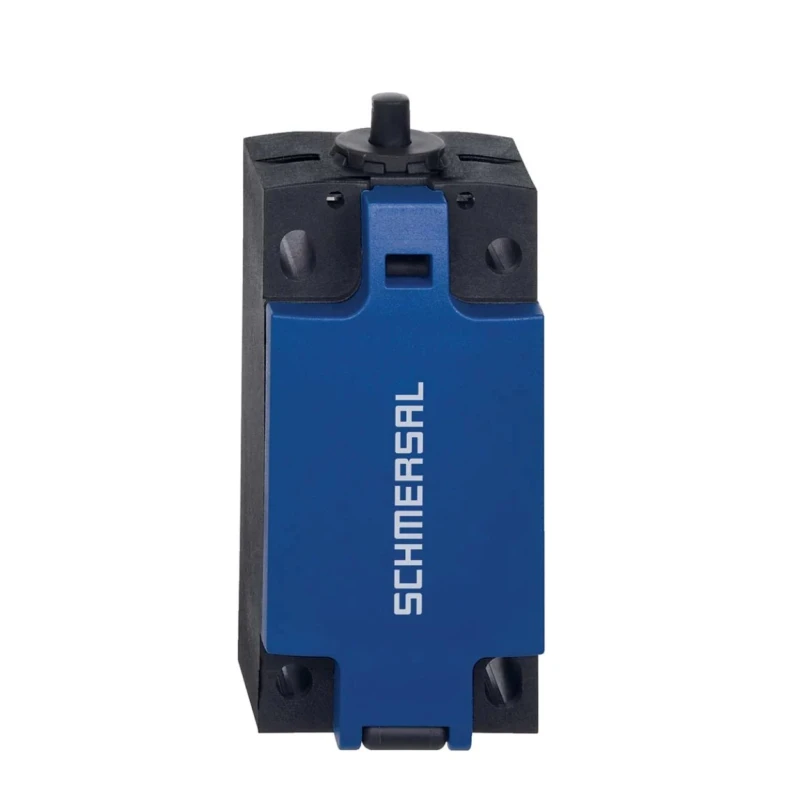

Schmersal PS316 Series Plunger Limit Switch, 1 NO/2 NC, IP66 IP67, Fibreglass Reinforced Thermoplastic Housing 103015411

Schmersal 103015411 PS316 Series Plunger Limit Switch is designed for accurate and reliable position sensing in industrial automation and electrical control systems. Featuring a plunger actuator type, this limit switch comes with a fibreglass reinforced thermoplastic housing that offers superior mechanical robustness and environmental protection.

The switch is rated with IP66 and IP67 protection classes, guaranteeing dust ingress protection and water resistance suitable for harsh industrial conditions. It has a contact configuration consisting of 1 normally open and 2 normally closed contacts using a snap action mechanism to ensure fast and reliable switching.

This device operates on a switching voltage of 240V AC and 24V DC and can handle a switching current of 3A, making it suitable for various control and safety applications. Its compact dimensions of 37 mm length and 41 mm width facilitate easy mounting in constrained spaces.

Mechanical durability is exceptional with a minimum mechanical life of 10 million operations and a B10d rating of 20 million operations for normally closed contacts, demonstrating the switch’s longevity in demanding scenarios. The operating temperature range of -30°C to 80°C further broadens its application scope within different climates and operational environments.

Certified to meet IEC 60947-5-1 and ISO 13849-1 industrial safety standards, the Schmersal PS316 limit switch complies with rigorous global quality and safety requirements. Moreover, its hazardous area certifications including CCC, cULus, and EAC enable use in regulated hazardous environments with confidence.

The switch’s terminal type is screw connection, ensuring secure and reliable wiring in installation. The conduit entry specification is 1 x M20 x 1.5, standardizing its integration within electrical enclosures.

Ideal for industrial, manufacturing, electrical control panels, and automation systems, the Schmersal PS316 Series Plunger Limit Switch delivers reliable performance and extended service life under challenging operational conditions.

Robust plunger actuator design suitable for precise limit switching applications. Housing constructed from durable fibreglass reinforced thermoplastic for enhanced resistance. Rated IP66 and IP67 for dust-tight and temporary immersion protection.

Contact configuration includes 1 normally open (NO) and 2 normally closed (NC) snap action contacts. Operates efficiently at 240V AC and 24V DC switching voltages. Mechanical life of at least 10 million operations ensuring long-term reliability.

Compact dimensions with length 37 mm and width 41 mm for versatile installation. Compliance with IEC 60947-5-1 and ISO 13849-1 safety and industrial standards. Rated switching current of 3 A with screw terminal connections for secure wiring.

Certified for use in hazardous areas under CCC, cULus, and EAC certifications. Wide operating temperature range from -30°C to 80°C enabling use in diverse environments. Explore more products in the Limit Switch category at EnvMart for reliable industrial automation components.
