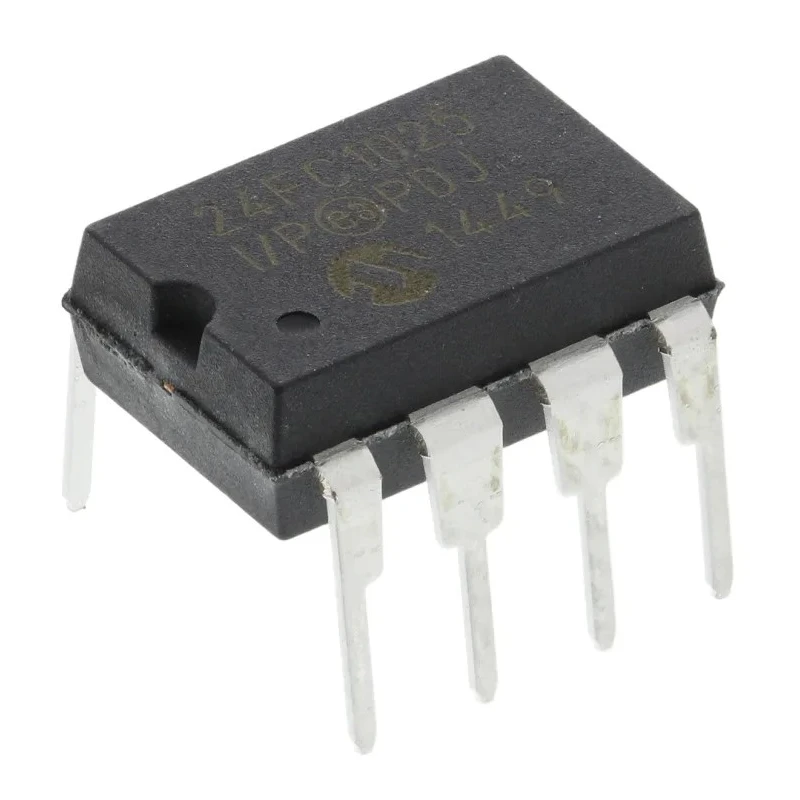

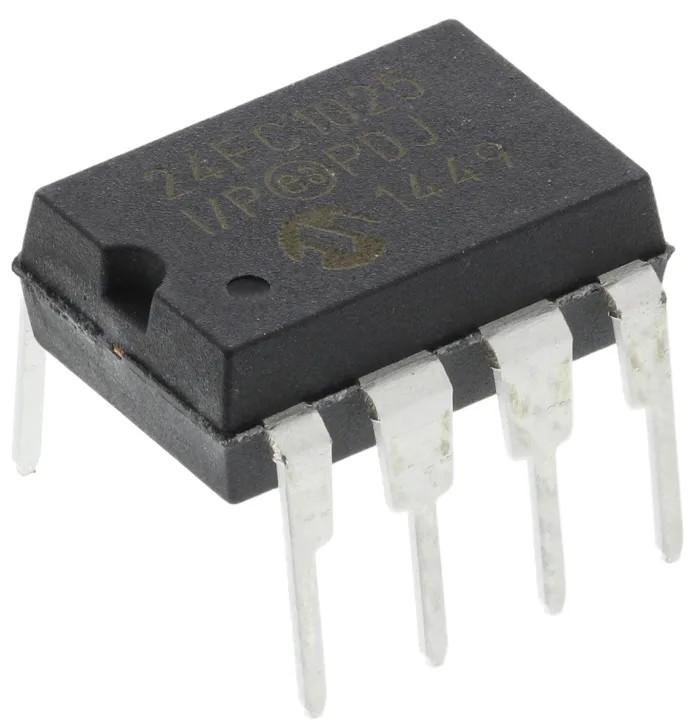

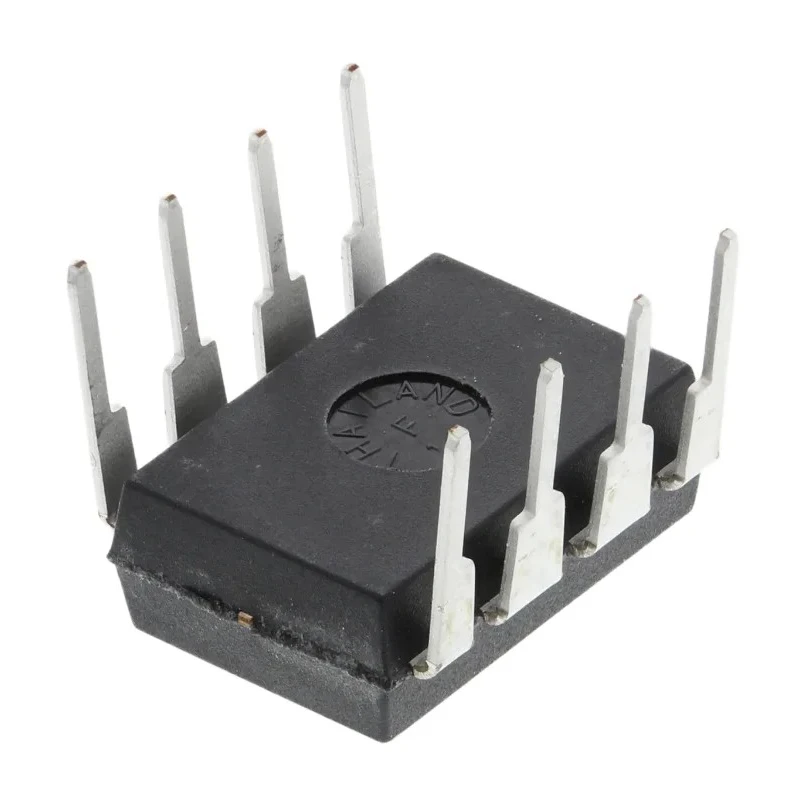

Microchip 1 MB Serial EEPROM 400 ns 8-Pin PDIP Serial-I2C 24FC1025-I/P

Microchip 24FC1025-I/P is a high-performance 1 MB Serial EEPROM designed for precision data storage applications with a fast 400 ns random access time. Packaged in a reliable 8-Pin PDIP form factor for through-hole mounting, this memory chip provides robust performance in various industrial, automotive, and electronics manufacturing environments.

Featuring a Serial I2C interface, the device enables simplified and efficient communication protocols compatible with a wide range of controllers. It operates at a maximum clock frequency of 1 MHz, ensuring rapid data transfer and real-time updating capabilities.

The memory organization is 128K x 8 bits, delivering a total capacity of 1 MB. It supports a broad supply voltage range from 1.7V up to 5.5V, allowing integration in diverse power environments and applications with stringent voltage requirements. Additionally, it operates reliably across an extended temperature range of -40°C to 85°C, suitable for automotive and industrial use cases.

The chip consumes a low supply current of 450 μA, supporting power-sensitive designs. It is qualified to automotive standard AEC-Q100, reflecting its capability for usage in high-reliability systems such as automotive electronics.

Compact device dimensions measuring 6.35 mm in width and 9.4 mm in length enable efficient PCB space utilization. With data retention rated for up to 200 years, it ensures long-lasting data preservation for critical applications.

Operates with Serial I2C interface for efficient communication. Maximum clock frequency of 1 MHz enables fast data transfers. Memory capacity of 1 MB organized as 128K x 8 bits. Wide operating voltage range from 1.7 to 5.5 V.

Robust operating temperature range of -40°C to 85°C. Low supply current of 450 μA for power efficiency. Meets automotive standard AEC-Q100 for reliability. Compact 8-Pin PDIP package for through-hole mounting. Long data retention of 200 years for secure storage.

This Microchip 24FC1025-I/P Serial EEPROM is ideal for embedded systems, automotive control units, instrumentation, and other industrial applications requiring reliable, high-capacity, and fast non-volatile memory solutions. Browse other semiconductor and memory chip options on EnvMart for additional components.
