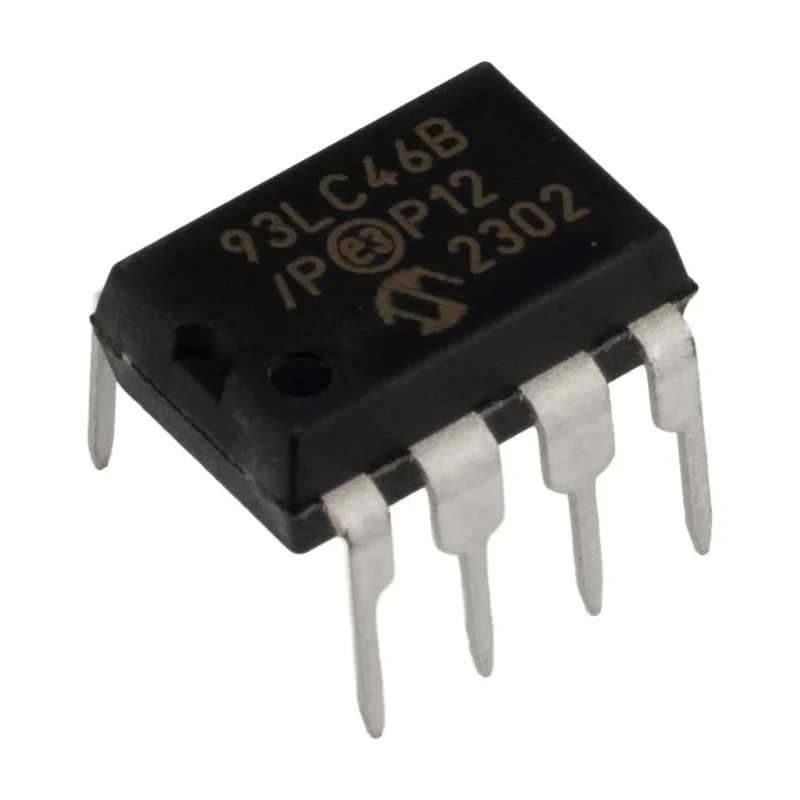

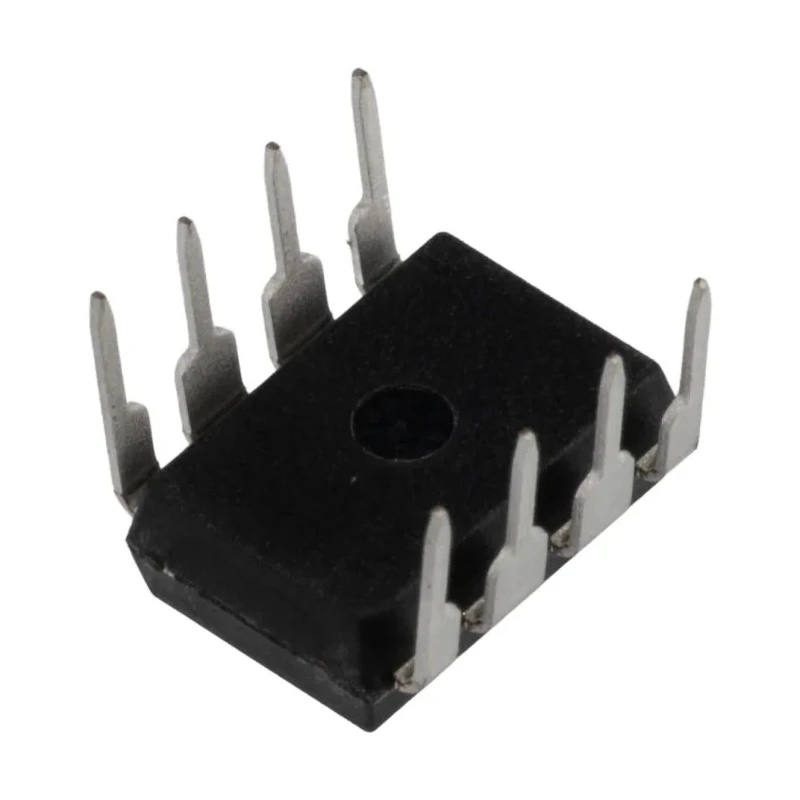

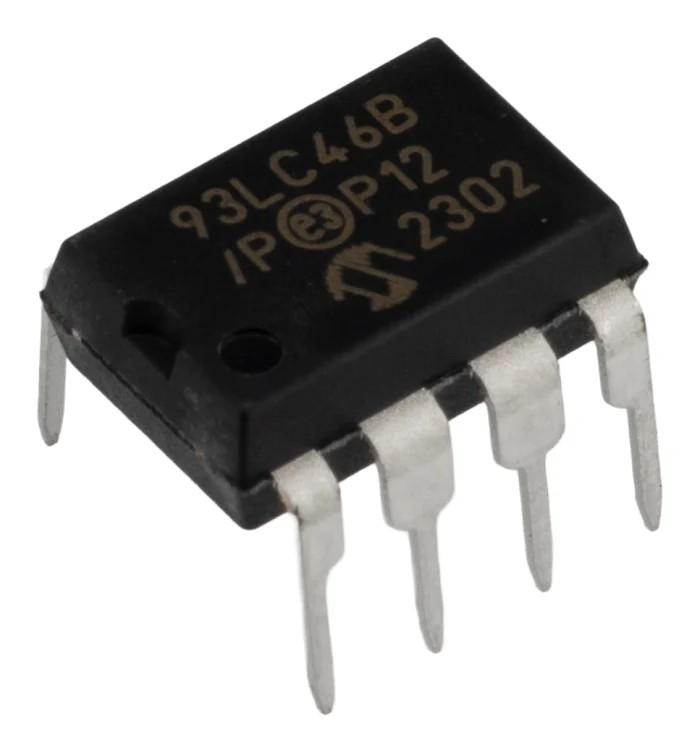

Microchip 1 kB Serial EEPROM 200 ns 8-Pin PDIP Serial-Microwire 93LC46B/P

Microchip 93LC46B/P 1 kB Serial EEPROM is a high-quality memory device designed for industrial and electronic applications requiring reliable non-volatile data storage. Featuring a 64 x 16 bit organization and a fast maximum random access time of 200 ns, this EEPROM supports efficient sequential read and write operations via a Serial-Microwire interface.

Its 8-pin PDIP package and through-hole mounting make it compatible with standard PCB layouts, suitable for prototyping and production environments. The device supports a wide voltage range from 2.5V to 5.5V, ensuring robustness in varied power supply conditions. Its operational temperature range from 0°C to 70°C covers typical commercial environments.

The EEPROM offers more than 200 years of data retention and up to 1,000,000 self-timed erase/write cycles, accompanied by industry-standard features such as automatic erase all before write all and power-on/off data protection circuitry. This makes it ideal for applications in embedded systems, consumer electronics, automotive electronics (non-automotive standard certified), and industrial control systems.

Low supply current of 1 mA contributes to energy efficiency, while the device status signal (Ready/Busy) aids in system synchronization. The Microchip 93LC46B/P is part of a family of Microwire serial EEPROMs designed to meet demanding memory requirements with compact packaging.

Provides 1 kB memory size organized as 64 x 16 bits. Operates with Serial-Microwire interface for efficient communication. Maximum clock frequency of 2 MHz ensures fast data access. Supports supply voltage from 2.5V to 5.5V enabling versatile use.

Data retention exceeds 200 years ensuring long-term reliability. Through hole mount type with 8-pin PDIP package for easy PCB integration. Operates within temperature range from 0°C to 70°C for standard applications. Consumes low supply current of 1 mA for energy efficiency.

Equipped with automatic erase and write cycles, supporting 1,000,000 erase/write cycles.

This serial EEPROM is widely used in industrial, manufacturing, communications, and electronics design projects that demand non-volatile memory with enduring reliability. Browse similar EEPROM components and Microchip brand products on EnvMart for complete solutions.
