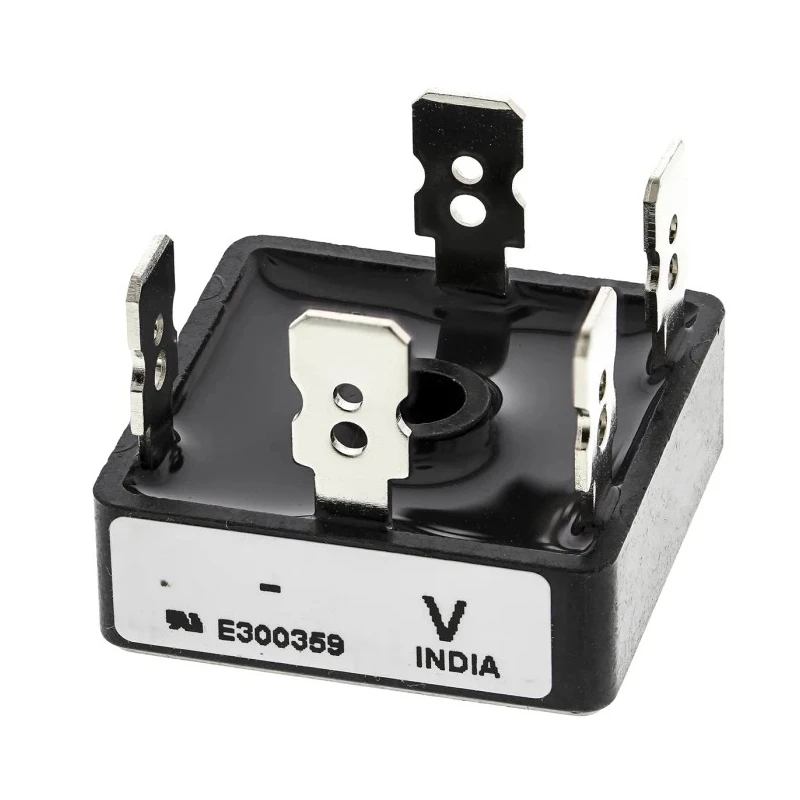

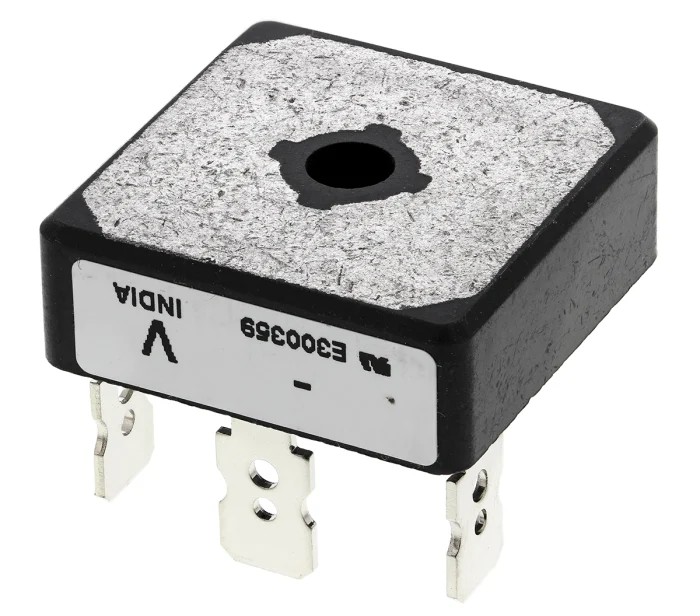

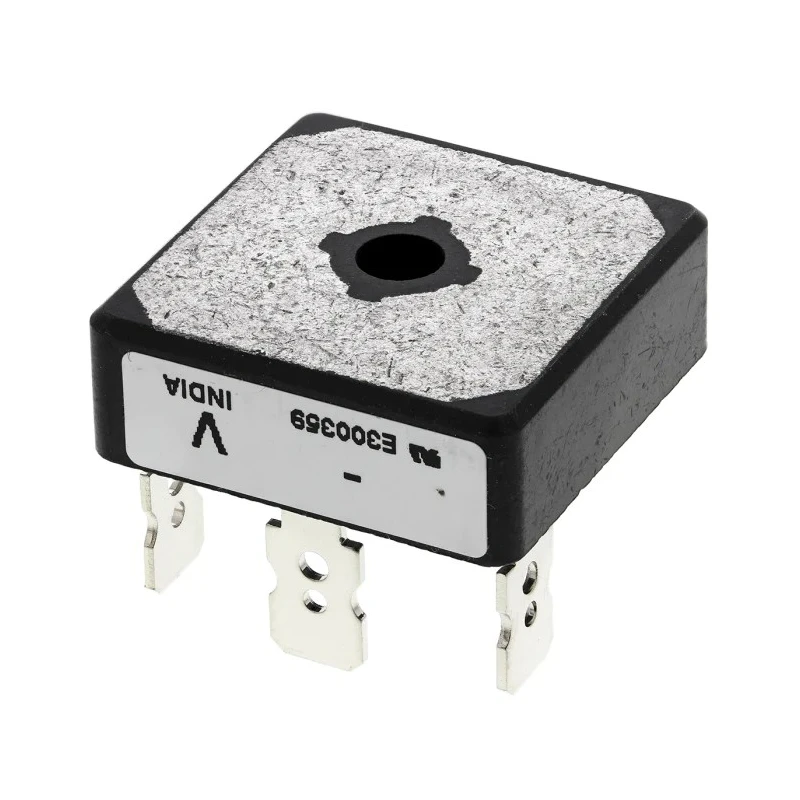

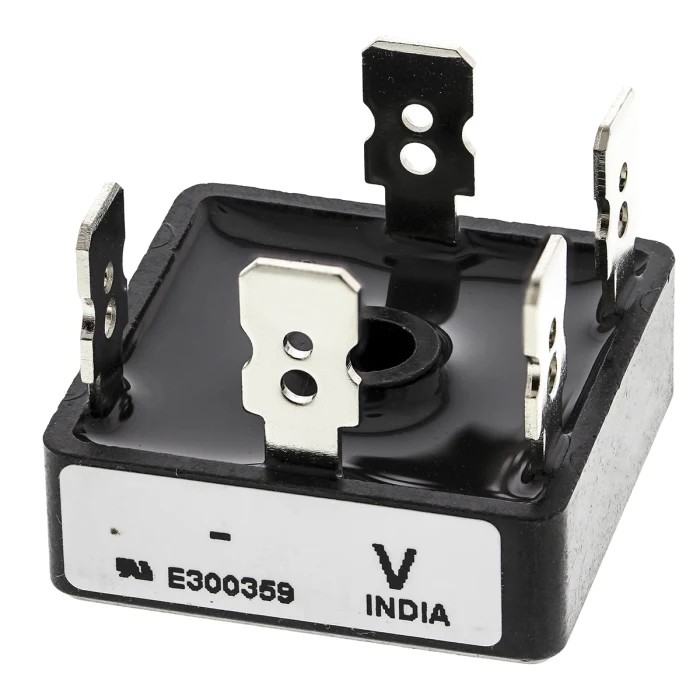

Vishay 1200 V 35 A 3-Phase Single Configuration Bridge Rectifier VS-36MT120

The Vishay VS-36MT120 is a high-performance bridge rectifier designed for efficient and reliable operation in full-wave rectification of three-phase AC currents to DC output. It supports a peak reverse repetitive voltage of 1200 V and a forward current rating of 35 A, making it ideal for general purpose and instrumentation use in industrial, laboratory, HVAC, manufacturing, and commercial applications.

This device features a compact D-63 package type with a size of 28.5 mm by 28.5 mm by 10 mm, integrating universal three-way terminals that allow push-on, wrap around, or solder mounting to accommodate various assembly requirements. The package provides high thermal conductivity and an electrically insulated case, fostering excellent power-to-volume ratio.

The bridge rectifier can withstand a peak non-repetitive forward surge current of 500 A, ensuring robustness against transient events. It exhibits a low peak forward voltage drop of 1.19 V and a minimal peak reverse current of 200 μA, contributing to efficient power conversion with reduced heat generation.

Operating temperature range spans from -55°C to a maximum of 150°C, supporting demanding environmental conditions. Nickel-plated terminals are solderable with lead-free solder alloys such as Sn/Ag/Cu (SAC305) at temperatures between 260°C and 275°C, complying with modern manufacturing standards.

Compact and encapsulated design for durability and thermal management. Three-phase, single configuration with 5 pins. Ideal for industrial and instrumentation applications. UL E300359 approved, ensuring safety and quality.

Origin: India.

This bridge rectifier is part of the Vishay VS-36MT series, well-regarded for industrial and consumer-level reliability. Suitable for use in power electronics, motor drives, and control systems. Explore other Vishay semiconductor components and Bridge Rectifiers on EnvMart for your electronics projects and manufacturing needs.
