onsemi Voltage Level Translator Buffer & Line Driver 2 Octal Buffer/Line Driver 20-Pin SOIC 74ACT244SC

Free Delivery in India | Lowest Global Shipping Charges

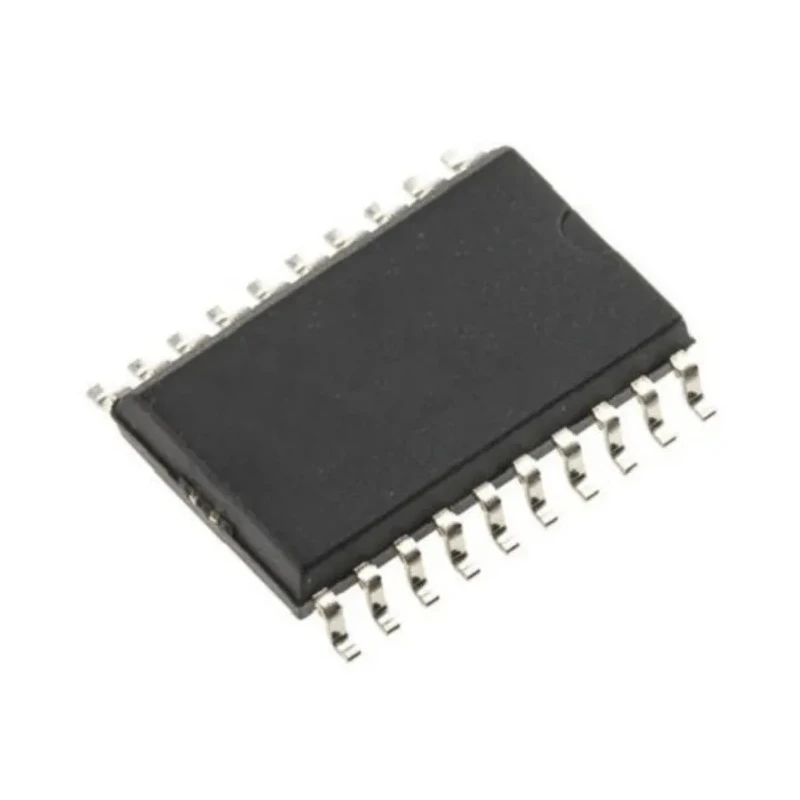

onsemi Voltage Level Translator Buffer & Line Driver 2 Octal Buffer/Line Driver 20-Pin SOIC 74ACT244SC

Name: onsemi Voltage Level Translator Buffer & Line Driver 2 Octal Buffer/Line Driver 20-Pin SOIC 74ACT244SC
Brand: onsemi
SKU: 157564
Price: 0.82 USD
Availability: InStock



Category Voltage Level Shifter Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.35mm
Length	13mm
Model	74ACT244SC
Mount Type	Surface
Output type	3 State
Series	74ACT244
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Pin Count	20
Number of Elements per Chip	2
Maximum Supply Voltage	5.5V
Logic Family	ACT
Logic Function	Buffer & Line Driver
Minimum Supply Voltage	4.5V
Maximum Propagation Delay Time @ CL	10ns
Direction Type	Bi-Directional
Maximum Low Level Output Current	24mA
Translation	Octal Buffer/Line Driver

Key Features

Equipped with TTL-compatible inputs suitable for logic level translation.
Maximum propagation delay time of 10 nanoseconds ensures fast signal processing.
Capable of sourcing and sinking up to 24 mA output current for both high and low levels.
Operates within a supply voltage range of 4.5 V to 5.5 V for stable performance.
Designed with robust operating temperature range from -40°C to +85°C for industrial reliability.
Surface-mount SOIC package measures 13 mm in length and 2.35 mm in height for compact PCB integration.
Reduces ICC and IOZ power consumption by 50% compared to earlier models.
General purpose device suitable for diverse electronic and industrial applications.

Product Description

onsemi 74ACT244SC Voltage Level Translator Buffer & Line Driver is a high-performance octal buffer and line driver integrated circuit housed in a 20-pin SOIC package. Designed to efficiently perform voltage level translation and buffering, this bi-directional device facilitates logic data transmission and bus driving in advanced electronic systems.

The device features TTL-compatible inputs tailored to provide reliable signal compatibility and a maximum propagation delay time of only 10 nanoseconds, assuring high-speed switching capability.

Operating over a supply voltage range of 4.5 to 5.5 volts and accommodating ambient temperatures from -40°C to 85°C, the 74ACT244SC is optimized for stable operation in demanding environments. Its compact SOIC surface-mount package, with dimensions of 13 mm length and 2.35 mm height, allows for dense printed circuit board layouts and convenient integration into industrial and commercial electronic assemblies.

This IC’s design significantly reduces ICC and IOZ currents by 50%, enhancing energy efficiency and overall performance in electronic circuits. Bi-directional voltage level translator and buffer. TTL-compatible inputs for reliable interfacing.

3-state output buffers for versatile bus control. Low propagation delay of 10 ns ensures quick response. Output current capacity of 24 mA for both sourcing and sinking. Stable operation across -40°C to 85°C temperature range.

Compact 20-pin SOIC package measuring 13 mm x 2.35 mm. Reduced power consumption IC and IOZ by half compared to prior designs. Widely suitable for semiconductor and industrial electronic applications.

The onsemi 74ACT244SC stands as a reliable and versatile buffer and line driver IC aimed at enhancing circuit density and performance in electronic designs. It is integral to sectors including industrial control, computing hardware, and communication electronics.

Explore the extensive range of voltage level translators and buffer ICs available to meet your design and manufacturing needs on EnvMart.

Explore more products in our Voltage Level Shifter category.
