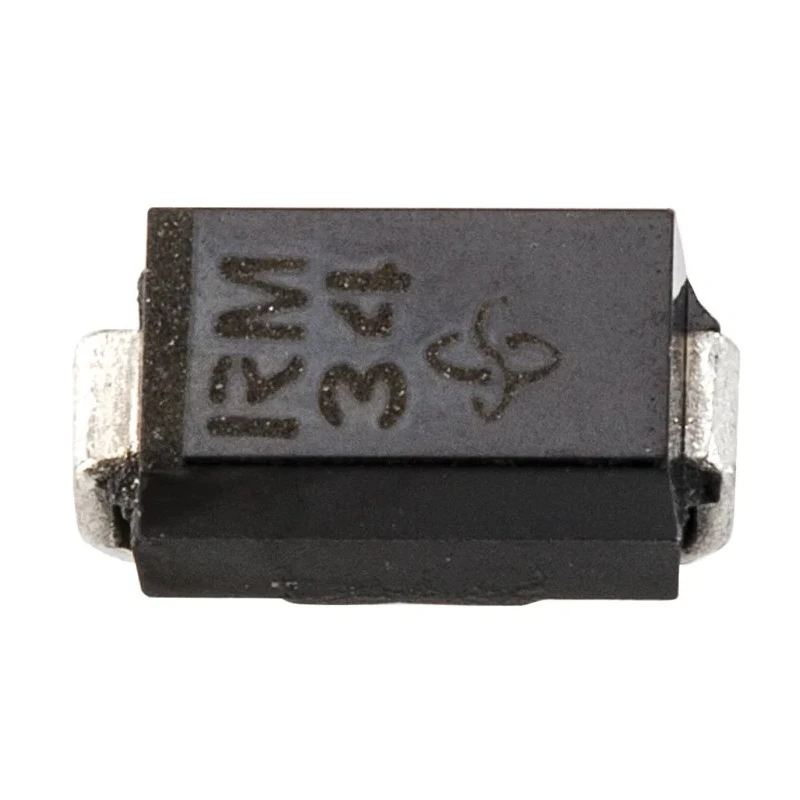

Vishay 1 kV 1 A General Purpose Fast Recovery Diode Surface Mount DO-214BA RGF1M-E3/67A

Vishay RGF1M-E3/67A is a fast recovery general purpose diode with a maximum continuous forward current of 1 A and a peak reverse repetitive voltage rating of 1 kV. It comes in an industry-standard DO-214BA surface mount package with compact dimensions (4.75 mm length, 2.9 mm width, 2.74 mm height), suitable for high-density PCB designs. This diode is optimized for efficient and reliable switching applications with a peak reverse recovery time of 500 ns and a maximum forward voltage drop of 1.3 V, reducing power loss during conduction.

The device supports a wide operating temperature range from -65°C up to 175°C, making it suitable for demanding industrial and automotive environments. It withstands high surge currents up to 30 A allowing it to tolerate transient spikes. The 2-pin configuration simplifies mounting and circuit integration. Vishay ensures the diode conforms to the AEC-Q101 automotive standard, providing enhanced reliability for automotive electronic systems.

This general purpose diode is ideal for use in power conversion, rectification circuits, and protection circuits within industrial automation, automotive electronics, and consumer electronics. Its surface mount form factor enables easy automated assembly, improving production efficiency and reliability.

Maximum continuous forward current of 1 ampere ensures dependable operation under load. Peak reverse voltage of 1 kilovolt protects circuits from high voltage spikes. Fast recovery time of 500 nanoseconds enhances switching efficiency.

Compact DO-214BA surface mount package dimensions allow space-saving PCB design. Forward voltage drop of 1.3 volts minimizes conduction losses. Wide operating temperature range for stable performance in harsh environments.

High surge current capability supports transient loads. 2-pin single diode configuration simplifies circuit design. Automotive AEC-Q101 certification guarantees suitability for automotive applications. High reliability diode for general purpose rectifier and switching applications.

This diode is a robust option for industrial, automotive, and consumer electronic circuits requiring reliable rectification and fast switching. Visit EnvMart for related diode components and Vishay products.
