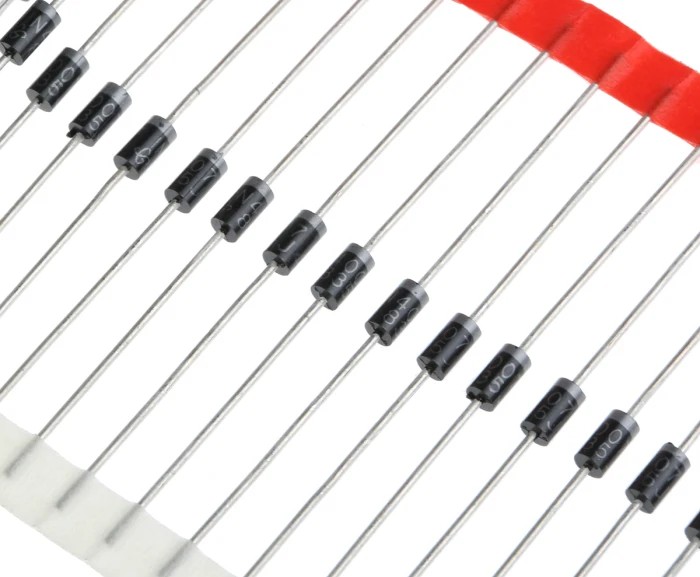

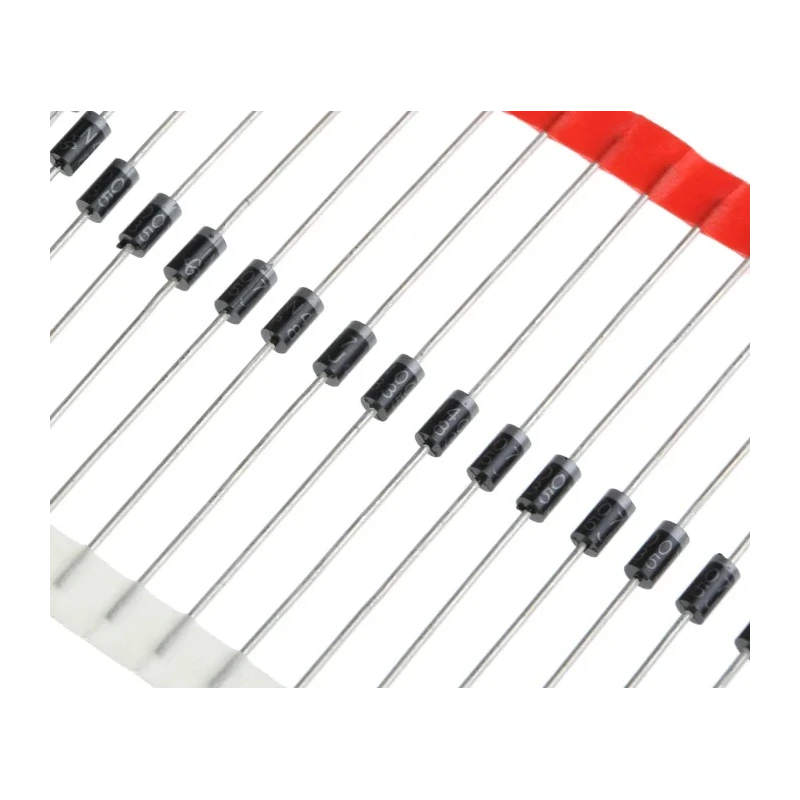

Vishay 1 kV 1 A General Purpose Diode 2-Pin DO-204AL 1N4007-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 2.7mm |
| Brand | Vishay |
| Height | 5.2mm |
| Length | 2.7mm |
| Model | 1N4007-E3/54 |
| Width | 55.6mm |
| Mount Type | Through Hole |
| Series | 1N4007 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 45A |
| Maximum Forward Voltage Vf | 1.1V |
| Vishay 1N4007-E3/54, Diode, 1000V 1A, 2-Pin DO-204ALBrand | Vishay |
Key Features
- Low forward voltage drop for efficient power rectification.
- Handles maximum continuous forward current of 1 Ampere.
- Maximum peak reverse repetitive voltage of 1000 Volts.
- High surge current capability of 45 Amperes for transient loads.
- Operating temperature range from -50°C to 150°C.
- Comes in a single diode configuration with 2 pins.
- Plastic DO-204AL (DO-41) package with tin-plated leads ensures reliable mounting.
- Ideal for rectification in power supplies, inverters, and converters.
Product Description
Vishay 1N4007-E3/54 General Purpose Diode is a robust semiconductor device designed for use in power rectification applications requiring up to 1 kV and 1 A ratings. It features a DO-204AL package suitable for through hole mounting, supporting general purpose electronic circuits.
The diode offers a low forward voltage drop of 1.1 V, enabling efficient power conversion with minimal energy loss. It withstands continuous forward currents up to 1 Ampere and transient surge currents up to 45 Amperes, making it reliable under stressful conditions.
Operating between temperature extremes of -50°C and 150°C, it is suitable for industrial, consumer electronics, and automotive power conversion systems. The diode's peak reverse repetitive voltage rating of 1000 V ensures protection against high voltage spikes.
The 1N4007 series diodes excel in applications such as rectifiers in power supplies, inverters, converters, and as freewheeling Diodes. Its plastic body with tin-plated leads simplifies PCB assembly and enhances durability.
Low forward voltage drop for efficient conduction. High surge capability ensures durability. Wide operating temperature range supports harsh environments. Plastic DO-204AL package for easy mounting. General purpose rectification suitable for multiple applications.
Explore the Vishay range and related semiconductor products at EnvMart for reliable electronic components built to industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 1 Ampere.
This model has a peak reverse repetitive voltage rating of 1000 Volts.
It can handle a peak non-repetitive forward surge current of 45 Amperes.
The operating temperature range is from -50°C to 150°C.
The maximum forward voltage drop is 1.1 Volts.
It comes in a plastic DO-204AL package suitable for through hole mounting.
This diode has a pin count of 2.
It is suitable for rectification in power supplies, inverters, and converters.
The diameter is 2.7 mm and the height is 5.2 mm.
The peak reverse current is rated at 5 μA.
The length is 55.6 mm and the width is 2.7 mm.
The country of origin for this diode is China.
