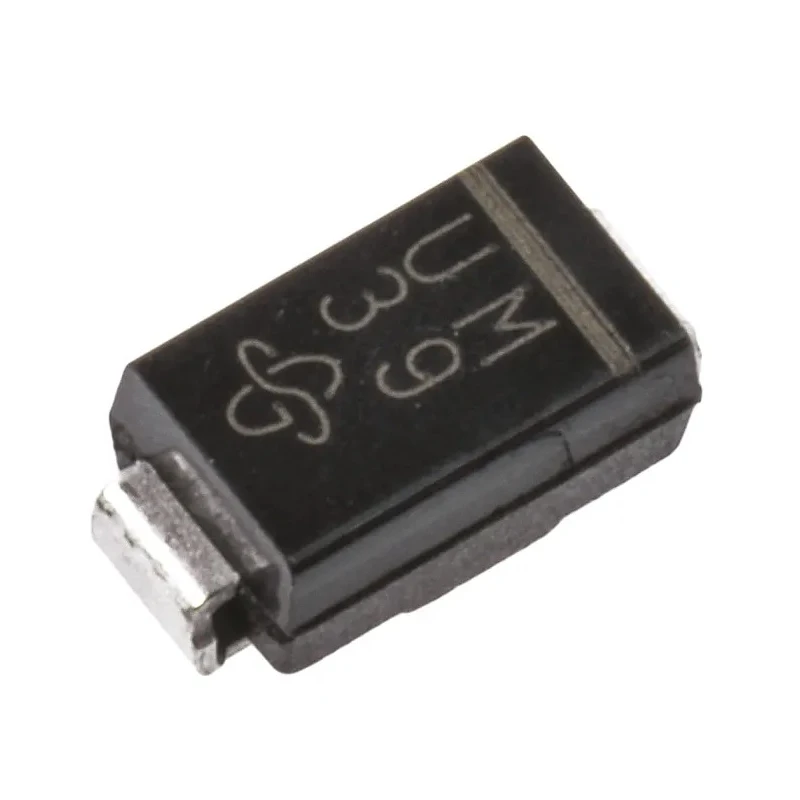

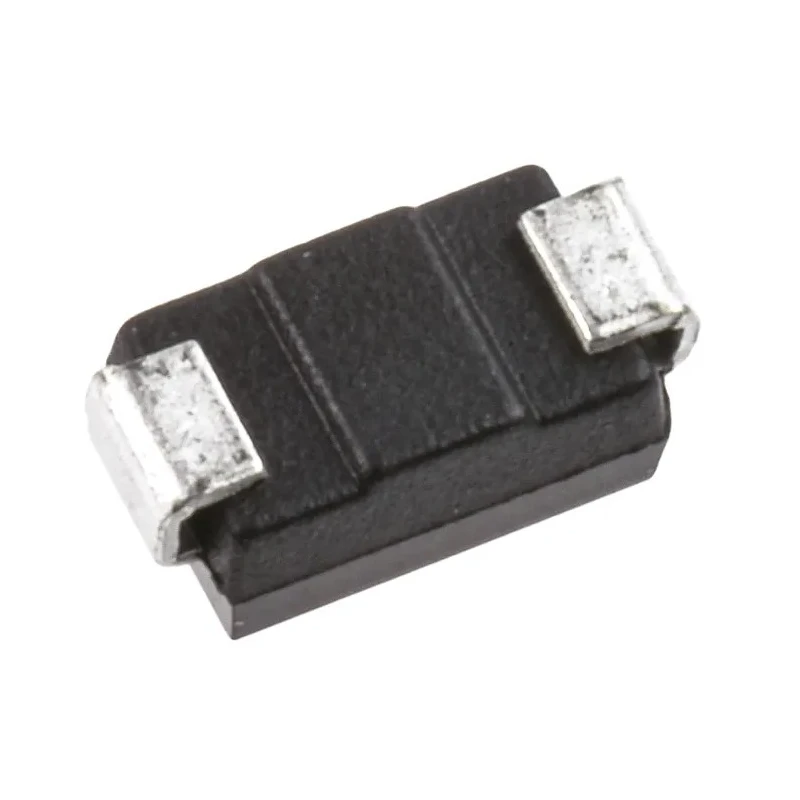

Vishay 1 kV 1 A General Purpose Diode Surface Mount 2-Pin DO-214AC US1M-E3/61T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.09mm |
| Length | 4.5mm |
| Model | US1M-E3/61T |
| Width | 2.79mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.7V |
| Peak Reverse Recovery Time trr | 75ns |
| HY Electronic Corp 1 kV 1 A Diode General Purpose 2-Pin DO-214AC S1MBrand | HY Electronic Corp |
| Diode, Rectifier, SMT, US1KBrand | Vishay |
| Vishay 1000V 1A, Silicon Junction Diode, 2-Pin DO-214AC US1MBrand | Vishay |
| Vishay 1 kV 1 A Diode General Purpose 2-Pin DO-214ACBrand | Vishay |
Key Features
- Maximum continuous forward current of 1 ampere ensures reliable operation in power applications.
- Peak reverse repetitive voltage rating of 1 kilovolt supports high voltage blocking capability.
- Ultrafast switching with a peak reverse recovery time of 75 nanoseconds reduces switching losses.
- Automotive grade with AEC-Q101 qualification for robust performance in vehicle electronics.
- Matte tin plated leads are solderable per J-STD-002 and JESD 22 B-102 standards.
- Glass passivated pallet chip junction enhances reverse voltage resistance and decreases leakage risk.
- Operates over a wide temperature range from -55°C to 150°C for versatile industrial environments.
- Low peak forward voltage of 1.7 V minimizes power dissipation during conduction.
Product Description
Vishay US1M-E3/61T is a general purpose diode specifically engineered for high efficiency and reliability in power electronic applications. This surface mount diode comes in a compact DO-214AC 2-pin package with dimensions of 4.5 mm length, 2.79 mm width, and 2.09 mm height, making it ideal for automated pick-and-place assembly on printed circuit boards.
The diode supports a maximum continuous forward current of 1 ampere and can withstand a peak reverse repetitive voltage of up to 1 kilovolt, making it suitable for blocking high voltages in rectification circuits. Its ultrafast switching characteristics, with a peak reverse recovery time of 75 nanoseconds, significantly reduce switching losses and improve overall efficiency.
Built with a glass passivated pallet chip junction, this diode offers enhanced reverse voltage resistance and minimizes leakage currents, thereby improving device longevity. The matte tin plated leads comply with industry soldering standards, ensuring secure solder joints.
Operating safely from -55°C up to a maximum of 150°C, the diode is well suited for harsh industrial, automotive, telecommunications, and consumer electronics applications. The AEC-Q101 automotive qualification certifies the diode's robustness for use in automotive electronic systems.
This Vishay diode is especially effective in switching mode inverters and converters found in computing and telecommunication equipment. It meets MSL 1 moisture sensitivity level standards, providing resilience in various manufacturing and environmental conditions.
Maximum continuous forward current of 1 A supports robust power handling. 1 kV peak reverse voltage rating protects the circuit in high voltage environments. Ultrafast switching with 75 ns recovery time minimizes power losses.
Compact DO-214AC package enables efficient automated assembly. Automotive grade with AEC-Q101 compliance for vehicle electronics. Glass passivated chip construction reduces leakage and enhances reliability. Wide operating temperature range from -55°C to 150°C suits diverse applications.
MSL 1 rating confirms moisture robustness during solder reflow processes. Low forward voltage drop of 1.7 V improves power efficiency. Solderable matte tin leads meet J-STD-002 and JESD 22 B-102 standards.
The Vishay US1M-E3/61T diode is an essential component in industrial, automotive, telecommunications, and consumer electronics sectors due to its reliable performance and efficient electrical characteristics. Browse similar Schottky Diodes & Rectifiers and other semiconductor components at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay US1M-E3/61T diode is 1 ampere.
This model has a peak reverse repetitive voltage rating of 1 kilovolt, making it suitable for high voltage applications.
The dimensions of the DO-214AC package are 4.5 mm in length, 2.79 mm in width, and 2.09 mm in height.
The peak reverse recovery time for the Vishay US1M-E3/61T is 75 nanoseconds, which helps reduce switching losses.
It operates over a wide temperature range from -55°C to 150°C, suitable for various industrial environments.
Yes, the diode is automotive grade and complies with AEC-Q101 qualification for robust performance in vehicle electronics.
The Vishay US1M-E3/61T is a surface mount diode, designed for automated pick-and-place assembly on printed circuit boards.
The maximum forward voltage drop is 1.7 volts, which minimizes power dissipation during conduction.
The peak non-repetitive forward surge current rating for this model is 30 amperes.
The peak reverse current for the Vishay US1M-E3/61T is specified at 10 microamperes.
This model features a single diode configuration, making it suitable for general purpose applications.
The leads of the Vishay US1M-E3/61T are matte tin plated, compliant with J-STD-002 and JESD 22 B-102 standards for solderability.
