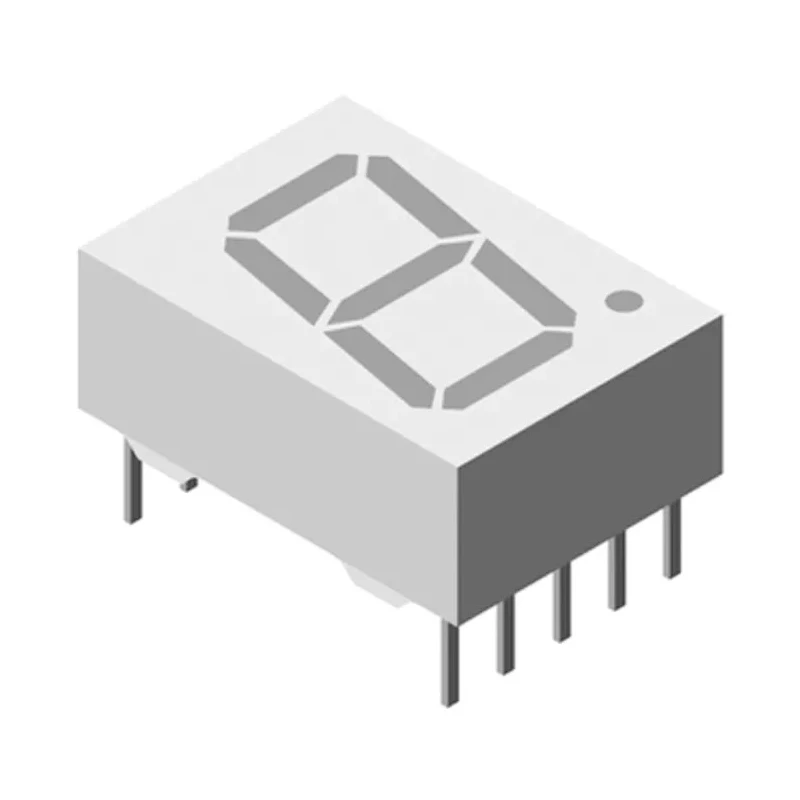

Vishay 1 Digit 7 Segment LED Display Green Anode Through Hole 13mm Height TDSG5150
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Vishay |
| Model | TDSG5150 |
| Mount Type | Through Hole |
| Character height | 13mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 17.5mm |
| External Height | 7mm |
| Power Dissipation | 550mW |
| Luminous Intensity | 9.5mcd |
| Standards/Approvals | CE, IEC, RoHS, EN |
| LED Colour | Green |
| Dominant Wavelength | 575nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 25mA |
| Number of Characters | 1 |
| Character Width | 7.4mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- This LED display is designed for single-digit numeric output.
- It features a 7-segment configuration with green LED color.
- The common connection type is anode suitable for various electronic applications.
- Character height is 13 mm with a character width of 7.4 mm for clear visibility.
- Mounting is through-hole offering sturdy mechanical support.
- Luminous intensity is 9.5 millicandela, providing bright indication.
- Operating temperature range is -40°C to +85°C, suitable for industrial environments.
- Forward voltage is approximately 2 V with a forward current rated at 25 mA.
Product Description
Vishay TDSG5150 is a precision single digit 7 segment LED display designed for electronic components and display systems requiring bright, reliable numeric indicators. The device features a green LED color with an anode common connection and is mounted through hole for secure placement on printed circuit boards.
The display has a character height of 13 mm and width of 7.4 mm, making it highly visible for a variety of applications including industrial equipment, measurement instruments, instrumentation panels, and electronic devices.
It operates efficiently with a forward voltage of 2 V and forward current of 25 mA, and dissipates 550 mW of power. Capable of operating in temperatures from -40°C to +85°C, it is suitable for harsh industrial or laboratory environments. The luminous intensity of 9.5 mcd ensures clear numeric readout under various lighting conditions.
The decimal point orientation is to the right side allowing for standard numeric display formatting. The product complies with CE, IEC, RoHS, and EN standards, ensuring quality and safety for electronic manufacturing and commercial applications.
This Vishay 7 segment LED display is ideal for integration into electronic display modules, instrumentation readouts, and custom digital displays within the electronics and electrical industries.
This LED display is designed for single-digit numeric output. It features a 7-segment configuration with green LED color. The common connection type is anode suitable for various electronic applications. Character height is 13 mm with a character width of 7.4 mm for clear visibility.
Mounting is through-hole offering sturdy mechanical support. Luminous intensity is 9.5 millicandela, providing bright indication. Operating temperature range is -40°C to +85°C, suitable for industrial environments. Forward voltage is approximately 2 V with a forward current rated at 25 mA.
Power dissipation is 550 mW ensuring efficient performance. The decimal point is oriented to the right side for standard digital display format. Browse more Vishay LED Displays and electronic components at EnvMart for reliable and high-quality industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this model is 9.5 millicandela, providing bright indication for clear visibility.
It operates efficiently within a temperature range of -40°C to +85°C, making it suitable for harsh industrial environments.
The forward voltage is approximately 2 V with a forward current rated at 25 mA.
This model utilizes a through-hole mounting type, providing sturdy mechanical support on printed circuit boards.
The character height is 13 mm and the character width is 7.4 mm, ensuring clear visibility for numeric output.
This LED display complies with CE, IEC, RoHS, and EN standards, ensuring quality and safety for electronic applications.
The LED color of this model is green, which is suitable for various electronic applications.
It has a power dissipation of 550 mW, ensuring efficient performance during operation.
The decimal point is oriented to the right side, allowing for standard numeric display formatting.
The external width is 17.5 mm and the external height is 7 mm, which are important for fitting into electronic designs.
This model features a 7-segment configuration, designed for single-digit numeric output.
The dominant wavelength of the green LED in this display is 575 nm.
