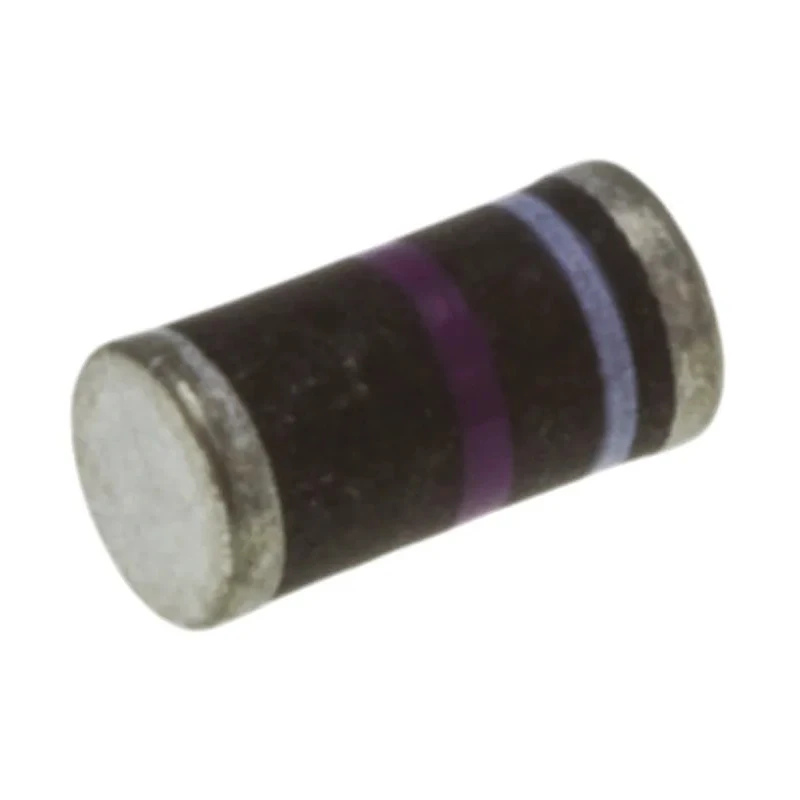

Vishay 1 kV 1 A General Purpose 2-Pin DO-213AB Diode GL41M-E3/96

Name: Vishay 1 kV 1 A General Purpose 2-Pin DO-213AB Diode GL41M-E3/96
Brand: Vishay
SKU: 127081
Price: 0.34 USD
Availability: InStock



Category Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	2.67mm
Brand	Vishay
Height	2.67mm
Length	5.2mm
Model	GL41M-E3/96
Width	2.67mm
Mount Type	Surface
Series	GL41x
Maximum Operating Temperature	175°C
Package Type	DO-213AB
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.2V
Semikron 1000V 1A, Silicon Junction Diode, 2-Pin DO-213AB SM4007Brand	Semikron
Vishay 400V 1A, Diode, 2-Pin DO-213AB GL41G-E3/96Brand	Vishay
Vishay 1600 V 1 A Diode General Purpose 2-Pin DO-213AB GL41Y-E3/96Brand	Vishay

Key Features

Surface mount type suitable for compact PCB layouts.
Diode configuration is single with general purpose rectifier characteristics.
Maximum continuous forward current is 1 ampere.
Peak reverse repetitive voltage is rated at 1000 volts.
Peak forward voltage drop is 1.2 volts ensuring efficient conduction.
Operating temperature range from -65°C to 175°C for stability in harsh environments.
Pin count of 2 pins in industry-standard DO-213AB footprint.
Peak non-repetitive forward surge current of 30A for transient tolerance.

Product Description

Vishay GL41M-E3/96 is a general purpose diode designed for reliable rectification in industrial and electronic applications. It is configured as a single diode in a compact DO-213AB surface mount package optimized for automated assembly processes. The diode supports a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 1000 volts, making it suitable for moderate power handling.

Operating temperature ranges from -65°C up to 175°C enable deployment in severe environmental conditions, including automotive and industrial sectors. The peak forward voltage drop of 1.2 V ensures efficient operation with minimal conduction losses. The device withstands non-repetitive surge currents up to 30 amperes, safeguarding circuits against transient events.

Compliance with AEC-Q101 automotive standards confirms the device's ruggedness for vehicle electronics. Its physical footprint of 5.2 mm length and 2.67 mm width and height supports compact circuit designs. Typical applications include power supplies, inverters, and general rectification tasks in industrial, commercial, and automotive electronics.

Surface mount 2-pin DO-213AB package suitable for PCB assembly. Capable of 1 A continuous forward current and 1 kV reverse voltage. Wide operating temperature from -65°C to 175°C for harsh environments. Peak surge current rating of 30 A enhances transient robustness.

Meets automotive quality standards (AEC-Q101). Compact size supports efficient PCB space usage. General purpose rectifier diode for various power electronics applications. High reliability and durability under industrial conditions.

This Vishay diode is an excellent choice for engineers requiring dependable rectification with high voltage and current ratings in compact assemblies. It is commonly used in industrial power converters, automotive circuits, and electronic control units.
