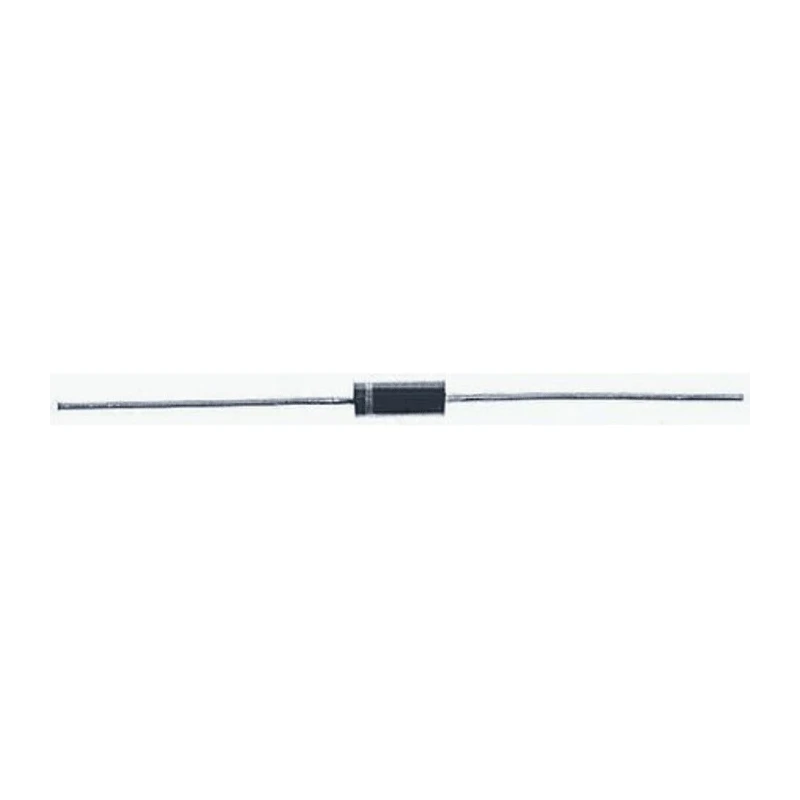

Vishay 1 kV 1 A General Purpose Diode Through Hole Package DO-204AL 1N4948GP-E3/54

Free Delivery in India | Lowest Global Shipping Charges

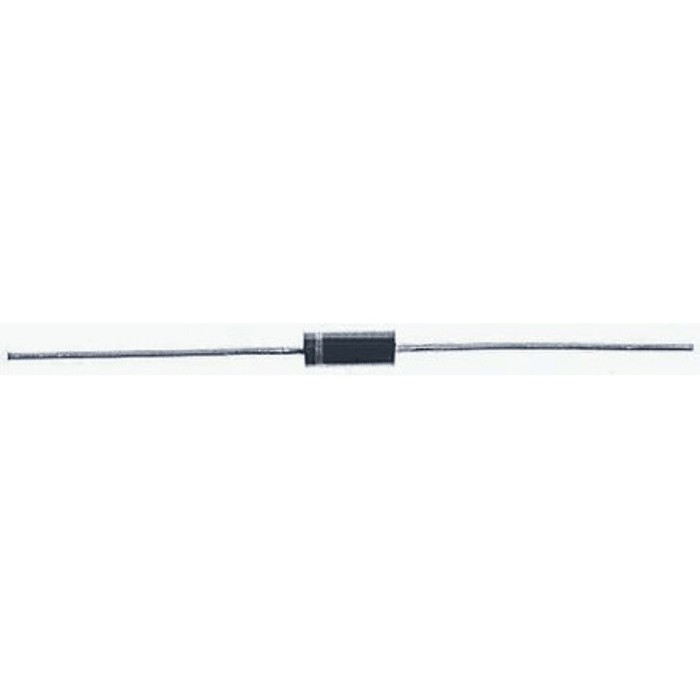

Vishay 1 kV 1 A General Purpose Diode Through Hole Package DO-204AL 1N4948GP-E3/54

Name: Vishay 1 kV 1 A General Purpose Diode Through Hole Package DO-204AL 1N4948GP-E3/54
Brand: Vishay
SKU: 201116
Price: 0.29 USD
Availability: InStock



Category Discrete Semiconductors Brand Vishay Condition New

Specifications

Country of Origin	China
Diameter	2.7mm
Brand	Vishay
Height	2.7mm
Length	5.2mm
Model	1N4948GP-E3/54
Width	2.7mm
Mount Type	Through Hole
Series	1N4948GP
Maximum Operating Temperature	175°C
Package Type	DO-204AL
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	1μA
Peak Non-Repetitive Forward Surge Current Ifsm	25A
Maximum Forward Voltage Vf	1.3V
Peak Reverse Recovery Time trr	500ns

Key Features

This diode supports a maximum continuous forward current of 1 Ampere.
It features a peak repetitive reverse voltage rating of 1 kV.
The package type is DO-204AL with a two-pin configuration for ease of mounting.
Diode exhibits a maximum forward voltage drop of 1.3 Volts ensuring efficient conduction.
Operational temperature range extends from -65°C to 175°C for diverse environments.
The peak reverse recovery time is 500 nanoseconds, making it suitable for fast switching.
Designed as a single diode rectifier for general purpose applications.
Fully compliant with RoHS standards to ensure environmental safety.

Product Description

Vishay 1N4948GP-E3/54 is a high-performance general purpose diode designed for electronic components and power applications. It operates with a maximum forward current of 1 Ampere and a peak repetitive reverse voltage of 1 kV, ensuring suitability for power rectification and fast recovery tasks.

This diode is mounted through hole in a DO-204AL package type, featuring a compact two-pin configuration that facilitates easy integration into electronic assemblies and PCB layouts. Its maximum forward voltage of 1.3 V supports efficient conduction with minimal power loss during operation.

Engineered for a wide temperature range from -65°C to 175°C, this diode performs reliably in harsh industrial and commercial environments. The peak reverse recovery time of 500 ns equips it for switching applications requiring fast response times.

The diode measures 5.2 mm in length and 2.7 mm in diameter, with a corresponding width and height of 2.7 mm each, adapting well to space-constrained designs. Fully compliant with RoHS directives, the 1N4948GP-E3/54 model adheres to environmental standards and is manufactured in China with consistent quality.

Ideal for industrial electronics, power supplies, rectification, and electronic circuits, this diode delivers both versatility and reliability in demanding use cases. This diode supports a maximum continuous forward current of 1 Ampere.

It features a peak repetitive reverse voltage rating of 1 kV. The package type is DO-204AL with a two-pin configuration for ease of mounting. Diode exhibits a maximum forward voltage drop of 1.3 Volts ensuring efficient conduction.

Operational temperature range extends from -65°C to 175°C for diverse environments. The peak reverse recovery time is 500 nanoseconds, making it suitable for fast switching. Designed as a single diode rectifier for general purpose applications.

Dimensions include 5.2 mm length and 2.7 mm diameter for compact PCB layouts. Fully compliant with RoHS standards to ensure environmental safety. Manufactured origin: China. Explore a wide range of semiconductor diodes and general purpose electronic components in EnvMart’s extensive catalog for industrial and commercial needs.
