| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.5mm |
| Length | 5mm |
| Model | SI4559ADY-T1-GE3 |
| Width | 4mm |
| Mount Type | Surface |
| Series | TrenchFET |
| Maximum Operating Temperature | 150°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Channel Type | Type P, Type N |
| Maximum Continuous Drain Current Id | 5.3A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 72mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 3.4W |
| Typical Gate Charge Qg @ Vgs | 13nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Transistor Configuration | Isolated |

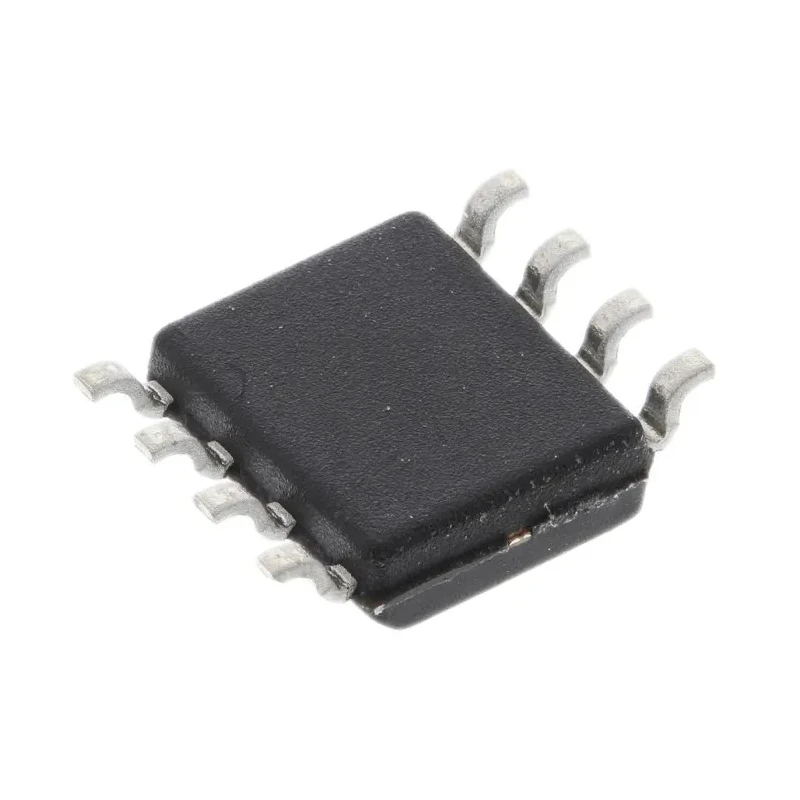

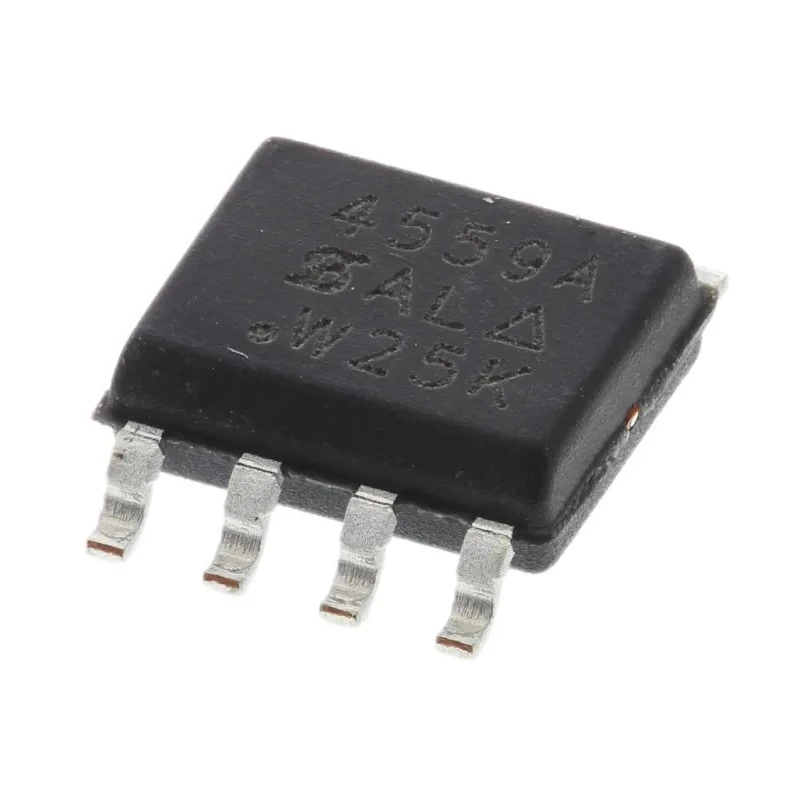

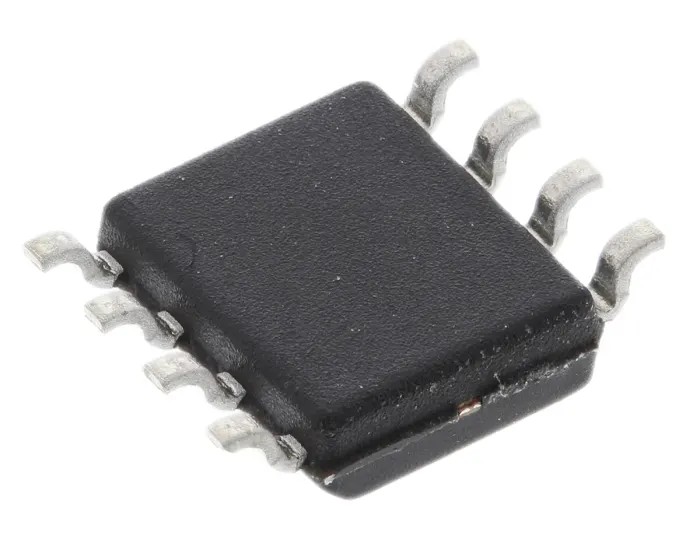

Vishay SI4559ADY-T1-GE3 is a high-performance isolated dual TrenchFET MOSFET featuring both Type P and Type N channels suitable for a wide range of electronic applications. It exhibits a maximum continuous drain current of 5.3 A and a maximum drain-source voltage of 60 V, operating in enhancement mode to provide optimal switching efficiency.
The MOSFET comes in a compact 8-pin Small Outline IC (SOIC) package designed for surface mounting on PCB assemblies. This component boasts a low maximum drain-source resistance of 72 milliohms, contributing to low conduction losses and improved power dissipation capabilities rated at 3.4 watts. It supports typical gate charge of 13 nanocoulombs at gate-source voltage, enabling fast turn-on and turn-off characteristics essential for high-frequency switching circuits.
Engineered for reliability, the device supports operating temperatures from -55°C to 150°C and withstands gate-source voltages ranging from -20 V to +20 V, ensuring robustness under demanding environmental conditions. The physical dimensions are compact with a length of 5 mm, width of 4 mm, and height of 1.5 mm, allowing flexible integration into complex electronic systems.
This dual transistor configuration is ideal for industrial, power management, and electronic control applications in sectors such as manufacturing, telecommunications, and power supply design. It is manufactured in China and supplied as a new product meeting rigorous semiconductor quality standards.
Designed with an 8-pin SOIC package for surface mounting. Features enhancement mode operation with low drain-source resistance of 72 mΩ. Maximum power dissipation rating of 3.4 W ensuring efficient thermal performance. Operates in a temperature range from -55°C to 150°C.
Typical gate charge is 13 nC at Vgs, allowing fast switching. Maximum gate-source voltage tolerance is -20 V to +20 V. Compact dimensions of 5 mm length, 4 mm width, and 1.5 mm height. Configured as isolated dual N/P-Channel MOSFET.
Manufactured in China as a new condition semiconductor device. Explore more high-quality semiconductors and discrete electronic components on EnvMart for your industrial and commercial needs.
