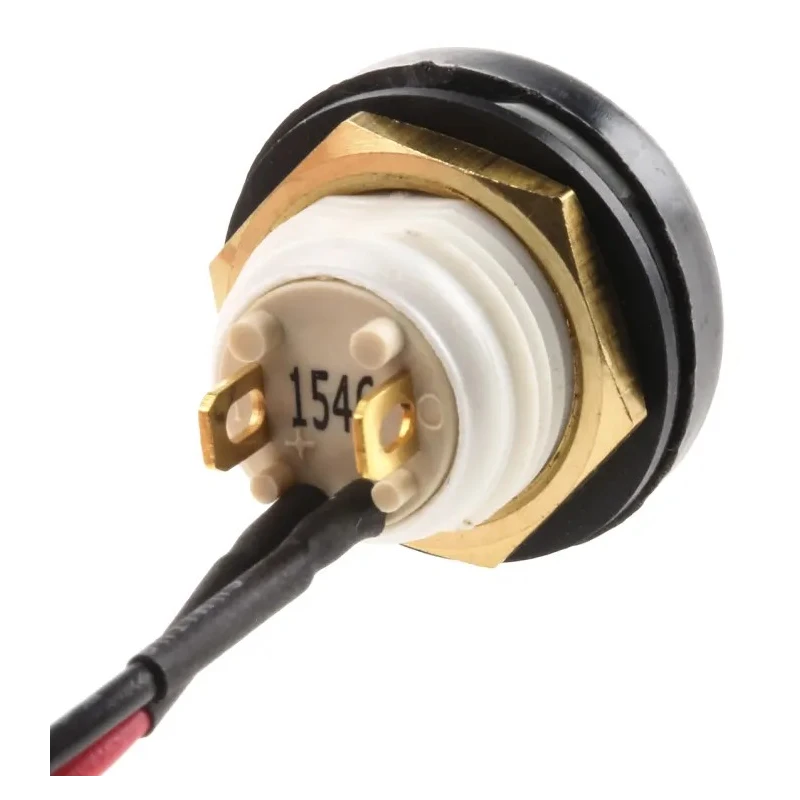

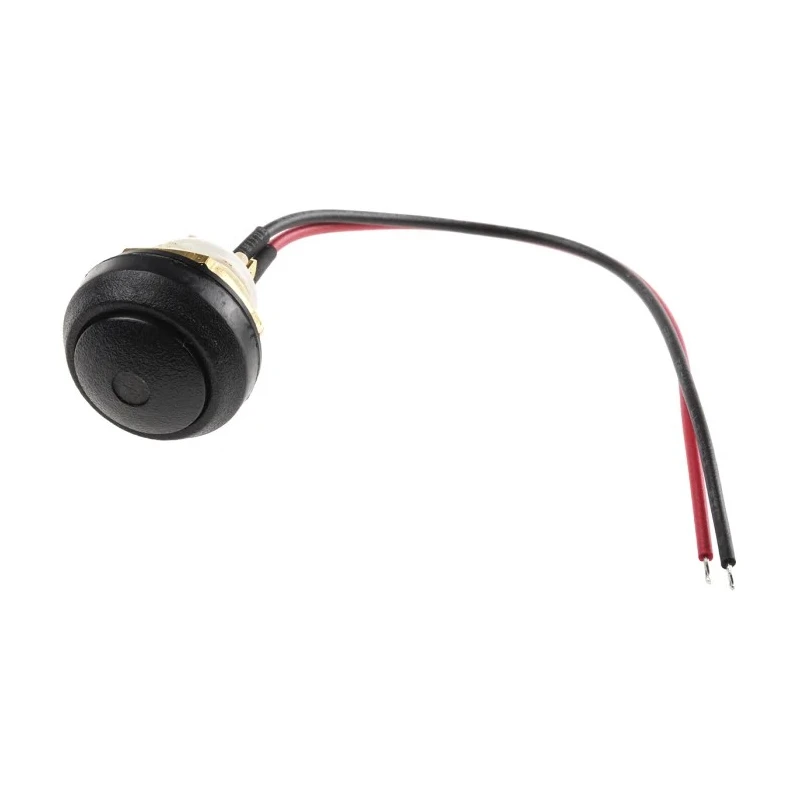

ITW Switches 48 Series Illuminated Push Button Switch, Panel Mount, 14 mm Cutout, Black, SPST, IP67 48-1-RB-B-BK-B
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | ITW Switches |
| Model | 48-1-RB-B-BK-B |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 48 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Cutout Diameter | 14mm |
| Push Button Colour | Black |
| Push Button Style | Round |
Key Features
- Designed for panel mounting with a 14 mm cutout diameter.
- Features a round push button style with black LED illumination.
- Single Pole Single Throw (SPST) contact configuration with solder terminal type.
- IP67 rated, ensuring dust-tight and water immersion protection.
- Operates reliably between -40°C and 85°C for industrial environments.
- Long life expectancy with 100,000 operations using gold-plated contacts.
- Compact 17.4 mm button diameter with suitability for panel thickness from 0.5 mm to 3.0 mm.
- Compliant with RoHS standards to meet environmental safety requirements.
Product Description
The ITW Switches 48-1-RB-B-BK-B is an illuminated push button switch designed for robust industrial and commercial panel applications. Featuring a 14 mm panel cutout diameter and black round push button, it offers both aesthetic appeal and functional reliability.
This push button switch incorporates a Single Pole Single Throw (SPST) contact configuration with gold-plated contacts rated for 250 mA at 12 VDC and 100 mA at 48 VDC, ensuring long-lasting and stable electrical performance over extended use.
Its IP67 rating guarantees complete dust ingress protection and the ability to withstand immersion in water, making it suitable for harsh, sealed environments used in electrical panels, automation systems, and control interfaces.
The switch supports solder terminals for secure and reliable wiring connections and maintains operational integrity across a wide temperature range from -40°C to 85°C, suitable for diverse industrial installation conditions.
This model complies with RoHS directives ensuring environmental safety. The compact dimensions (17.4 mm button diameter, 13.6 mm panel mounting cut-out) along with support for varying panel thickness (0.5 mm to 3.0 mm) make it an adaptable solution for multiple applications including manufacturing equipment, laboratory controls, and commercial electrical systems.
Designed for panel mounting with a 14 mm cutout diameter. Features a round push button style with black LED illumination. Single Pole Single Throw (SPST) contact configuration with solder terminal type. IP67 rated, ensuring dust-tight and water immersion protection.
Operates reliably between -40°C and 85°C for industrial environments. Long life expectancy with 100,000 operations using gold-plated contacts. Compact 17.4 mm button diameter with suitability for panel thickness from 0.5 mm to 3.0 mm.
Compliant with RoHS standards to meet environmental safety requirements.
This illuminated push button switch from ITW Switches is ideal for use in electrical panels, automation control systems, laboratory instrumentation, and manufacturing equipment requiring durable, sealed, and visually clear switch actuation.
Explore more high-quality Push Button Switches and electrical components from ITW Switches within the EnvMart catalog to find suitable parts for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cutout diameter for this model is 14 mm, designed for panel mounting applications.
This switch features a Single Pole Single Throw (SPST) contact configuration, providing a simple on/off function.
It has an IP67 rating, ensuring it is dust-tight and can withstand immersion in water.
This model operates reliably between -40°C and 85°C, suitable for various industrial environments.
It has a long life expectancy of 100,000 operations, thanks to its gold-plated contacts.
The switch uses solder terminals for secure and reliable wiring connections.
The button diameter is 17.4 mm, making it compact for various panel applications.
It supports panel thicknesses ranging from 0.5 mm to 3.0 mm, allowing for versatile installation options.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
This model is suitable for use in electrical panels, automation control systems, laboratory instrumentation, and manufacturing equipment.
The push button color is black, providing a clear visual indication when illuminated.
The country of origin for this model is Taiwan, known for its quality manufacturing standards.
