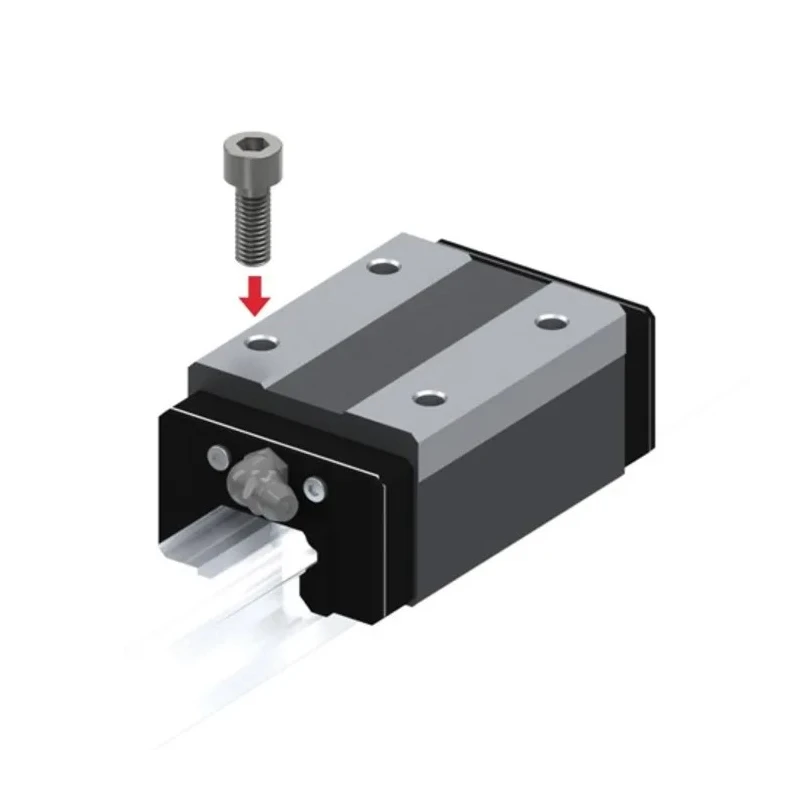

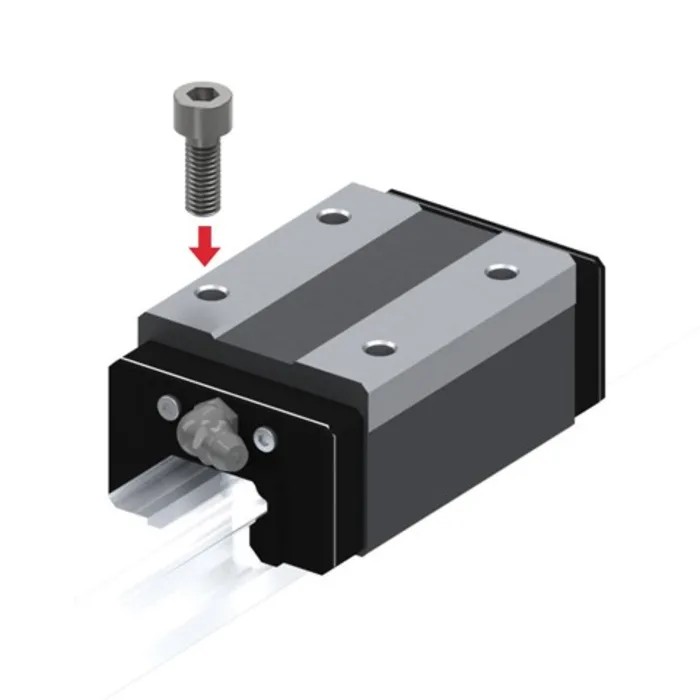

THK Linear Guide Carriage HSR Series with 27.6 kN Dynamic Load HSR25C1SSC1(GK)

THK presents the HSR25C1SSC1(GK) Linear Guide Carriage, part of the HSR Series, designed to deliver reliable and precise linear motion under demanding industrial conditions. Featuring a dynamic load rating of 27.6 kN, this Linear Guide Carriage is manufactured from carbon steel for exceptional strength and long service life.

The carriage incorporates balls that travel within four meticulously ground raceways on the linear motion (LM) rail, supported by integrated endplates for improved structural integrity. The 45° contact angle of each ball row ensures that rated loads are uniformly distributed across radial, reverse-radial, and lateral directions, resulting in minimal friction and enhanced rigidity.

Self-adjusting blocks in the carriage allow for absorption of mounting errors even when preloaded, enabling highly accurate and smooth linear movement. Designed to fit LM rails with an acceptable rail width of 23 mm, this bearing block measures 83.1 mm in carriage length and 70 mm in width, with an overall height of 36 mm, making it suitable for a variety of industrial and mechanical automation applications.

Manufactured in France, the THK HSR25C1SSC1(GK) is ideal for use in industries such as manufacturing machinery, automation equipment, and precision instrumentation, where high reliability and long-term performance are essential.

Constructed from high-quality carbon steel for durability and strength. Balls travel in four precision-ground raceways ensuring smooth, low-friction motion. Contact angle of 45 degrees provides uniform load distribution in multiple directions.

Self-adjusting blocks absorb mounting errors for high accuracy. Acceptable rail width is 23 mm for compatibility with standard LM rails. Carriage length is 83.1 mm and width is 70 mm for precise fitment. Overall height of 36 mm supports diverse installation requirements.

Manufactured in France to high-quality standards.
