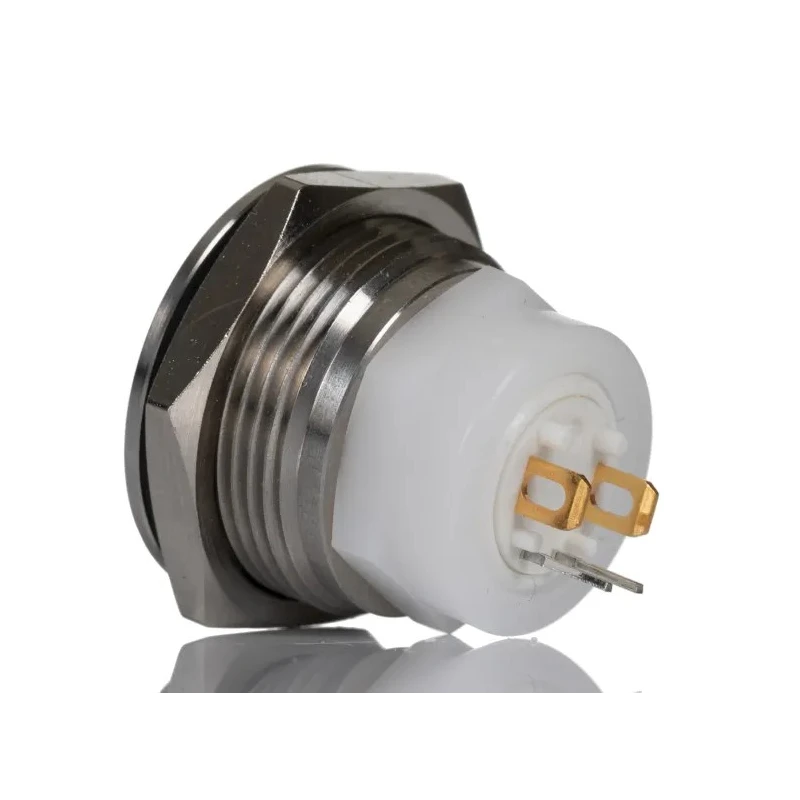

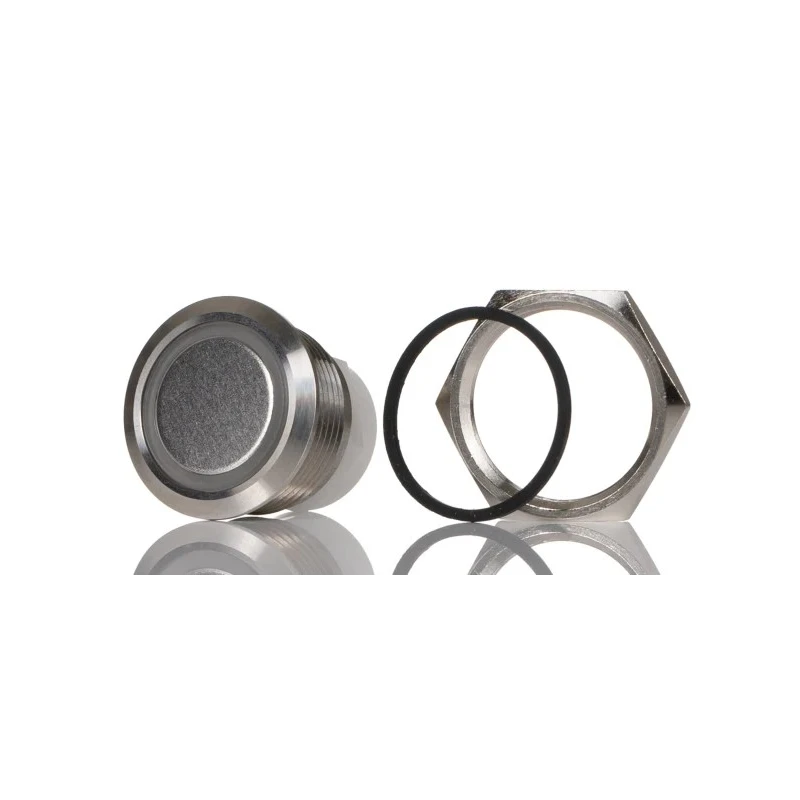

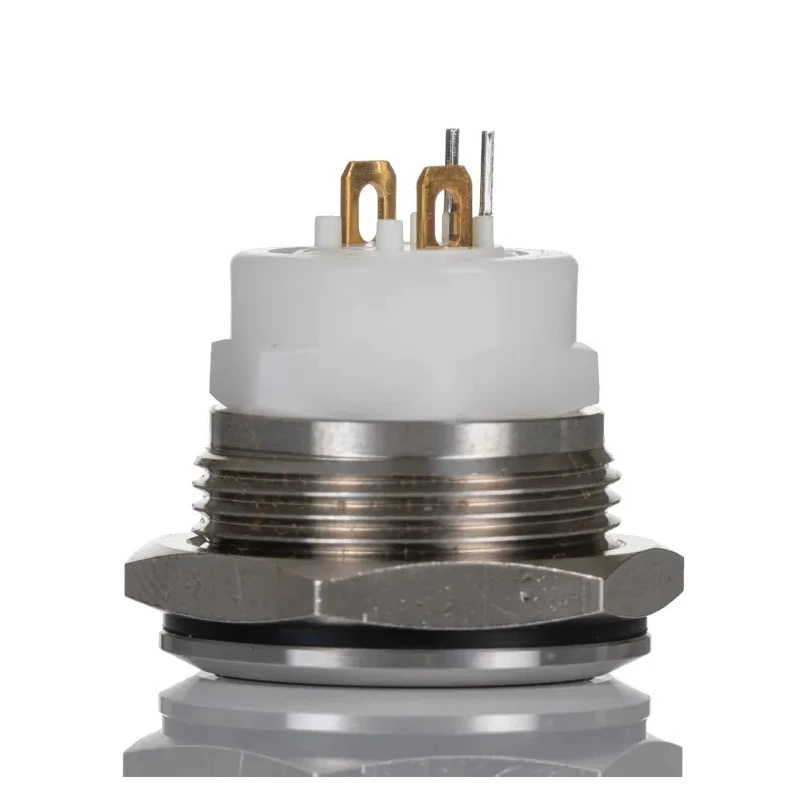

ITW Switches 48M Series Illuminated Push Button Switch Panel Mount 19 mm Cutout Silver SPST IP67 48M-112B
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | ITW Switches |
| Model | 48M-112B |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 48M |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Transportation | Mass transit, lift trucks |
| Standards/Approvals | RoHS |
| Cutout Diameter | 19mm |
| Push Button Colour | Silver |
| Push Button Style | Round |
Key Features
- Features panel mounting with a 19.3 mm cut-out diameter suitable for panel thickness 1.3 to 3.8 mm.
- Blue LED illumination includes centre-spot and ring-style lighting for clear indication.
- Gold-plated contacts provide reliable connectivity and durability.
- Rated for switching currents up to 250 mA at 12 VDC with SPST contact configuration.
- Rugged construction with full IP67 panel sealing for dust and water ingress protection.
- Operating temperature range of -25°C to 85°C supports diverse environments.
- Terminal type is solder, facilitating secure and standard electrical connections.
- Ideal for industrial machinery, medical equipment, food processing, transportation, security, and outdoor controls.
Product Description
ITW Switches 48M-112B is a high-quality illuminated push button switch designed for panel mounting with a precise 19.3 mm cutout, suitable for panel thicknesses ranging from 1.3 mm to 3.8 mm.
This robust switch features a silver round push button style with SPST contact configuration and integrated blue LED illumination utilizing centre-spot and ring-style lighting for visual clarity.
The contacts are gold plated to ensure superior conductivity and longevity even under demanding conditions. The switch supports a switching current rating of up to 250 mA at 12 VDC, making it suitable for a variety of low-voltage control applications.
Its rugged IP67-rated sealing protects against dust ingress and water immersion, enhancing reliability in harsh industrial and outdoor environments.
The operating temperature range from -25°C to 85°C allows use across diverse industrial, medical equipment, food processing, mass transit, security systems, and transportation controls.
The solder-type terminals enable secure and reliable wiring connections, and the switch is RoHS compliant, reflecting commitment to environmental and safety standards. Panel mounting with 19.3 mm cutout diameter and secure single hex nut fixing.
Blue LED illumination with centre-spot and ring-style lighting. Gold-plated contacts rated for 250 mA @ 12 VDC. IP67 panel sealing for dust and water protection. Operating temperature from -25°C to 85°C. Silver round push button style.
Solder terminal connections. Applications include industrial machinery, outdoor controls, medical and food processing equipment, transportation, and security. Manufactured in Taiwan, compliant with RoHS standards. This switch is part of the ITW Switches 48M series, known for reliability and rugged construction suitable for demanding industrial and commercial applications.
Explore the broad range of high-quality switches and electrical components in the Electronics & Electricals category at EnvMart for seamless integration into your projects.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cutout diameter for this model is 19.3 mm, suitable for panel thicknesses ranging from 1.3 mm to 3.8 mm.
It supports a maximum switching current of up to 250 mA at 12 VDC.
This switch has an IP67 rating, providing protection against dust and water ingress.
The operating temperature range is from -25°C to 85°C, making it suitable for diverse environments.
It features solder-type terminals, allowing for secure and reliable wiring connections.
The contact configuration is SPST (Single Pole Single Throw).
It includes blue LED illumination with centre-spot and ring-style lighting for clear visual indication.
It is suitable for various applications including industrial machinery, medical equipment, food processing, transportation, and outdoor controls.
The push button is silver in color and has a round style.
The switch is RoHS compliant, reflecting adherence to environmental and safety standards.
It is manufactured in Taiwan.
This model is part of the ITW Switches 48M series, known for its reliability and rugged construction.
