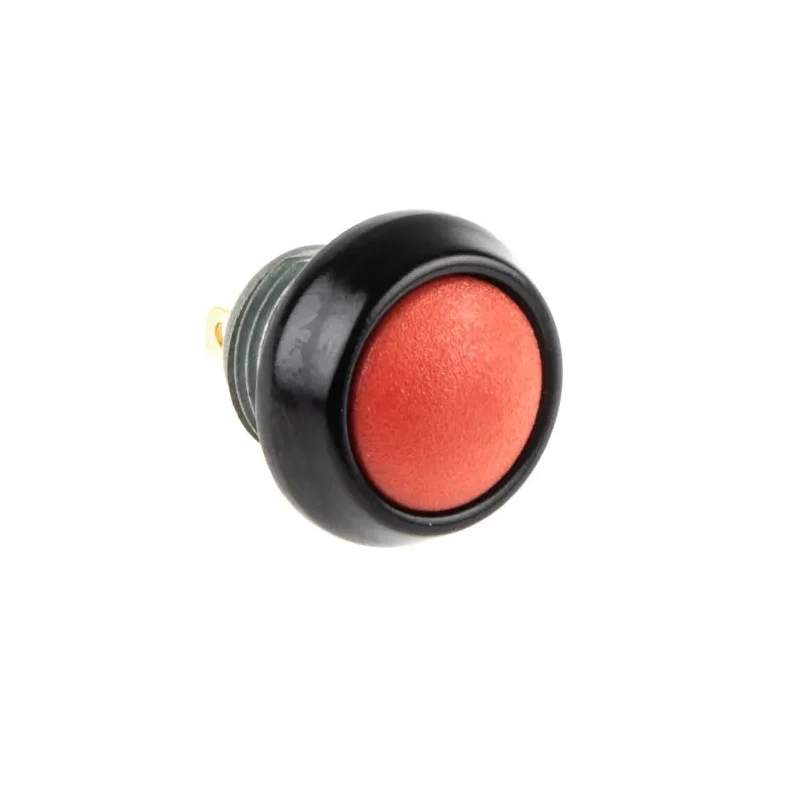

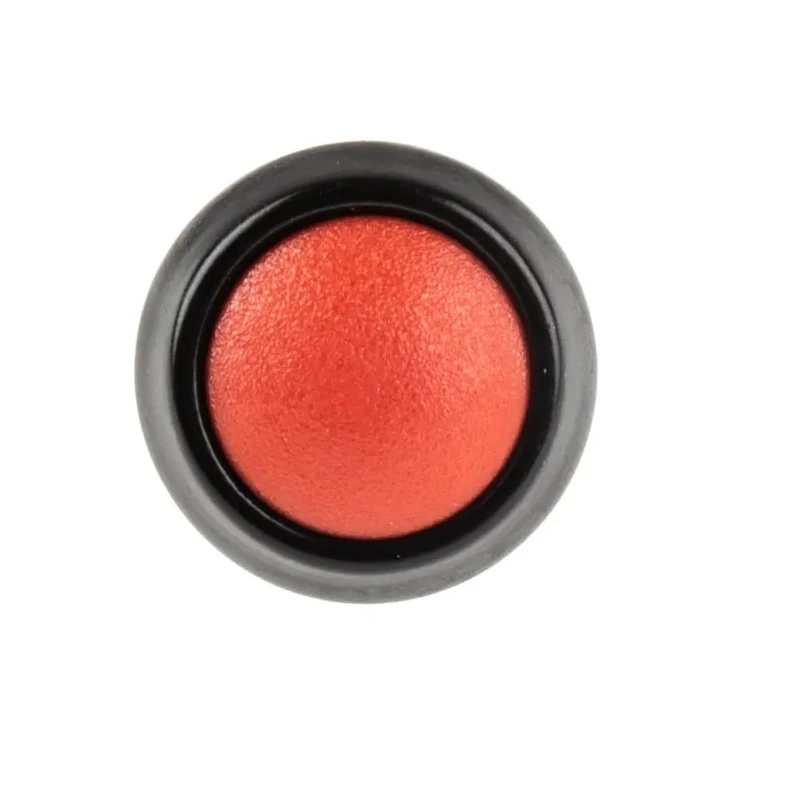

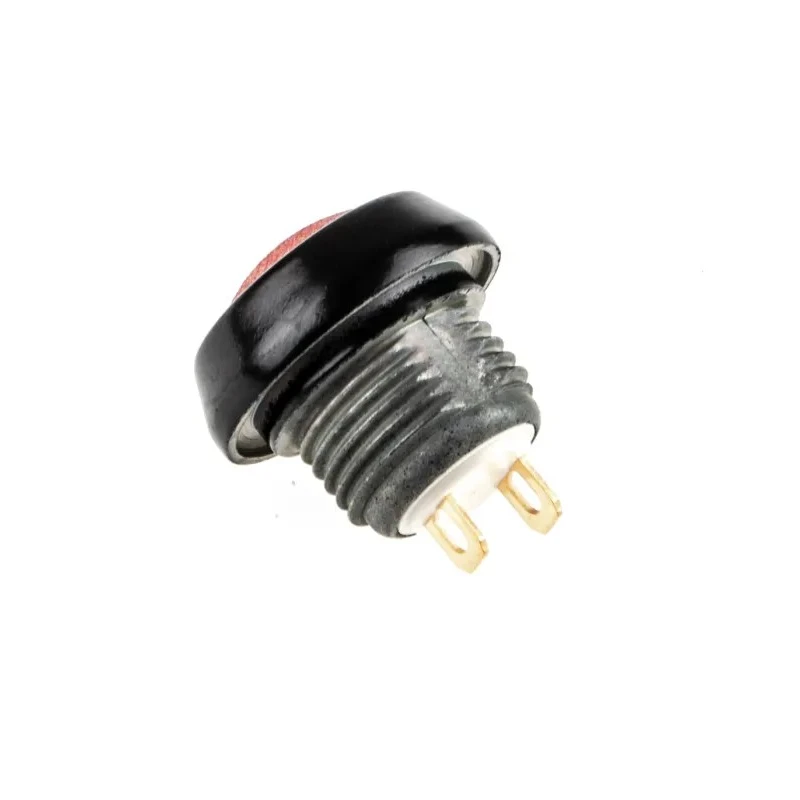

ITW Switches 59 Series Miniature Momentary Panel Mount Push Button Switch SPST 13.6 mm Cutout IP67 125V 400mA 59-112
Specifications
| Country of Origin | India |
|---|---|
| Brand | ITW Switches |
| Model | 59-112 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 59 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -55°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 125V |
| Actuator Style | Round |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 125V ac |
Key Features
- The switch has a round red actuator button with solder terminals.
- Momentary contact switch operation offers on-off functionality only while pressed.
- It supports a contact voltage of 125 V AC/DC and a maximum contact current of 400 mA.
- The product is panel sealed to IP67 for dust tightness and protection against immersion.
- Operates reliably within -55°C to 125°C temperature range.
- Non-illuminated switch with gold contacts ensures reliable switching.
- Certified to CSA and UL standards for safety compliance.
- Ideal for harsh environments including military, instrumentation, and transport controls.
Product Description
ITW Switches 59-112 is a durable miniature push button switch engineered for momentary operation in demanding industrial and commercial panel applications. Featuring a round red button actuator and a compact 13.6 mm panel cutout, this SPST switch delivers reliable on-off contact only during button press. It is mounted with solder terminals for secure connections.
The robust switch body is sealed to IP67, providing complete dust protection and resistance to temporary immersion, making it suitable for applications exposed to harsh environmental conditions. Its operating temperature range from -55°C to 125°C ensures performance stability across extreme conditions.
The switch carries safety certifications from CSA and UL, guaranteeing adherence to high-quality and safety standards. With a contact voltage rating of 125 V AC/DC and a maximum contact current of 400 mA, it is adequate for low power signaling and control circuits.
Gold contact materials provide excellent conductivity and corrosion resistance, enhancing switch longevity. The non-illuminated design is suitable where LED indication is not required.
Applications include communications equipment, military instrumentation, mass transit controls, and environmental keypads that demand sealed, reliable push button switches. The switch offers momentary action with on-off functionality only during actuation.
Panel sealed to IP67 rating for superior environmental protection. Compact miniature form factor with 13.6 mm panel cutout. Robust construction with gold contacts for durability. Certified to meet CSA and UL electrical safety standards.
Operates reliably from -55°C to 125°C ambient temperature. Non-illuminated solder terminal design for easy installation. Supports contact ratings of 125 V and 400 mA.
This product is an ideal choice for industrial, laboratory, military, and transportation control systems requiring reliable, sealed miniature Push Button Switches. Explore a wide range of switches and components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Single Throw (SPST) contact configuration, providing on-off functionality only while the button is pressed.
It can handle a maximum contact current of 400 mA, suitable for low power signaling and control circuits.
It operates reliably within a temperature range of -55°C to 125°C, ensuring performance stability across extreme conditions.
The required panel cutout size for this switch is 13.6 mm, allowing for a compact installation in various applications.
This model uses solder terminals for secure connections, facilitating easy installation in panel applications.
It is certified to CSA and UL standards, ensuring adherence to high-quality and safety standards.
The switch has an IP67 rating, providing complete dust protection and resistance to temporary immersion in water.
The actuator button is round and red, providing a clear visual indication for operation.
No, this model is non-illuminated, making it suitable for applications where LED indication is not required.
It is suitable for applications in communications equipment, military instrumentation, mass transit controls, and environmental keypads that require sealed push button switches.
The switch supports a contact voltage rating of 125 V AC/DC, making it versatile for various control circuits.
The actuator style is round, designed for momentary operation during actuation.
