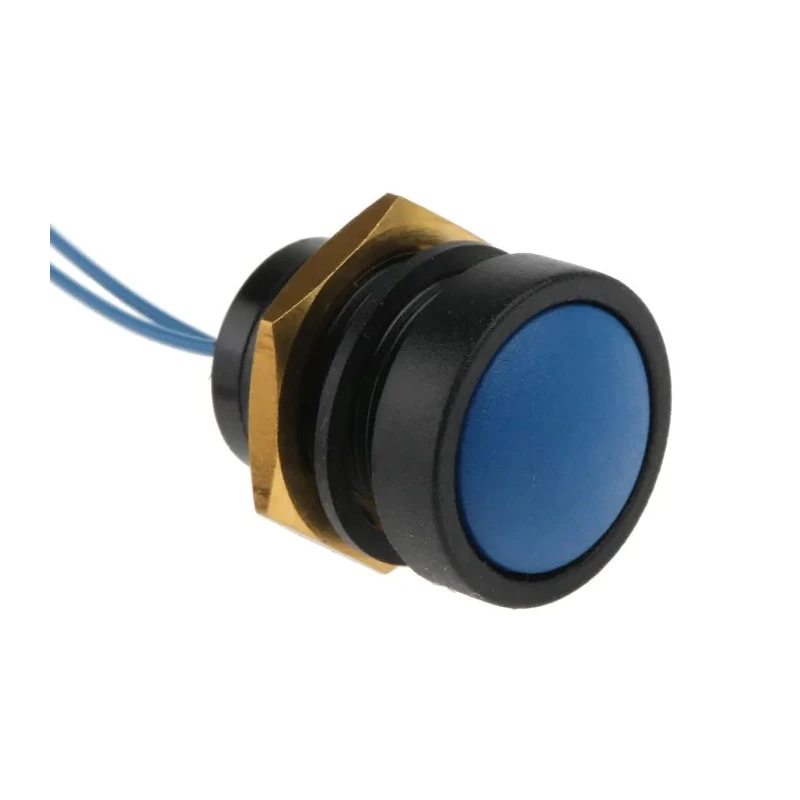

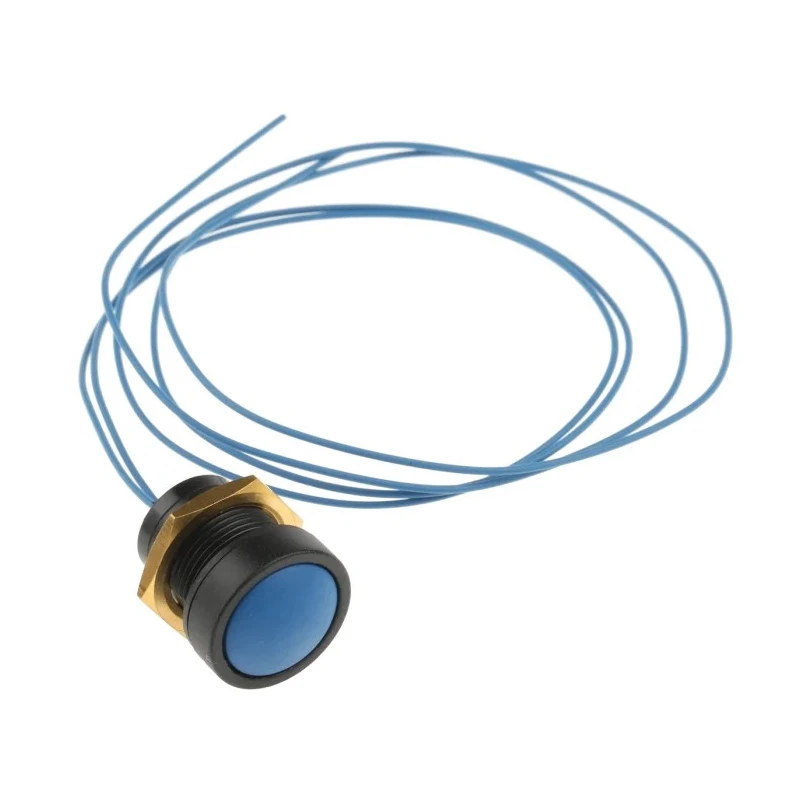

ITW Switches Push Button Switch Momentary Panel Mount 16 mm Cutout SPST Clear LED IP67 250 V AC 49-59116
Specifications
| Country of Origin | Belize |
|---|---|
| Brand | ITW Switches |
| Model | 49-59116 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 49-59 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Wire |
| Standards/Approvals | CSA, UL |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Contact DC Voltage | 250V |
| Actuator Style | Dome |
| Switch Contact Current | 10A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a durable polybutylene terephthalate (PBT) dome-style actuator colored blue.
- It is rated for 250 V AC and DC contact voltages with a maximum contact current of 10A.
- The device includes 500 mm PVC insulated flying leads with plain unstripped ends for easy wiring.
- Designed for momentary operation, the switch engages only while pressed and returns to off position upon release.
- IP67 sealing ensures protection against dust ingress and temporary immersion in water.
- Suitable for rugged environments including communications, military, instrumentation, and transport controls.
- The operating temperature range is from -35°C to 85°C, supporting a variety of industrial uses.
- Certified to CSA and UL standards for quality and safety assurance.
Product Description
ITW Switches 49-59116 push button switch is a momentary panel mount switch designed for reliable operation in demanding industrial environments. Featuring a 16 mm diameter panel cutout and SPST contact type, this switch provides a secure on-off control with a clear LED indication and IP67 protection.
The dome-style blue actuator is constructed from polybutylene terephthalate (PBT), an engineered thermoplastic polymer known for electrical insulation and durability. The switch includes 500 mm PVC insulated flying leads with plain unstripped ends for easy panel integration and wiring.
Designed to operate momentarily, the switch closes the circuit only while the button is pressed and releases immediately when let go, ensuring precise control. Fully sealed to IP67 standards, it protects against dust and temporary water immersion, suitable for harsh industrial and military conditions.
The 49-59 series push button switch is ideal for applications in communications equipment, data processing units, instrumentation panels, and transport controls. Its wide operating temperature range from -35°C to 85°C enables use in environments subject to temperature extremes.
This switch meets CSA and UL safety and performance standards, providing quality assurance for industrial, laboratory, commercial, and manufacturing use cases. The robust design and protection features make it suitable for demanding HVAC, water treatment, and other commercial environments.
The switch features a durable blue dome actuator made from PBT material. Momentary SPST contact configuration providing on-off switching functionality. Panel mount design with 16 mm standard cutout for easy installation.
Rated for 250 V AC and 250 V DC with a contact current up to 10 amps. IP67 sealing protects against dust and water immersion for enhanced durability. 500 mm PVC insulated flying leads enable flexible electrical connection.
Operating temperature range from -35°C up to 85°C suits various industrial conditions. Certified under CSA and UL standards for safety and reliability.
Set contains one ITW Switches 49-59116 push button panel switch as described. Explore more specialized electrical switches in our Push Button Switches category at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 10A.
It is rated for 250V AC and 250V DC contact voltages.
This switch has an IP67 rating, providing protection against dust and temporary immersion in water.
The required panel cutout size for installation is 16 mm.
The operating temperature range is from -35°C to 85°C.
It features a dome-style actuator colored blue, made from polybutylene terephthalate (PBT).
This switch is configured as a momentary SPST, meaning it engages only while pressed and returns to the off position upon release.
It includes wire terminals with 500 mm PVC insulated flying leads for easy wiring.
This model is certified to CSA and UL standards for safety and performance assurance.
It is suitable for rugged environments including communications, military, instrumentation, and transport controls.
This push button switch belongs to the 49-59 series.
