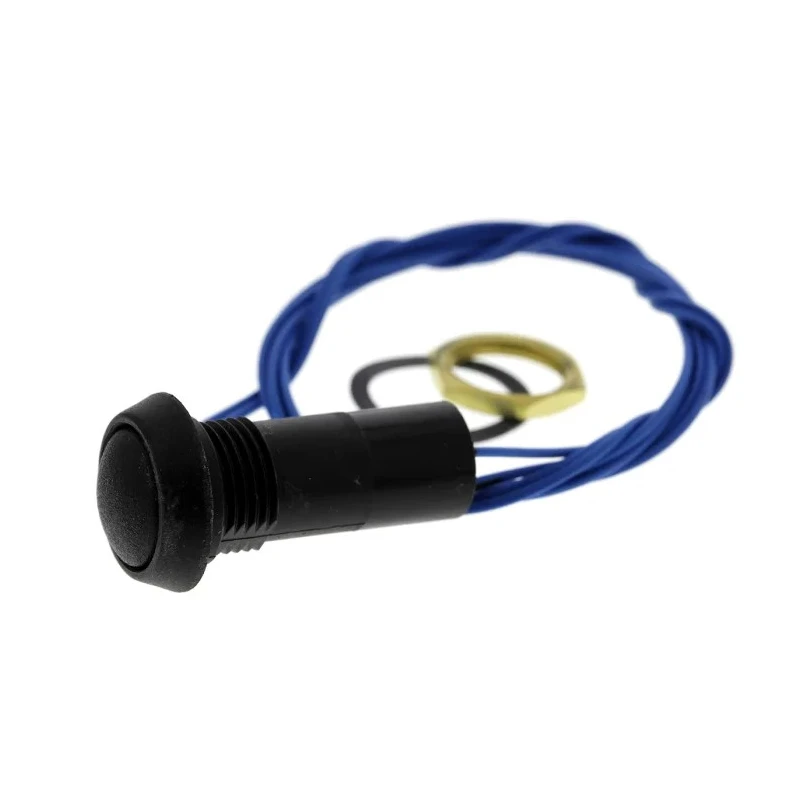

ITW Switches 59 Series Miniature Momentary Push Button Switch, Panel Mount, 13.6 mm Cutout, SPST, Black LED, IP67 59-531
Specifications
| Country of Origin | Belize |
|---|---|
| Brand | ITW Switches |
| Model | 59-531 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 59 |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -40°C |

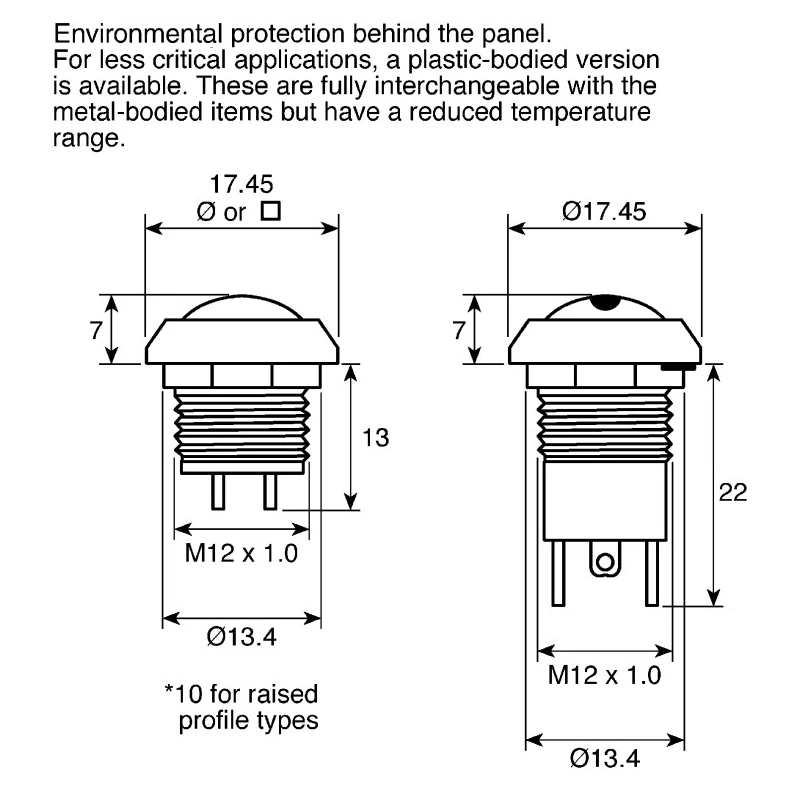

| Panel Cutout Size | 13.6 mm |
| Terminal type | Wire |
| Standards/Approvals | UL, CSA |
| LED Colour | Black |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 125V |
| Actuator Style | Button |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 125V ac |
Key Features
- Compact miniature design suitable for harsh environments.
- Momentary switch operation with SPST contact configuration.
- Panel mounting with a 13.6 mm cutout size for easy installation.
- Black LED illumination and black actuator colour for clear status indication.
- High ingress protection rating IP67 against dust and water immersion.
- Operates over wide temperature range from -40°C to 105°C.
- Suitable for AC/DC voltage up to 125 V with a contact current of 400 mA.
- Gold-plated contacts provide durable and reliable switching.
Product Description
ITW Switches 59-531 is a miniature, momentary action, rugged pushbutton switch designed for panel mounting with a 13.6 mm cutout size. This model features a SPST contact configuration and a black LED illumination, making it highly visible during operation.
Engineered for demanding environments, the switch offers IP67 panel sealing, ensuring complete protection against dust ingress and temporary immersion in water up to 1 meter depth. The durable construction uses either non-spark zinc alloy or moulded polybutylene terephthalate (PBT), delivering robustness suitable for military, communications, instrumentation, mass transport, and other industrial applications.
Operating temperature ranges from -40°C to 105°C allows use in extreme environmental conditions. The switch supports both AC and DC control voltages up to 125 V and can handle contact currents up to 400 mA. Gold contacts guarantee excellent conductivity and long service life.
This pushbutton switch meets UL and CSA standards, ensuring compliance with international safety and quality requirements. Its panel mount installation and momentary action make it ideal for operator control panels and environmentally demanding keypad applications.
Compact miniature design suitable for harsh environments. Momentary switch operation with SPST contact configuration. Panel mounting with a 13.6 mm cutout size for easy installation. Black LED illumination and black actuator colour for clear status indication.
High ingress protection rating IP67 against dust and water immersion. Operates over wide temperature range from -40°C to 105°C. Suitable for AC/DC voltage up to 125 V with a contact current of 400 mA. Gold-plated contacts provide durable and reliable switching.
Compliant with UL and CSA standards for safety and quality. Constructed with non-spark zinc alloy or hardwearing PBT materials.
This ITW Switches 59 Series push button switch is widely used in industrial, military, communications, instrumentation, mass transport, and environmentally demanding keypad applications. Explore more in our Push Button Switch category on EnvMart for quality assured electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cutout size for this model is 13.6 mm, designed for panel mounting.
This switch can operate at a maximum temperature of 105°C.
It features a Single Pole Single Throw (SPST) contact configuration.
The switch has an IP67 rating, providing complete protection against dust and temporary immersion in water up to 1 meter depth.
It can handle a contact current of up to 400 mA.
This model is suitable for both AC and DC voltages up to 125 V.
The switch is constructed with either non-spark zinc alloy or moulded polybutylene terephthalate (PBT).
It meets UL and CSA standards, ensuring compliance with international safety and quality requirements.
The minimum operating temperature is -40°C, allowing use in extreme conditions.
The LED illumination is black, providing clear status indication during operation.
The actuator style is a button, designed for momentary operation.
This switch is suitable for military, communications, instrumentation, mass transport, and other industrial applications.
