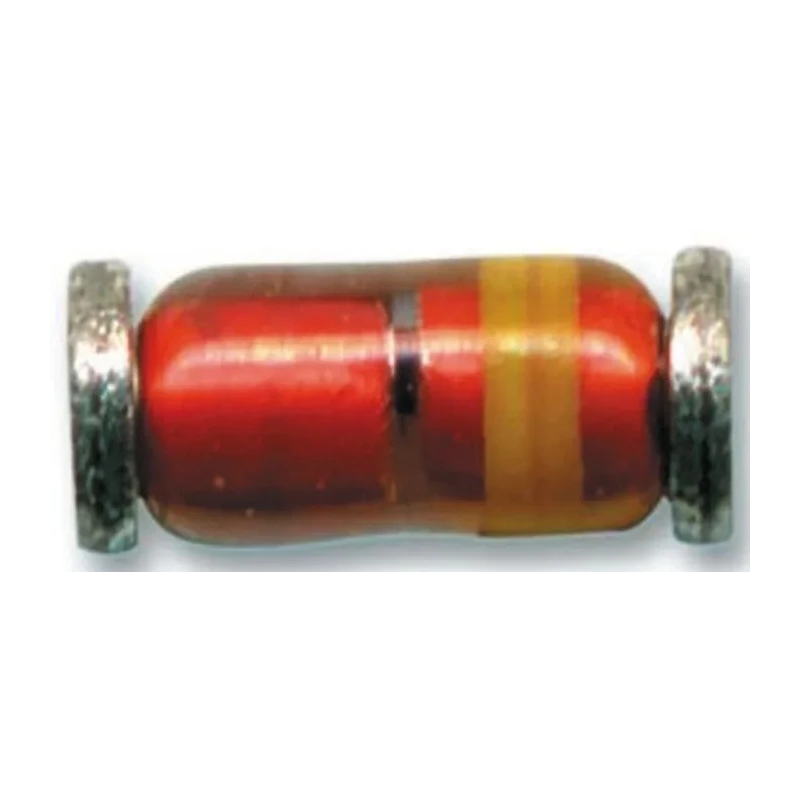

Vishay Silicon Junction Switching Diode MiniMELF 250 mA 250 mV 2-Pin BAV103-GS08

Vishay BAV103-GS08 is a silicon junction switching diode featuring a MiniMELF package with a 2-pin surface mount configuration. It is rated for a maximum forward current of 250 milliamperes and a maximum reverse repetitive voltage of 250 millivolts, designed for fast switching and reliable operation in electronic circuits.

The diode incorporates a superectifier structure and a cavity-free glass-passivated junction which promotes high reliability and low leakage current, typically less than 0.2 microamperes. It also supports a peak non-repetitive forward surge current of 1 ampere, making it capable of handling transient electrical surges.

This device operates reliably over a wide temperature range from -65 degrees Celsius to 175 degrees Celsius and dissipates up to 500 milliwatts of power. The compact molded epoxy body with dimensions of approximately 3.7 mm length by 1.6 mm width and height enables easy integration into compact PCB designs.

Applications include high voltage rectification for G2 grid cathode-ray tubes (CRTs), TV circuits, and snubber circuits for camera flashes. The matte tin plated leads ensure good solderability compliant with industry standards such as J-STD-002 and JESD 22-B102, while the epoxy molding compound meets UL 94 V-0 flammability rating.

The BAV103-GS08 diode features a color band marking to indicate the cathode end, assisting correct installation. This diode is not certified for automotive standards but is commercially graded and RoHS compliant.

Features a superectifier structure ensuring high reliability under operating conditions. Employs a cavity-free glass-passivated junction for enhanced durability. Offers fast switching with low leakage current typically under 0.2 microamperes.

Withstands high forward surge currents with a maximum of 1 ampere non-repetitive forward surge. Compact MiniMELF package with 2-pin configuration for surface mounting. Operates within a temperature range from -65°C to 175°C for versatile applications.

Low maximum power dissipation of 500 milliwatts suitable for low power circuits. Color band polarity marking denotes cathode end for correct directional installation.

This diode is ideal for industrial electronic applications such as power rectification, fast switching circuits, and protection in laboratory, manufacturing, and consumer electronics environments. Explore more Vishay semiconductors and Switching Diodes on EnvMart for high-performance electronic components.
