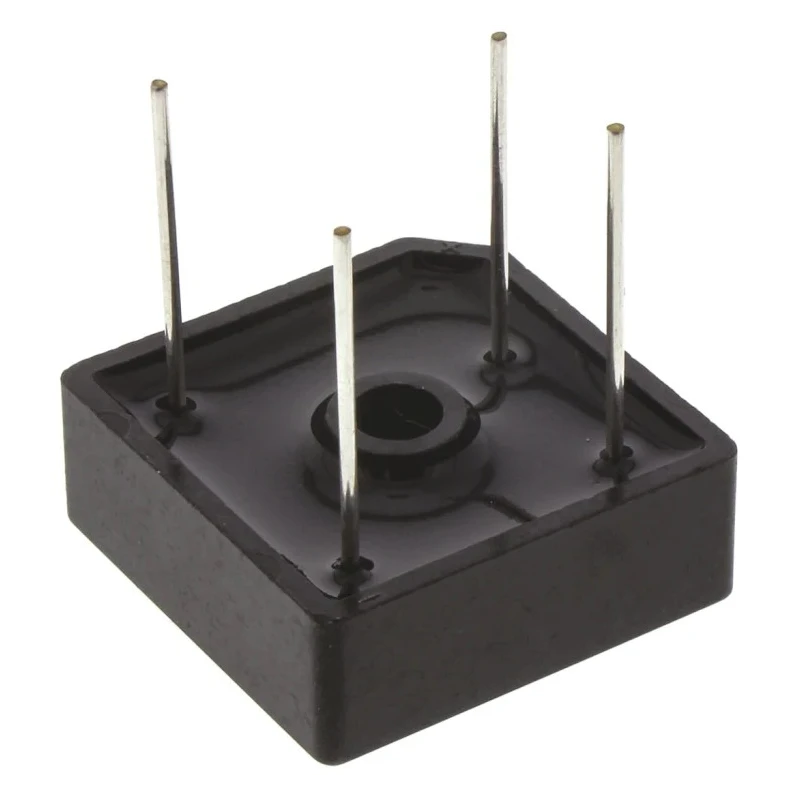

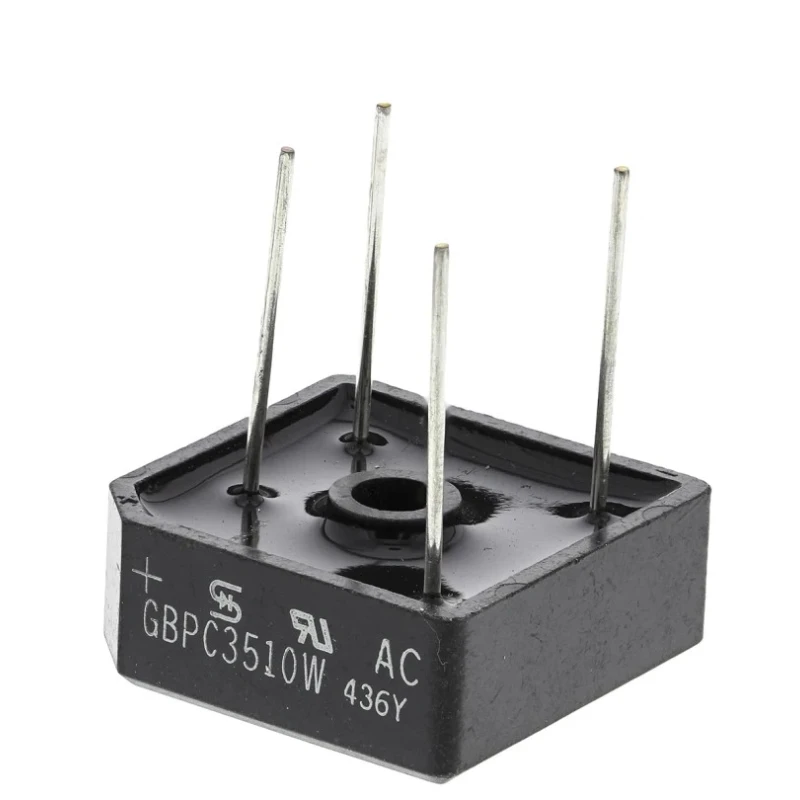

Taiwan Semiconductor Bridge Rectifier, 1000 V, 400 A, 4-Pin Single Through Hole GBPC3510W T0

Taiwan Semiconductor GBPC3510W T0 Bridge Rectifier is a high current diode module designed to convert alternating current (AC) input into direct current (DC) output by using four diodes arranged in a bridge configuration. This component supports a maximum peak repetitive reverse voltage of 1000 V and can continuously carry a forward current of 35 A, with peak non-repetitive forward surge current ratings as high as 400 A. It is configured as a 4-pin single bridge rectifier with a through hole mount type suitable for PCB assembly.

The device dimensions measure 29 mm in length, 29 mm in width, and 11.23 mm in height. It can operate reliably across a broad temperature range from -50°C to 150°C, allowing use in various industrial and electronic environments. The peak forward voltage drop of 1.1 V ensures energy efficiency during conduction, and the peak reverse current is maintained at a minimal 5 μA to limit leakage.

This bridge rectifier is part of Taiwan Semiconductor's GBPC35xxW series, featuring integrally molded heat sinks that offer minimal thermal resistance to maximize heat dissipation. The isolated voltage from case to lead exceeds 2500 V, enhancing safety and performance integrity. The wire lead package allows for convenient through hole mounting on printed circuit boards in power electronics, industrial equipment, and other applications requiring robust AC to DC conversion.

The product does not carry automotive standards or special certifications but meets general usage requirements in electronics and industrial power applications. While UL E-96005 approval is noted, no additional RoHS or automotive certifications apply.

Typical applications include power supplies, converters, motor drives, and AC/DC power control modules in industrial, commercial, and laboratory environments, where reliable and efficient diode rectification is needed.

This bridge rectifier converts AC to DC in power electronics. It features a 1000 V peak reverse voltage and 35 A forward current rating. Compact size with 29x29x11.23 mm dimensions ensures space efficiency. Robust thermal management with integrally molded heat sink reduces overheating risk.

Wide operating temperature range from -50°C to 150°C suits harsh conditions. Wire lead structure for through hole PCB mounting facilitates assembly. Highly surge tolerant with 400 A peak surge current capacity. Low leakage current enhances long-term reliability in circuits.
