DiodesZetex General Purpose NPN Transistor 1 A Collector Current 60 V Voltage 3-Pin SOT-323 DSS4160U-7

DiodesZetex DSS4160U-7 is a high-reliability general purpose NPN bipolar transistor designed for surface mount applications. It provides a maximum collector current of 1 ampere and a collector-emitter voltage rating of 60 volts, making it suitable for low to medium power amplification and switching in electronic circuits.

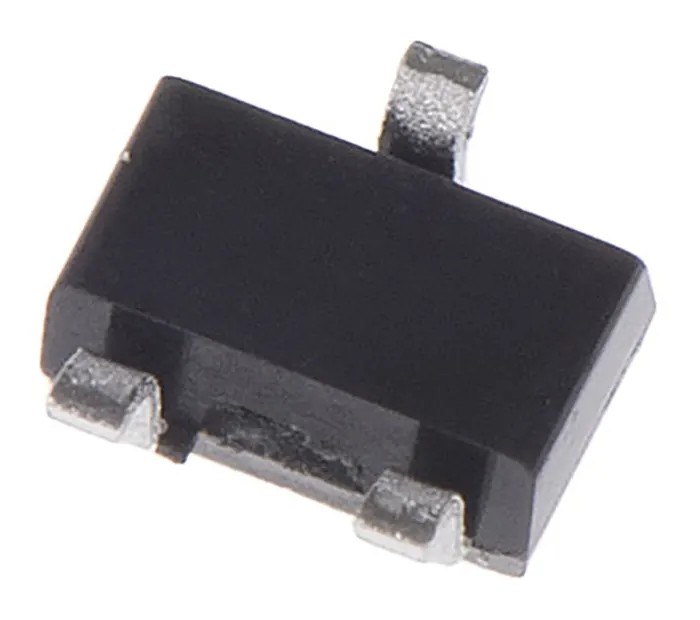

The transistor comes in a compact 3-pin SOT-323 package enabling space-saving PCB designs and compatibility with automated assembly processes. Its typical applications include signal amplification, switching circuits, and general electronics projects requiring reliable transistor performance.

The device supports a collector-base voltage of 80 volts and emitter-base voltage of 5 volts, ensuring robustness under various electrical conditions. It dissipates up to 400 mW of power and operates reliably over a wide temperature range from -55°C to 150°C, suitable for demanding industrial and consumer environments.

This transistor features a minimum DC current gain hFE of 200, contributing to efficient signal amplification and stable operation. The compact dimensions of length 2.2 mm, width 1.35 mm, and height 1.1 mm fit modern electronics design requirements.

This transistor features a maximum power dissipation of 400 mW. It has a minimum DC current gain (hFE) of 200. Operating temperature ranges from -55°C to 150°C. The device supports surface mount technology with a compact 3-pin SOT-323 package.

Collector base voltage maximum rating is 80 V and emitter base voltage maximum rating is 5 V. This transistor is suited for switching and amplification applications in electronic circuits. Dimensions include length 2.2 mm, width 1.35 mm, height 1.1 mm.

This product is manufactured in China and is supplied new, ensuring quality and performance for industrial, laboratory, manufacturing, and electronics prototyping applications. Explore the semiconductor category at EnvMart for a broad range of bipolar transistors and discrete semiconductor components.
