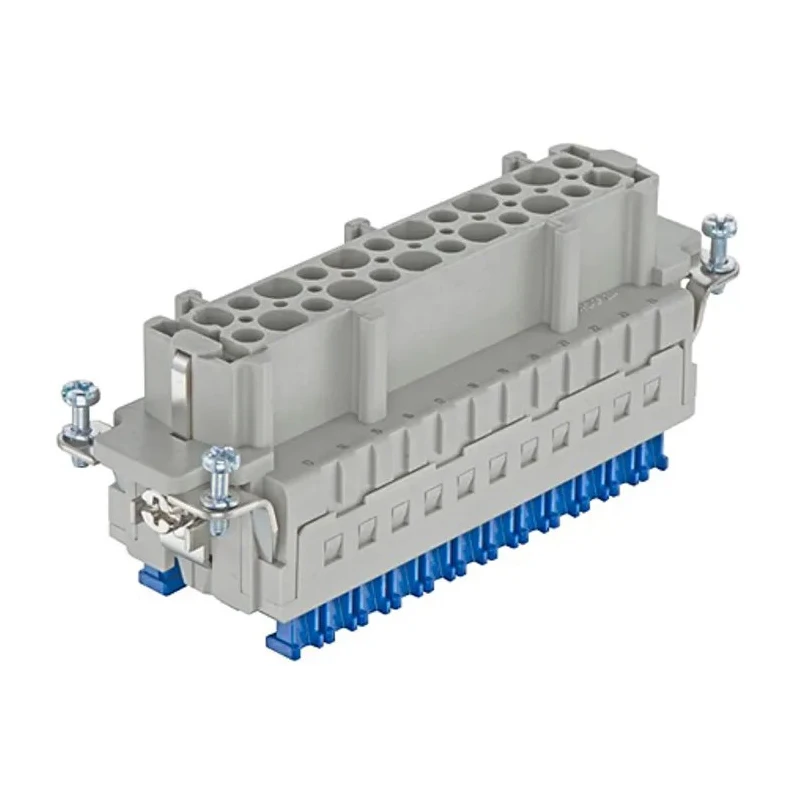

Harting Power Connector Insert, 16A Current Rating, Han ES Press Series Female, Panel Mount, 48 Contacts, 500V 09330242788

Harting 09330242788 Power Connector Insert is a female connector module from the Han ES Press series designed for industrial heavy duty power connectors. Rated for 16A and 500V, this connector insert features a robust, vibration-proof design with silver-plated copper alloy contacts to ensure excellent electrical performance and durability.

The insert supports panel mount installation and provides 48 contacts arranged in 2 rows, with cage clamp terminations allowing quick, secure, and tool-free wiring suitable for efficient assembly processes. The wire size range it accepts spans from 0.14 mm² to 2.5 mm², accommodating various wiring needs.

This connector insert is compatible with various Han series hoods and housing options including Han B, Han M, Han EMC, Han Easy Hood, and Han HPR, delivering versatile connectivity solutions across industrial, manufacturing, automation, and electrical control applications.

Optional ES Press plug-in jumpers facilitate direct contact bridging and enable implementation of Star and Delta motor connections, expanding wiring configurations and simplifying motor connection schemes.

Manufactured with precision in Germany, the insert meets industrial quality demands but does not carry specific approval certifications. It has an M3 x 10 thread size for fastening and a straight orientation for easy plug-in operation. The high contact density and sturdy build make it ideal for control cabinets, machinery interfaces, and power distribution assemblies.

The connector supports a current rating of 16A and voltage rating of 500V. Features silver-plated copper alloy contacts with a vibration proof design for reliability. Accepts wire sizes ranging from 0.14 mm² to 2.5 mm² ensuring versatile wiring.

Includes cage clamp terminations enabling quick and easy wiring without additional tooling. Compatible with a wide range of Han series hoods and housings for flexible installation. Mount type is panel mount suitable for secure mechanical integration.

Offers 48 contacts arranged in 2 rows for high-density connections. Thread size is M3 x 10 ensuring standard fastening compatibility. Connector orientation is straight for straightforward alignment. Manufactured in Germany ensuring high-quality standards.
