Nexperia General Purpose Diode 90 V 150 mA Surface Mount 3-Pin SC-70 BAW56W,115

Free Delivery in India | Lowest Global Shipping Charges

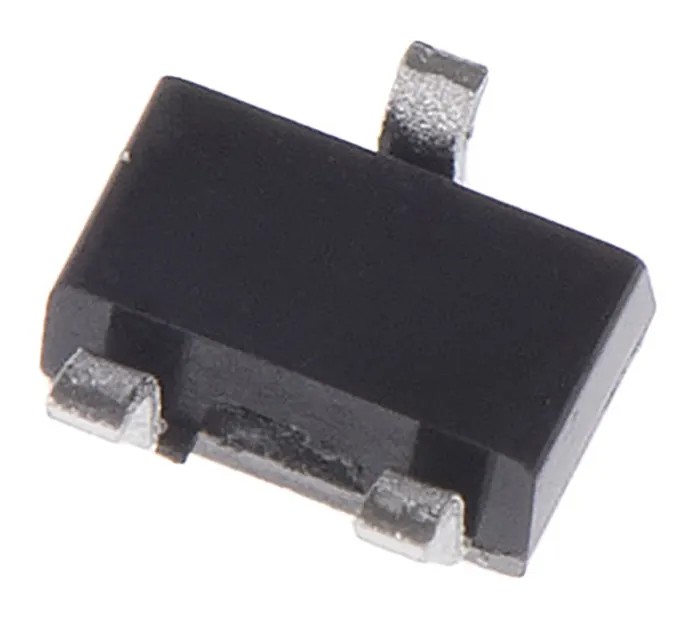

Nexperia General Purpose Diode 90 V 150 mA Surface Mount 3-Pin SC-70 BAW56W,115

Name: Nexperia General Purpose Diode 90 V 150 mA Surface Mount 3-Pin SC-70 BAW56W,115
Brand: Nexperia
SKU: 120826
Price: 0.04 USD
Availability: InStock



Category Discrete Semiconductors Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1mm
Length	2.2mm
Model	BAW56W,115
Width	1.35mm
Mount Type	Surface
Series	BAW56
Maximum Operating Temperature	150°C
Package Type	SC-70
Minimum Operating Temperature	-65°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	150mA
Peak Reverse Repetitive Voltage Vrrm	90V
Diode Configuration	Common Anode
Rectifier Type	General Purpose
Peak Reverse Current Ir	500nA
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
BAW56W/T1Brand	NXP
NXP 90V 150mA, Dual Silicon Junction Diode, 3-Pin SC-70 BAW56W,115Brand	NXP

Key Features

Maximum continuous forward current of 150 mA ensures reliable operation in low power circuits.
Peak reverse voltage of 90 V provides robust blocking capability.
Features low forward voltage drop of 1.25 V for energy efficient switching.
Compact SC-70 surface mount package with dimensions 2.2 mm length, 1.35 mm width, and 1 mm height.
Low leakage current of 500 nA maximizes circuit efficiency.
Peak non-repetitive surge current rated at 4 A for transient protection.
Automotive grade compliance with AEC-Q101 standard ensures durability in harsh environments.
Operating temperature range from -65°C to 150°C suitable for industrial and automotive applications.

Product Description

Nexperia BAW56W,115 general purpose diode is a high-performance switching diode intended for surface mount technology applications. Presented in a compact 3-pin SC-70 package measuring 2.2 mm length, 1.35 mm width, and 1 mm height, this diode is ideal for space-constrained electronic circuit boards.

It supports a maximum continuous forward current of 150 mA with a peak reverse voltage of 90 V, delivering reliable operation for low-power, high-frequency switching and rectification tasks. Its low forward voltage of 1.25 V contributes to energy-efficient circuit performance, while the minimal leakage current of 500 nA ensures minimal power loss.

Built to meet automotive standard AEC-Q101, the diode is suitable for demanding automotive and industrial environments, with operating temperatures from -65°C up to 150°C. The peak non-repetitive forward surge current rating of 4 A provides transient protection against current spikes. Its fast switching capability with a peak reverse recovery time of 4 ns enhances signal integrity in high-speed electronics.

The diode’s common anode configuration facilitates various circuit design configurations, making it a versatile option for electronic component assemblies. Manufactured in Malaysia, this diode is part of the BAW56 series known for dependable semiconductor devices used in general purpose diode applications.

Maximum continuous forward current of 150 mA. Peak reverse voltage of 90 V. Low forward voltage of 1.25 V for efficient power usage. Compact 3-pin SC-70 surface mount package with precise dimensions. Low leakage current enhancing circuit efficiency.

High surge current tolerance of 4 A. Certified for automotive use under AEC-Q101 standard. Wide operating temperature range from -65°C to 150°C. Fast switching speeds with a 4 ns recovery time. Common anode configuration suitable for diverse applications.

This diode is ideal for use in industrial, automotive, consumer electronics, and communication applications requiring reliable switching performance and compact form factor. For more Nexperia semiconductor components and diodes, explore the Electronics & Electricals > Semiconductor > Discrete Semiconductors category at EnvMart.
