Texas Instruments 2-Channel Line Transceiver, CMOS, Inverting, 16-Pin SOIC MAX232D

Texas Instruments MAX232D is a high-performance 2-Channel Line Transceiver designed for RS-232 serial communication applications. It integrates dual line drivers and line receivers, enabling reliable data transmission over RS-232 interfaces. The device operates from a single 3 V to 5.5 V supply, featuring CMOS/TTL compatible logic levels and inverting polarity for robust signal control.

The MAX232D meets industry standards including TIA/EIA-232-F and ITU v.28, ensuring compatibility and performance in various electronic industrial, laboratory, communication, and manufacturing applications. Its internal charge pump circuitry allows operation without the need for additional power supplies, reducing design complexity and component count.

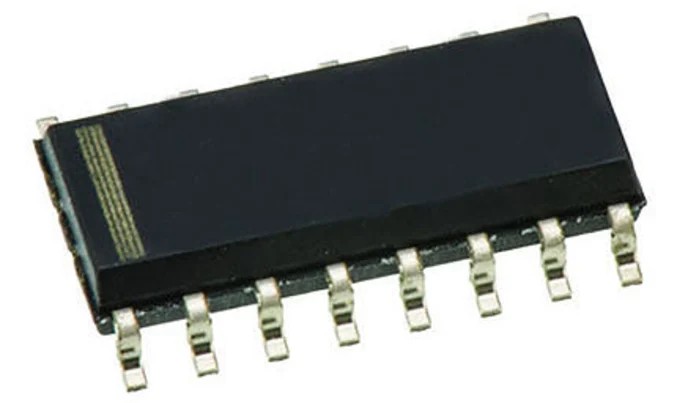

This line transceiver incorporates advanced ESD protection rated up to ±15 kV (human-body model) and ±8 kV (contact discharge), enhancing device reliability against electrostatic discharge in harsh environments. The device is housed in a compact 16-Pin SOIC surface mount package, facilitating easy integration on printed circuit boards while optimizing space.

Designed to operate across a temperature range of 0°C to 70°C, the MAX232D supports typical industrial conditions with a maximum propagation delay time of 500 nanoseconds at capacitive load. It delivers a maximum output current of 10 mA with CMOS output type and single-ended input type, suitable for various control and interface systems.

Integrates two RS-232 line drivers and two line receivers, enabling dual-channel communication. Compatible with CMOS and TTL logic families, supporting flexible system design. Inverting logic polarity facilitates signal processing requirements.

Packed in a 16-pin SOIC surface mount package for compact device footprint. Provides ESD protection up to ±15 kV human-body model, enhancing durability. Operates with supply voltage range from -0.3 V minimum to 6 V maximum.

Suitable for industrial, laboratory, manufacturing, and communication interface applications. Ensures compliance with TIA/EIA-232-F and ITU v.28 standards for RS-232 interfaces. Features low propagation delay and reliable output current for efficient signal transfer.
