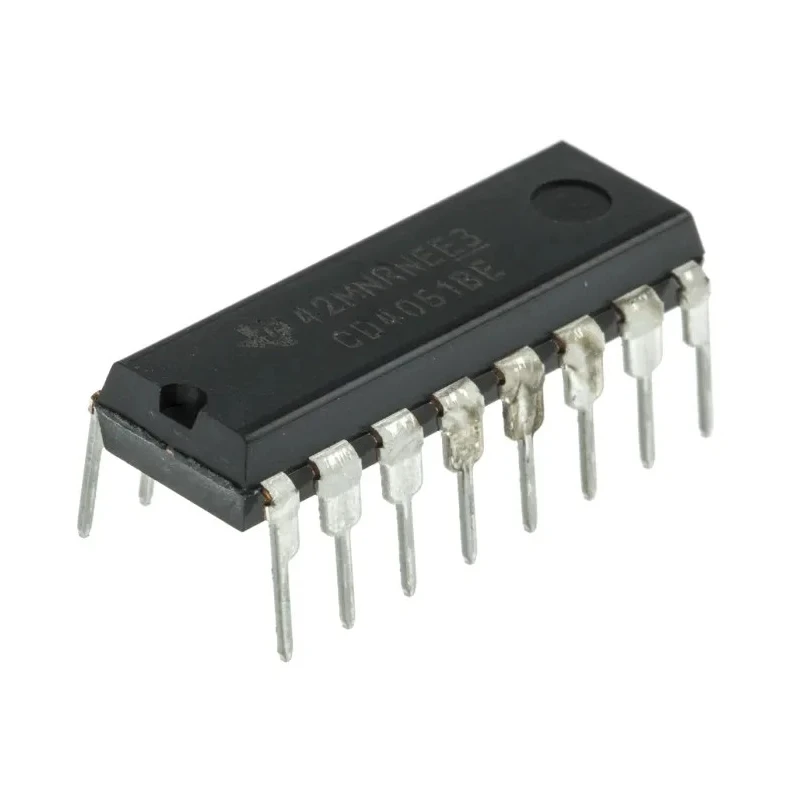

Texas Instruments 1 CMOS Single 8:1 Multiplexer Demultiplexer 16-Pin PDIP CD4051BE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD4051BE |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Output type | CMOS |
| Series | CD4051B |
| Configuration | Single 8:1 |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 16 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 20V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -0.5V |
| Wide operating voltage range | 3 to 18V |
| Multiplexer/Demultiplexer | Demultiplexer, Multiplexer |
| Maximum On State Resistance | 550Ω |
| ConfigurationSingle 8 | 1 |
| Single 8 | 1 |
| Texas Instruments Multiplexer, 1 CMOS Single 8 | 1, Demultiplexer, Multiplexer, 16-Pin PDIP |
Key Features
- Features wide operating voltage range from 3 to 18 volts.
- Supports through-hole mounting with PDIP package type.
- Operates within temperature range of -55°C to 125°C.
- Maximum supply voltage rating at 20 volts ensures robust operation.
- Low maximum on state resistance of 550 ohms for efficient switching.
- Compact dimensions with length 19.3 mm, width 6.35 mm, and height 4.57 mm.
- Designed for CMOS logic family with a single element per chip.
Product Description
Texas Instruments CD4051BE is a 1 CMOS Single 8:1 multiplexer and demultiplexer integrated circuit designed for electronic signal routing in various applications. This device employs CMOS technology ensuring low power consumption and high noise immunity. It is contained in a durable 16-pin PDIP through-hole package that facilitates easy PCB mounting and prototyping.
The IC supports a wide operating voltage range from 3 to 18 volts, with a maximum supply voltage limit of 20 volts. It delivers reliable switching performance with a low maximum on state resistance of 550 ohms, making it ideal for signal multiplexing and demultiplexing tasks. Operating reliably within a broad temperature range from -55°C to 125°C, this device is suitable for diverse industrial, laboratory, and electronic applications requiring robust performance under fluctuating environmental conditions.
The CD4051BE is a single element chip offering a multiplexer configuration of single 8:1, supporting efficient signal routing with minimal interference. The compact physical dimensions of the package, measuring 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, enable its use in space-constrained designs. This IC belongs to the well-known 4000 series CMOS logic family by Texas Instruments, ensuring compatibility and reliability in a wide range of semiconductor-based circuits.
Wide operating voltage range from 3 to 18 volts. Single 8:1 multiplexer/demultiplexer configuration. Low maximum on state resistance of 550 ohms. Operating temperature range from -55°C to 125°C. Packaged in 16-pin PDIP through-hole format.
Compact package dimensions for versatile use. Single element per chip CMOS logic family device. Robust design suitable for industrial and laboratory applications.
This CMOS multiplexer/demultiplexer IC is widely used in electronic circuit design, testing instruments, signal processing, and automation systems. It offers efficient digital switching capabilities that can be integrated into communication, measurement, and control applications.
Explore the range of semiconductor components including multiplexer and demultiplexer ICs from Texas Instruments at EnvMart for reliable and high-performance electronic solutions.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CD4051BE operates within a voltage range of 3 to 18 volts, with a maximum supply voltage limit of 20 volts.
This model has compact dimensions measuring 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The maximum on state resistance for this device is 550 ohms, ensuring efficient switching performance.
It operates reliably within a temperature range of -55°C to 125°C.
This IC is packaged in a 16-pin PDIP format, suitable for through-hole mounting.
The CD4051BE is designed as a single element per chip.
This model belongs to the CMOS logic family, ensuring compatibility with various semiconductor circuits.
The CD4051BE supports a single 8:1 multiplexer and demultiplexer configuration.
The output type of this device is CMOS, which is characteristic of its design.
This model supports through-hole mounting, making it easy to integrate into PCB designs.
It is suitable for electronic circuit design, testing instruments, signal processing, and automation systems.
The country of origin for the CD4051BE is India.
