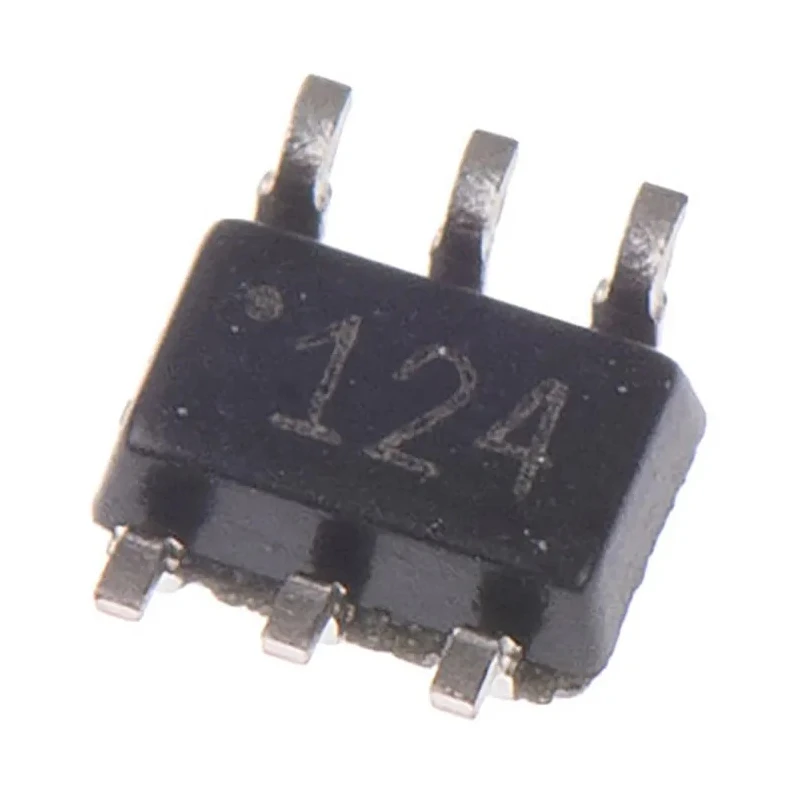

Texas Instruments 1 3-Input Multifunction Schmitt Trigger Input Logic Gate 6-Pin SC-70 SN74LVC1G97DCKR

Texas Instruments SN74LVC1G97DCKR is a high-performance 3-input multifunction Schmitt trigger input logic gate housed in a compact 6-pin SC-70 surface mount package. Designed for low-voltage CMOS logic families, it operates efficiently at voltages from 1.65 V to 5.5 V, making it suitable for a variety of electronic designs including industrial control systems, embedded computing, communication devices, and power management circuits.

This single gate logic device utilizes Schmitt trigger inputs to provide superior noise immunity and clean signal transitions, enhancing system stability and reducing errors. It features a maximum propagation delay time of 6.1 ns under typical load conditions, allowing for high-speed switching.

The device package measures 2 mm in length and 900 micrometers in height, making it ideal for compact PCB layouts where space constraints are critical. The operating temperature window of -40°C to 85°C ensures dependable operation in industrial and harsh environments.

Output signals are CMOS compatible and support input logic levels from LVTTL and TTL families, providing wide compatibility for interfacing with various microcontrollers and logic systems. The chip includes robust latch-up immunity exceeding 100 mA according to JESD 78 Class II, ensuring device reliability under transient electrical disturbances. It also meets stringent electrostatic discharge (ESD) protection standards beyond JESD 227.

Multifunction 3-input logic gate with Schmitt trigger inputs improves signal integrity and system noise margins. Wide supply voltage range from 1.65 V to 5.5 V supports flexible system design requirements. Compact 6-pin SC-70 package enables dense PCB integration in space-constrained applications.

Extended industrial temperature range provides operational reliability in harsh conditions. CMOS outputs compatible with LVTTL/TTL logic levels for versatile connectivity. Exceeds latch-up and ESD protection standards for enhanced device robustness.

This logic IC is ideal for use in industrial automation, electronic instrumentation, communication systems, and laboratory equipment where precise logic control and noise immunity are essential. Proper implementation improves circuit stability and operational efficiency of complex electronic assemblies.
