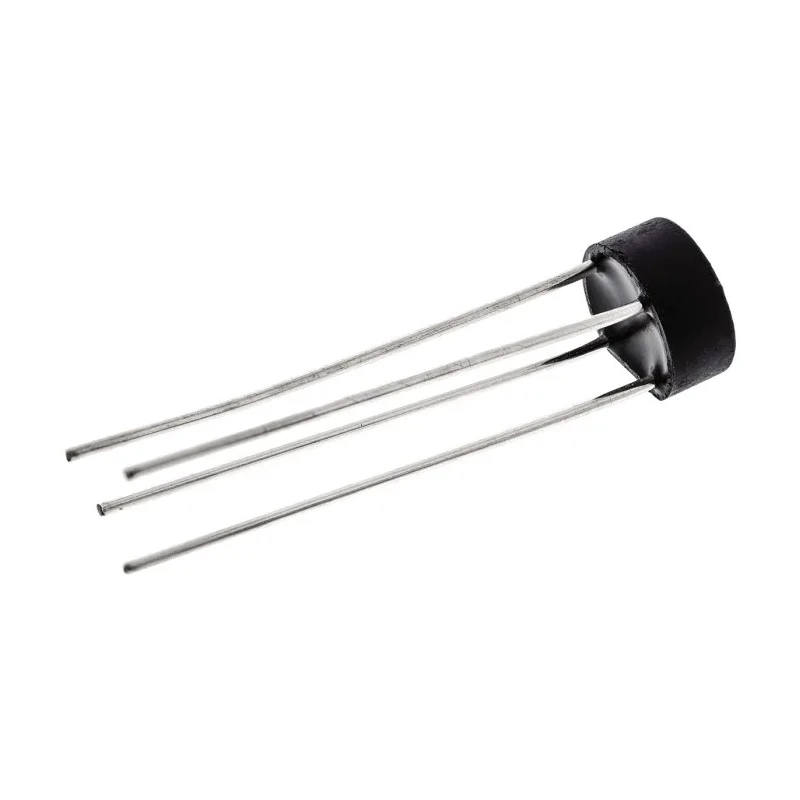

Vishay Bridge Rectifier 400 V 50 A 4-Pin Through Hole Package W04G-E4/51

Vishay W04G-E4/51 Bridge Rectifier is a high-performance semiconductor device designed to convert alternating current (AC) input into direct current (DC) output through full-wave rectification. This bridge rectifier with a 4-pin single configuration is packaged for through hole mounting making it suitable for printed circuit boards in various electrical and electronic devices.

With a peak reverse repetitive voltage rating of 400 V and a continuous forward current capacity of 1.5 A, the device is engineered to withstand high-voltage conditions reliably. It supports a peak surge current of 50 A allowing it to handle transient surges without damage. The maximum operating temperature of 150 °C ensures durability even in thermally challenging industrial or commercial environments.

The rectifier features silver plated leads which offer excellent solderability per J-STD-002 and JESD22-B102 standards, enhancing the stability of electrical connections. The molding compound used meets UL 94 V-0 flammability rating, bolstering safety. Its compact dimensions (9.86 mm length, 8.84 mm width, 5.6 mm height) allow integration in space-constrained designs.

Supports peak reverse repetitive voltage of 400 V. Forward current rating of 1.5 A. Silver plated solderable leads for reliability. High surge current capacity of 50 A. Molding compound with UL 94 V-0 rating. Operating temperature range from -55 °C to 150 °C.

Compact through hole package suitable for PCB mounting. UL recognized component, file number E54214. Ideal for power supplies, adapters, chargers, and lighting ballasts.

This Bridge Rectifier by Vishay is widely used in industrial, commercial, and consumer applications requiring reliable AC/DC conversion such as in power supply units, battery chargers, lighting electronic ballasts, and adapters. Designed to meet demanding thermal and electrical conditions, it provides consistent performance ensuring stable output voltages in full-wave rectification circuits.
