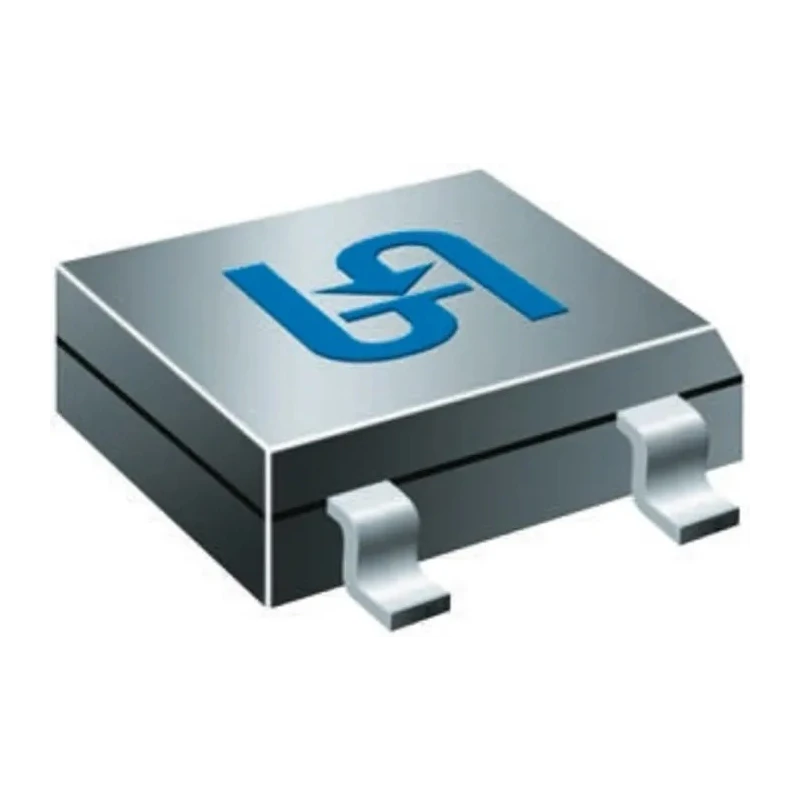

Taiwan Semiconductor Bridge Rectifier Surface Mount 800 V 50 A 4-Pin Single DBLS206G RD

Taiwan Semiconductor DBLS206G RD Bridge Rectifier is a surface mount, four-pin single configuration semiconductor designed for converting alternating current (AC) input into direct current (DC) output in a reliable and efficient manner. With a peak reverse repetitive voltage (Vrrm) of 800 V and a forward current of 2 A, it is suitable for various electronic and power conversion applications in industrial, automotive, and electronic manufacturing contexts.

The rectifier operates reliably over a wide temperature range from -55°C to a maximum operating temperature of 150°C. Its glass passivated junction design ensures high surge current capability with a peak non-repetitive forward surge current rating of 50 A, alongside a low peak forward voltage of 1.15 V and minimal peak reverse current of 10 μA, contributing to efficient power handling and energy conservation.

The device package type DBLS enables surface mounting on printed circuit boards (PCBs), facilitating automated placement and assembly in modern electronic manufacturing lines. Its compact dimensions of length 8.51 mm, width 6.5 mm, and height 2.6 mm make it suitable for space-constrained circuit designs.

Certified compliant to the automotive AEC-Q101 standard, this bridge rectifier is robust for use in automotive systems demanding high reliability and performance. Its construction using molded plastic technology affords enhanced durability and cost-effective production.

Designed for PCB surface mount applications with DBLS package. Operates reliably within temperatures from -55°C to 150°C. Features a peak forward voltage of 1.15 V and low peak reverse current of 10 μA. Glass passivated junction provides high surge current capability.

Automotive-grade compliant with AEC-Q101 standard. Compact dimensions: length 8.51 mm, width 6.5 mm, height 2.6 mm. Ideal for rectifying alternating current into direct current efficiently. Constructed using molded plastic technology for durability.

This bridge rectifier is widely used across electronic manufacturing, industrial automation, HVAC systems, power supply units, and automotive electronics, ensuring dependable conversion of AC to DC within specified voltage and current ratings.
