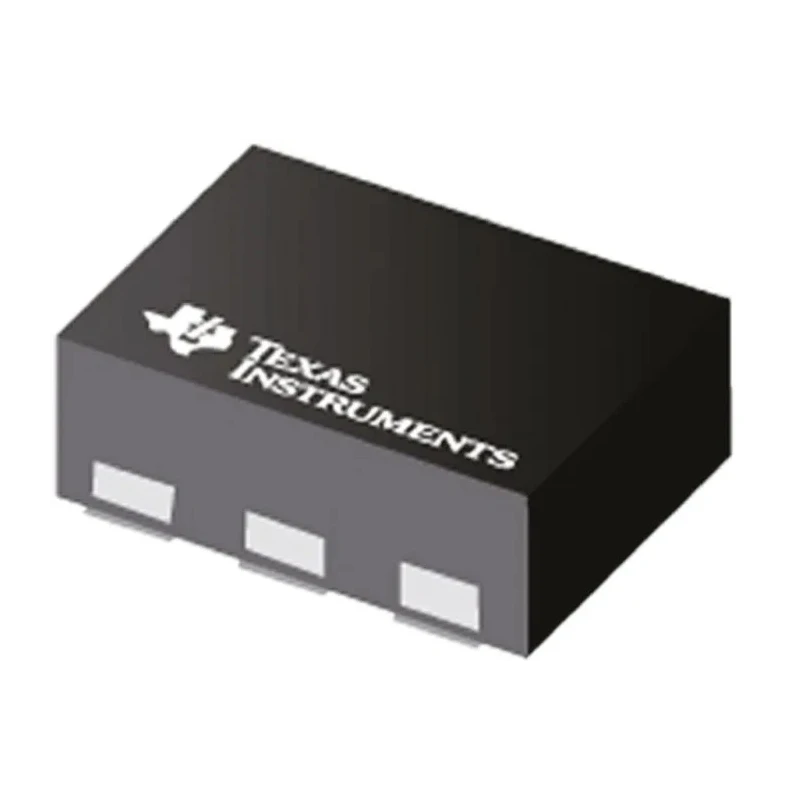

Texas Instruments 3-Element Uni-Directional TVS Diode Array 60 W, 6-Pin SON TPD4S012DRYR

Texas Instruments TPD4S012DRYR is a 3-element uni-directional TVS diode array designed for high-reliability electrostatic discharge protection in sensitive electronic interfaces. This device offers a robust peak pulse power dissipation of 60 W while housed in a compact 6-Pin SON surface mount package, making it ideal for space-constrained applications requiring high ESD resilience.

The diode array features a complex diode configuration with three elements per chip, optimized for transient voltage suppression across multiple data and video lines. Its minimum breakdown voltage of 20 V ensures effective protection without compromising normal circuit operation.

Suitable for applications such as DVI, HDMI, IEEE1394, USB, Ethernet, and video line protection, it complies with IEC61000-4-2 level 4 standards, supporting maximum peak pulse currents up to 3 A. The device's ultra-low capacitance design minimizes signal distortion, critical for preserving data integrity in high-speed data communication.

Operating across a wide temperature range from -40°C to 85°C, this diode array guarantees performance stability under harsh environmental conditions. The compact dimensions (1.5 mm length, 1.05 mm width, and 0.55 mm height) facilitate integration into densely packed printed circuit boards in industrial, commercial, and consumer electronics.

This TVS Diode Array protects critical data lines from transient voltage and ESD events. The uni-directional complex array configuration allows versatile application across multiple signal lines. It provides IEC61000-4-2 level 4 ESD protection suitable for stringent compliance requirements.

Surface mount 6-Pin SON packaging enables optimized PCB layout and assembly efficiency. The diode array operates reliably from -40°C up to 85°C for diverse environmental conditions. Its low capacitance design supports high-speed digital data communication without signal degradation.

Designed specifically for industrial, laboratory, and commercial electronics requiring transient voltage protection. The device supports peak pulse power dissipation of 60 W and peak pulse current of 3 A for robust transient suppression.

Compliant with industry standards ensuring long-term reliability and quality assurance. Explore more Texas Instruments semiconductor products at EnvMart for reliable, high-performance solutions in your electronic designs.
