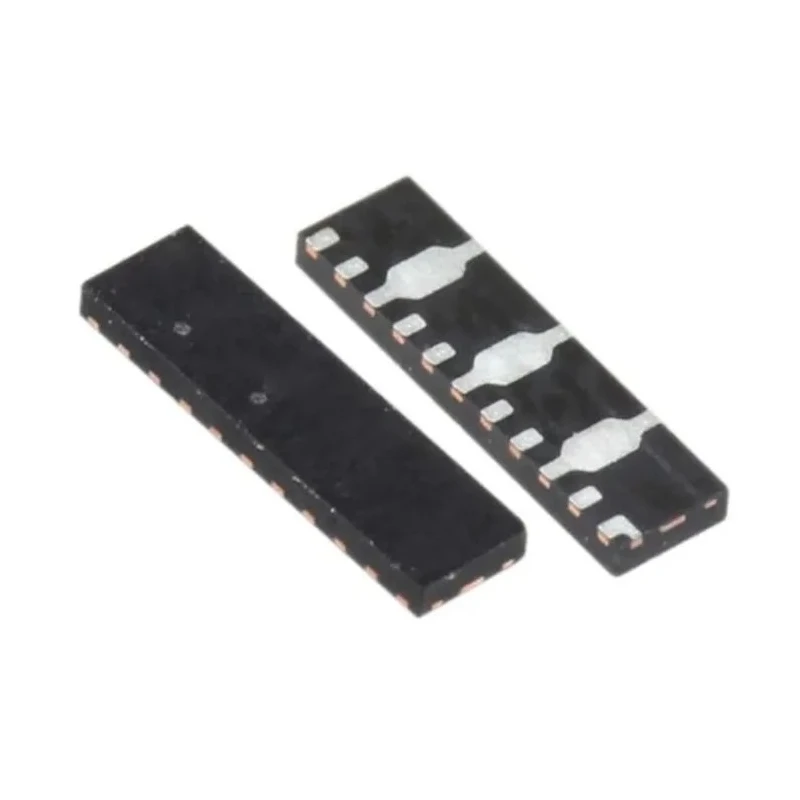

onsemi 8-Element Uni-Directional ESD Protection Array, Surface Mount, 14-Pin UDFN, 5.5V Breakdown, ESD8008MUTAG

The onsemi ESD8008MUTAG is an 8-element uni-directional ESD protection array housed in a compact 14-pin UDFN surface mount package. Designed for safeguarding high speed differential pairs, this device offers ultra-low capacitance and low ESD clamping voltage, making it ideal for protecting voltage-sensitive high speed data lines across industrial, automotive, and electronic applications.

The flow-through package architecture facilitates straightforward PCB layout and ensures matched trace lengths, preserving consistent signal impedance for high-speed communication lines. With a minimum breakdown voltage of 5.5V and a maximum reverse stand-off voltage of 3.3V, the ESD8008MUTAG provides reliable circuit protection under normal operation and during transient ESD events.

The array supports up to 16A peak pulse current, ensuring robust defense against high energy ESD surges, while boasting a maximum capacitance of just 0.35pF to maintain data rates up to 6Gb/s. Deep snap-back SCR technology delivers ultra-low clamping voltage during ESD events, further minimizing risk to sensitive data lines.

This device is fully compatible with AEC-Q101 automotive standards, supporting demanding environments and wide operating temperatures from -55°C to 125°C. The surface mount UDFN package (5.5mm length x 1.5mm width x 0.5mm height) occupies minimal board space while offering 14 robust pins for versatile integration.

Primary applications include protection for computing equipment, LCD TVs, LVDS lines, V-by-One HS, Displayport interfaces, and other electronics requiring high speed data transmission. The device is especially suited for industrial, automotive, laboratory, and commercial electronic assemblies.

Key features include maximum reverse leakage current of 500nA, ESD compliance, and an array of eight protection elements per chip. Clamping voltage is rated at 8.1V and test current is 1mA, ensuring precise response during electrical surges.

With its high performance, reliability, and compact footprint, the onsemi ESD8008MUTAG is a preferred choice for designers specifying ESD protection for modern electronics. Explore more TVS Diode Arrays and ESD protection solutions in the EnvMart semiconductor catalog.
