Littelfuse Bi-Directional TVS Diode Array 450W 5V SOD-323 SD05C-01FTG

Free Delivery in India | Lowest Global Shipping Charges

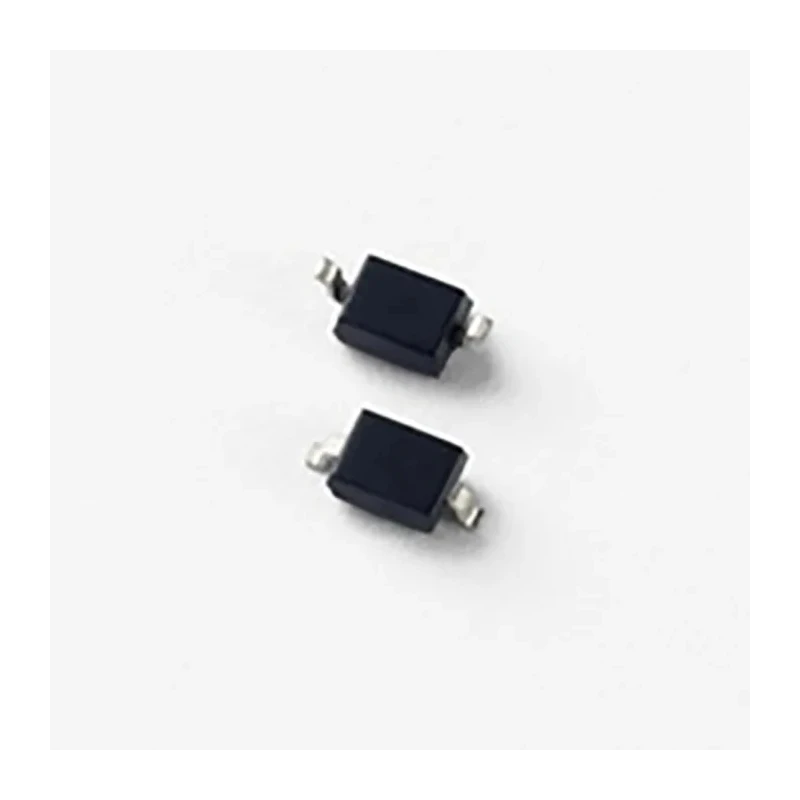

Littelfuse Bi-Directional TVS Diode Array 450W 5V SOD-323 SD05C-01FTG

Name: Littelfuse Bi-Directional TVS Diode Array 450W 5V SOD-323 SD05C-01FTG
Brand: LITTELFUSE
SKU: 81289
Price: 0.22 USD
Availability: InStock



Category TVS Diode Array Brand LITTELFUSE Condition New

Specifications

Country of Origin	Switzerland
Brand	Littelfuse
Height	1.04mm
Length	1.9mm
Model	SD05C-01FTG
Width	1.45mm
Mount Type	Surface
Series	SD-C
Maximum Operating Temperature	125°C
Package Type	SOD-323
Minimum Operating Temperature	-40°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	14.5V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	6V
Maximum Reverse Stand-off Voltage Vwm	5V
Peak Pulse Power Dissipation Pppm	450W
Maximum Peak Pulse Current Ippm	30A
Maximum Reverse Leakage Current	1μA

Key Features

Provides up to 450W peak pulse power dissipation for safeguarding sensitive circuits.
Bi-directional, single element design for enhanced protection against electrostatic discharges and surge currents.
Low dynamic resistance and maximum reverse leakage current of only 1μA for improved reliability and efficiency.
Wide operating temperature range of -40°C to 125°C for dependable performance in diverse environments.
Compact surface-mount SOD-323 package compatible with standard 0805 PCB footprints.
Features 5V maximum reverse stand-off voltage and clamping voltage of 14.5V.
Suitable for use in point-of-sale terminals, test equipment, medical devices, and computer peripherals.
Automotive standard AEC-Q101 compliant and offers reliable ESD protection up to ±30kV.

Product Description

The Littelfuse SD05C-01FTG Bi-Directional TVS Diode Array is a high-performance discrete device engineered to protect sensitive electronic circuits from damaging electrostatic discharge (ESD) and lightning-induced surge currents. Designed with a single bi-directional element, this device is capable of dissipating up to 450 watts of peak pulse power, making it especially suitable for demanding industrial and commercial applications where transient suppression is critical.

Utilizing a robust SOD-323 surface-mount package, the SD05C-01FTG fits seamlessly onto standard 0805 PCB footprints, enabling easy integration into new or existing hardware layouts. The diode array offers a 5V maximum reverse stand-off voltage and clamps surge voltages to 14.5V for enhanced downstream circuit protection. Its fast-acting characteristics allow it to safely absorb repeated ESD strikes at up to ±30kV, with no detectable degradation in performance or reliability.

Engineered with a low dynamic resistance of just 0.6 ohms and an exceptionally low maximum reverse leakage current of only 1μA, the SD05C-01FTG ensures high energy absorption with minimal standby losses, making it ideal for low-power and battery-operated devices. This model also meets the rigorous requirements of automotive standard AEC-Q101, reflecting its suitability for automotive electronics.

The Littelfuse SD05C-01FTG operates reliably across a wide temperature range from -40°C to 125°C and is constructed to meet the needs of environments where robust and repeatable protection against over-voltage transients is essential. It is commonly deployed in point-of-sale terminals, test and measurement equipment, medical instrumentation, desktop and notebook computers, servers, and various computer peripherals.

Key features include bi-directional protection, single-chip design, and excellent surge-handling capability. Its compact form factor allows for efficient board space utilization without compromising performance. The SD05C-01FTG ensures compliance with strict ESD protection standards and is well-suited for safeguarding devices such as buttons, keypads, switches, DC power ports, and other low-speed I/O lines.

For industrial, laboratory, and electronics manufacturing sectors, this Littelfuse TVS diode array serves as a reliable, high-reliability component for protecting valuable electronic assets against damaging transients.

Explore more Littelfuse surge protection solutions and TVS Diode Arrays in the Semiconductor category on EnvMart.
