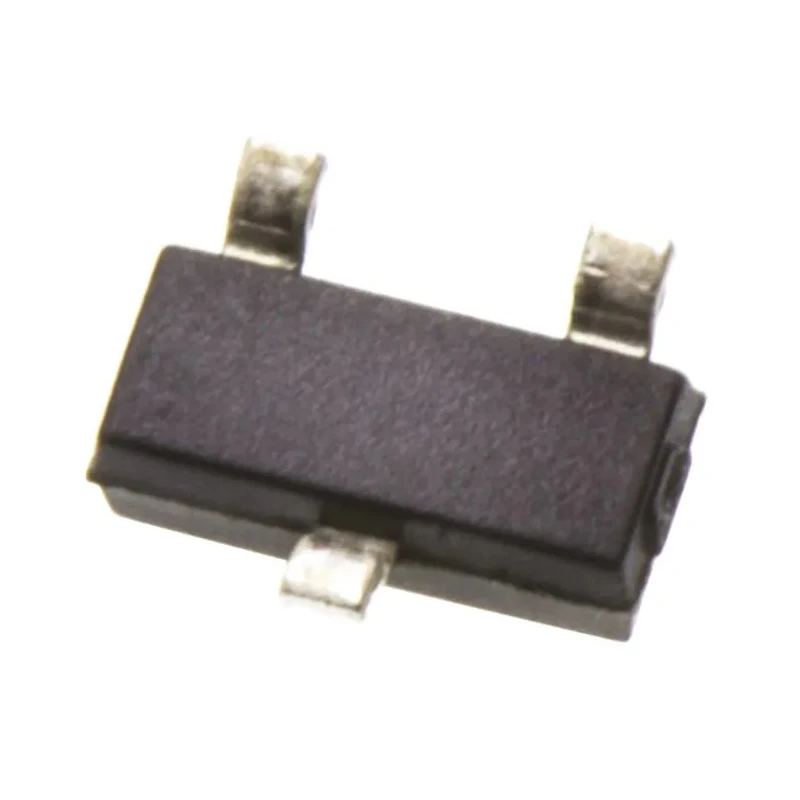

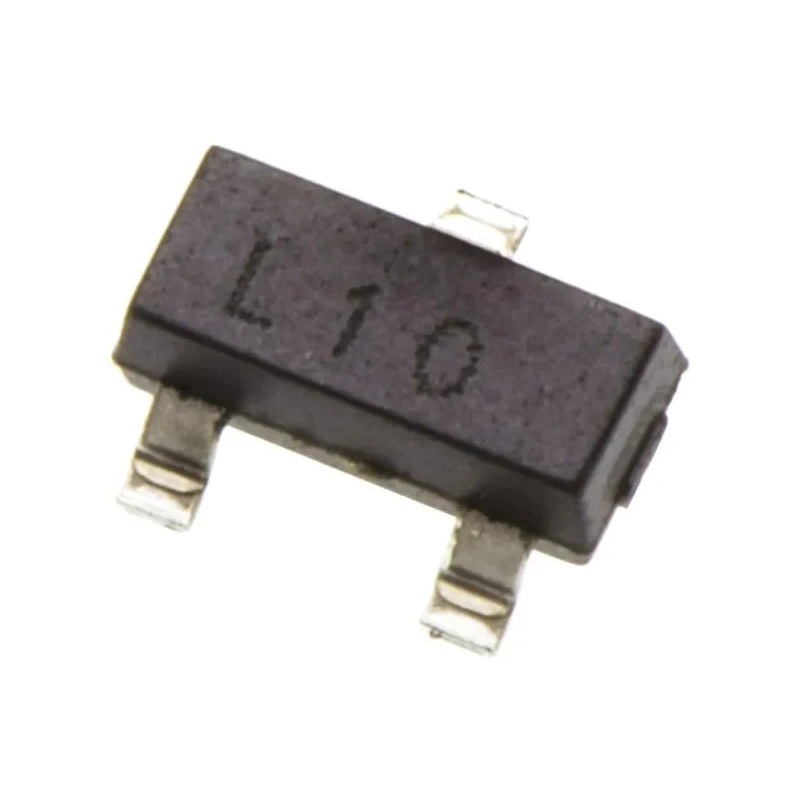

DiodesZetex Low Leakage Single Schottky Diode 40 V 1.1 A 3-Pin SOT-23 ZLLS1000TA

Name: DiodesZetex Low Leakage Single Schottky Diode 40 V 1.1 A 3-Pin SOT-23 ZLLS1000TA
Brand: DiodesZetex
SKU: 145197
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1mm
Length	3.05mm
Model	ZLLS1000TA
Width	1.4mm
Mount Type	Surface
Series	ZLLS1000X
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-55°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1.1A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Low Leakage
Peak Reverse Current Ir	20μA
Peak Non-Repetitive Forward Surge Current Ifsm	6.4A
Maximum Forward Voltage Vf	660mV
Peak Reverse Recovery Time trr	4ns

Key Features

Features a compact 3-pin SOT-23 surface mount package.
Maximum forward voltage of 660 mV for efficient power handling.
Peak reverse current of 20 μA contributes to minimal leakage.
Operates reliably from -55°C to 150°C ambient temperatures.
Fast peak reverse recovery time of 4 ns for high speed switching applications.
Has a robust peak non-repetitive forward surge current rating of 6.4 A.
Implements AEC-Q101 automotive standard for enhanced reliability.
Low leakage characteristic reduces power losses in circuits.

Product Description

DiodesZetex ZLLS1000TA is a low leakage single Schottky diode designed for surface mounting in a compact 3-pin SOT-23 package. It features a maximum continuous forward current of 1.1 A and a peak reverse repetitive voltage of 40 V, making it suitable for reliable power rectification in various industrial and automotive applications.

This diode offers a low forward voltage drop of 660 mV which enhances efficiency and reduces power dissipation. Its peak reverse current is limited to 20 μA, ensuring minimal leakage and improved circuit performance. The device operates over a wide temperature range from -55°C to 150°C, suitable for harsh environments.

With a fast peak reverse recovery time of 4 ns, the ZLLS1000TA diode supports high-speed switching circuits. It withstands peak non-repetitive forward surge currents up to 6.4 A, providing robustness during transient load conditions.

The diode meets the automotive AEC-Q101 standard, assuring quality and reliability for automotive electronics. Its small footprint and height of just 1 mm allow space-saving designs on printed circuit boards.

Common applications include power supply rectifiers, voltage clamping, freewheeling diodes in motors, and other electronic circuits requiring low leakage and high efficiency. The product is made in China and is suitable for industrial, automotive, and commercial sectors.

Features a compact 3-pin SOT-23 surface mount package. Maximum forward voltage of 660 mV for efficient power handling. Peak reverse current of 20 μA contributes to minimal leakage. Operates reliably from -55°C to 150°C ambient temperatures.

Fast peak reverse recovery time of 4 ns for high speed switching applications. Has a robust peak non-repetitive forward surge current rating of 6.4 A. Implements AEC-Q101 automotive standard for enhanced reliability. Low leakage characteristic reduces power losses in circuits.

Dimensions approximately 3.05 mm length, 1.4 mm width, and 1 mm height. Ideal for power supply, automotive, and industrial electronic circuits. Explore the extensive range of Schottky diodes and rectifiers at EnvMart for industrial-grade semiconductor solutions.
