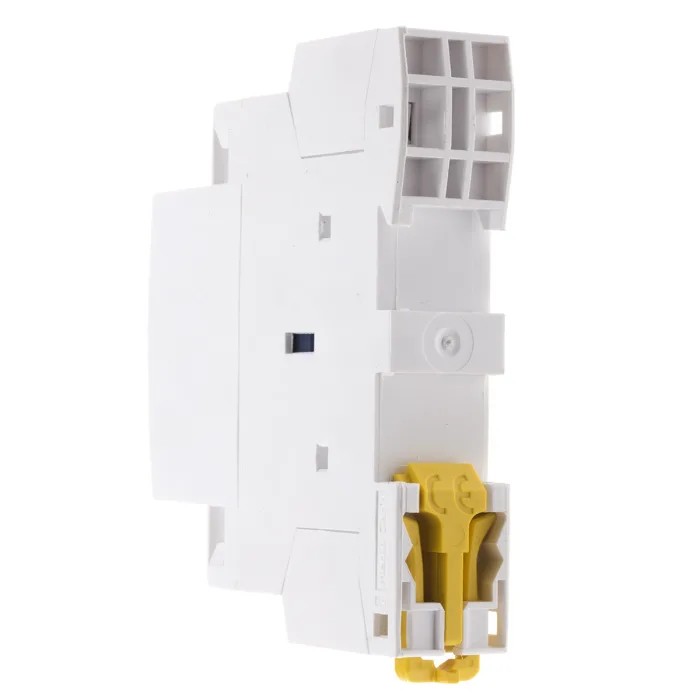

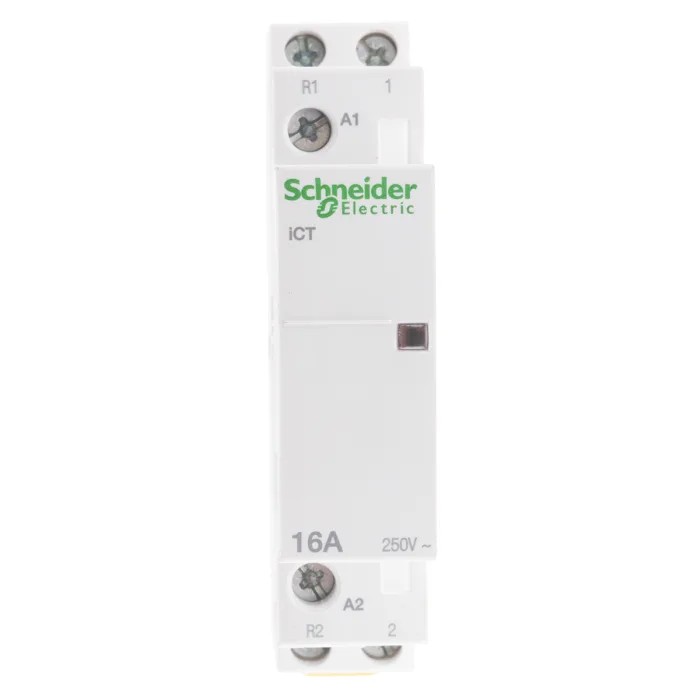

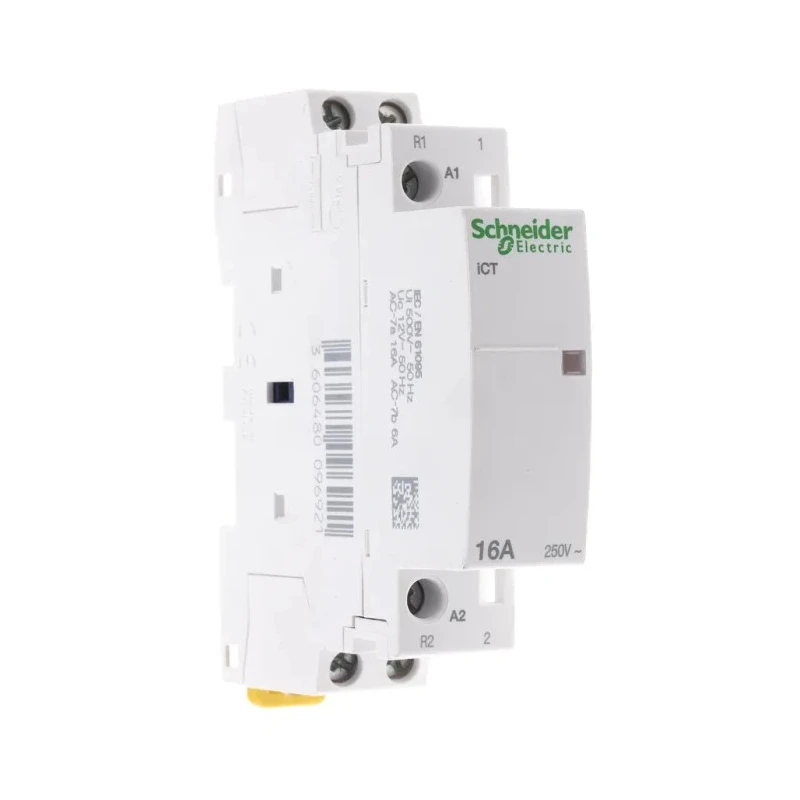

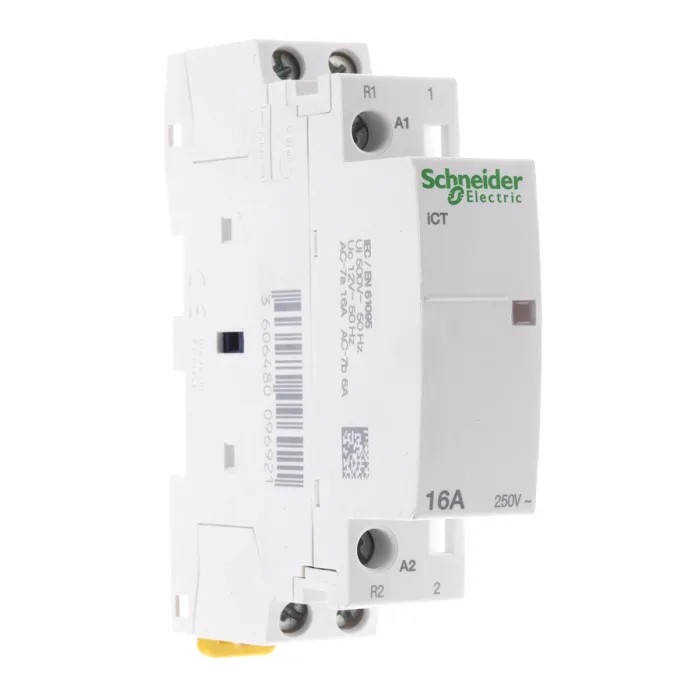

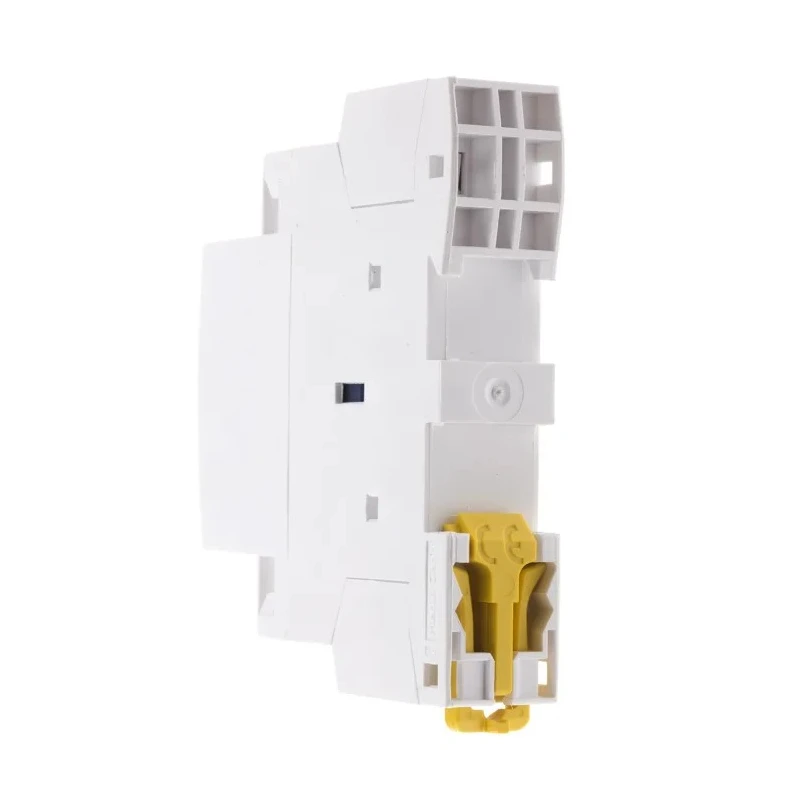

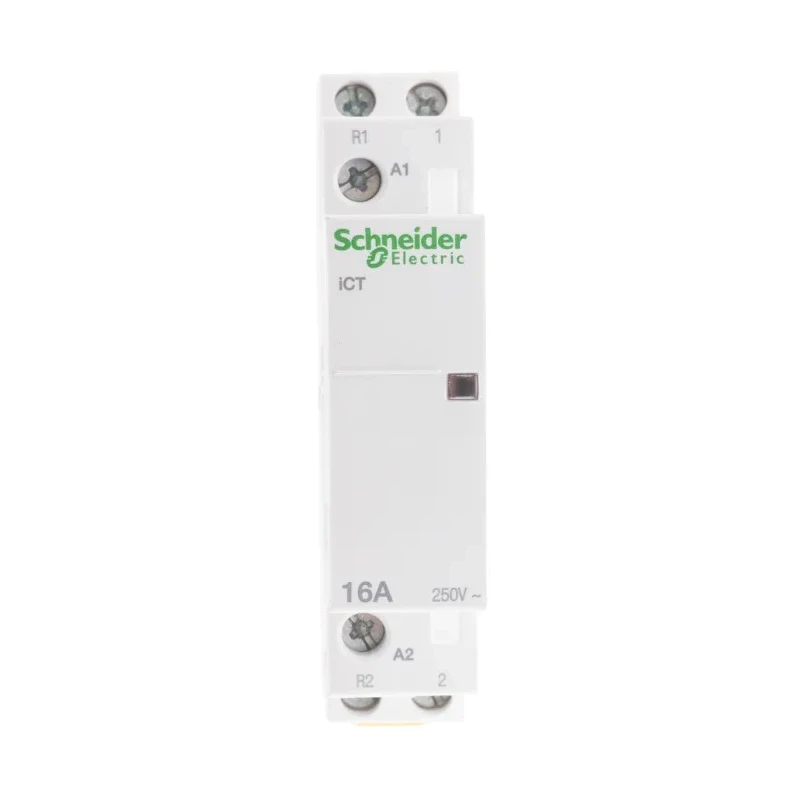

Schneider Electric Acti9 iCT Contactor 12V AC Coil 2-Pole 16A 1 NO/1 NC 250V AC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 18mm |
| Model | Acti9 |
| Depth | 68mm |
| Width | 81mm |
| Mount Type | DIN Rail |
| Series | Acti9 iCT |
| Power Rating | 1.3W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 61095, RoHS |
| Contact Voltage | 250V ac |
| Coil Voltage | 12V ac |
| Normal State Configuration | 1 NO/1 NC |
| Contact Current | 16A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 16A |
| Control Circuit Voltage Uc | 12V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 2P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| Better World Verification | Byggvarubedömningen |
| Class-2 insulation | continuous safety for operators and unqualified personnel |
Key Features
- The contactor operates at 250V AC contact voltage for robust performance.
- Equipped with 1 NO (normally open) and 1 NC (normally closed) contacts for versatile switching.
- Features a power rating of 1.3 W at 12V AC coil to ensure efficient operation.
- Mount type is DIN Rail, facilitating easy installation and maintenance.
- Includes screw terminals with IP20 finger-safe protection and international marking.
- Operational temperature ranges from -5°C to 60°C, suitable for various environments.
- Complies with IEC/EN 61095 standards and RoHS to guarantee safety and reliability.
Product Description
Schneider Electric A9C22015 Acti9 iCT Contactor features a 12V AC coil and is designed for efficient motor control with a contact current rating of 16A and 2 poles. It operates at a contact voltage of 250V AC with a power consumption of 1.3 W.
This compact device is DIN rail mountable with dimensions of 18mm length, 81mm width, and 68mm depth. It includes 1 normally open and 1 normally closed contact for flexible switching functions and supports motor control applications with a control circuit voltage of 12V AC.
The screw terminals are IP20 finger-safe, labeled with North American and international markings, providing secure and safe connections. The contactor can operate reliably in temperatures ranging from -5°C to 60°C, making it suitable for industrial and HVAC systems, manufacturing plants, and commercial electrical control panels.
Engineered with class-2 insulation, it offers continuous safety for operators and unqualified personnel, meeting IEC/EN 61095 and RoHS standards. Additionally, built-in auxiliary contacts enhance switching capabilities.
The power rating of 1.3W ensures energy efficiency during continuous operation. The product is verified under the Better World initiative for sustainability. Spacers are recommended when mounting multiple contactors on a DIN rail to dissipate heat effectively.
Suitable for controlling both single-phase and three-phase load switching applications. Compact design aids in space-saving within electrical control systems. Ideal for industrial automation, electrical installations, and motor control applications requiring reliable and safe switching performance.
Explore more Schneider Electric products and Contactors at EnvMart for quality industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor operates at a contact voltage of 250V AC, ensuring robust performance for various applications.
This model features a coil voltage of 12V AC, which is essential for its operation in motor control applications.
The contact current rating is 16A, allowing it to handle substantial electrical loads efficiently.
The dimensions of the contactor are 18mm in length, 81mm in width, and 68mm in depth, making it compact for installation.
It is designed for DIN rail mounting, which facilitates easy installation and maintenance in electrical control systems.
The operational temperature range is from -5°C to 60°C, suitable for various environmental conditions.
It includes 1 normally open (NO) and 1 normally closed (NC) contact, providing versatile switching options.
It complies with IEC/EN 61095 standards and is RoHS certified, ensuring safety and environmental compliance.
The contactor features IP20 finger-safe screw terminals, which provide secure connections and safety for users.
The power rating is 1.3W at 12V AC coil, ensuring efficient operation during use.
This contactor is equipped with 2 auxiliary contacts, configured as 1 NO and 1 NC, enhancing its switching capabilities.
It is suitable for motor control applications, including single-phase and three-phase load switching in various industrial settings.
