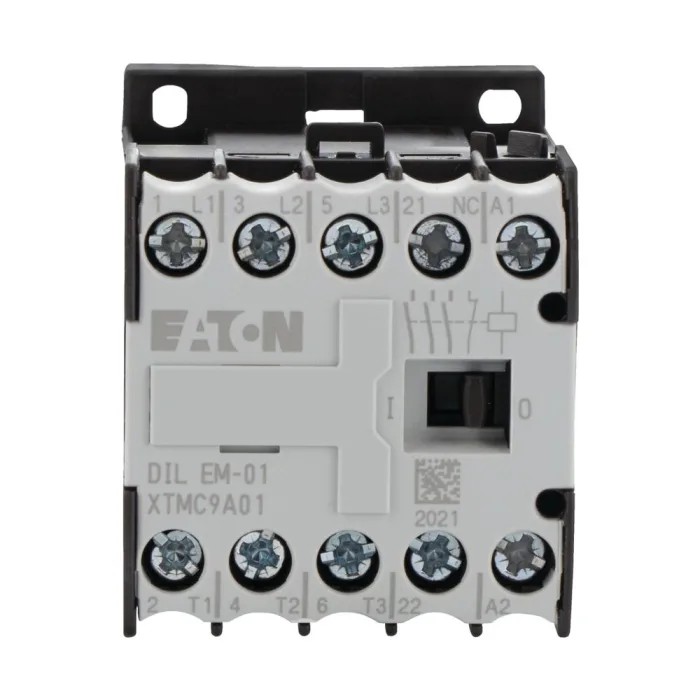

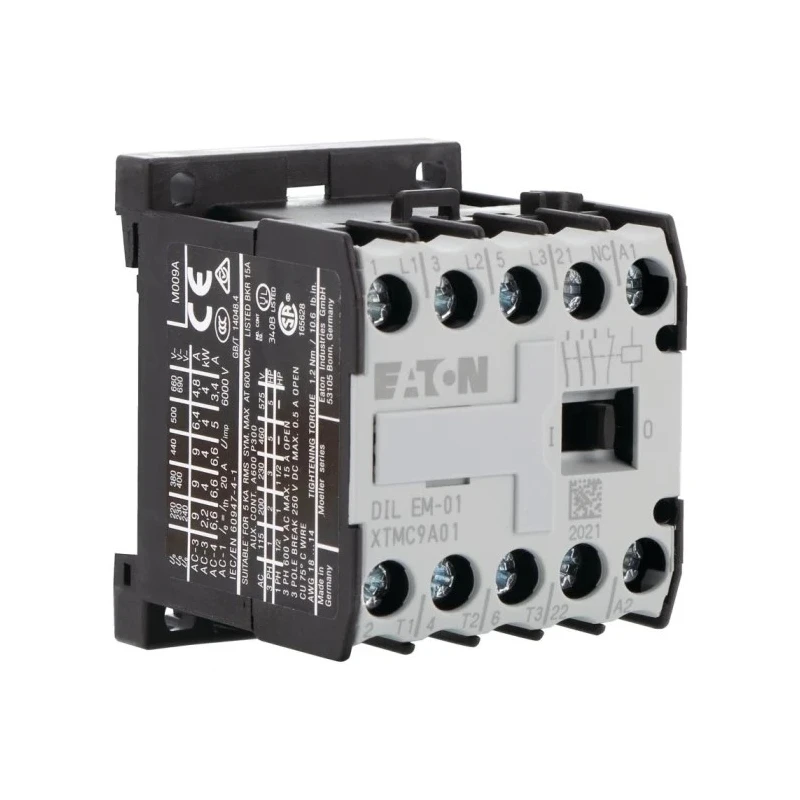

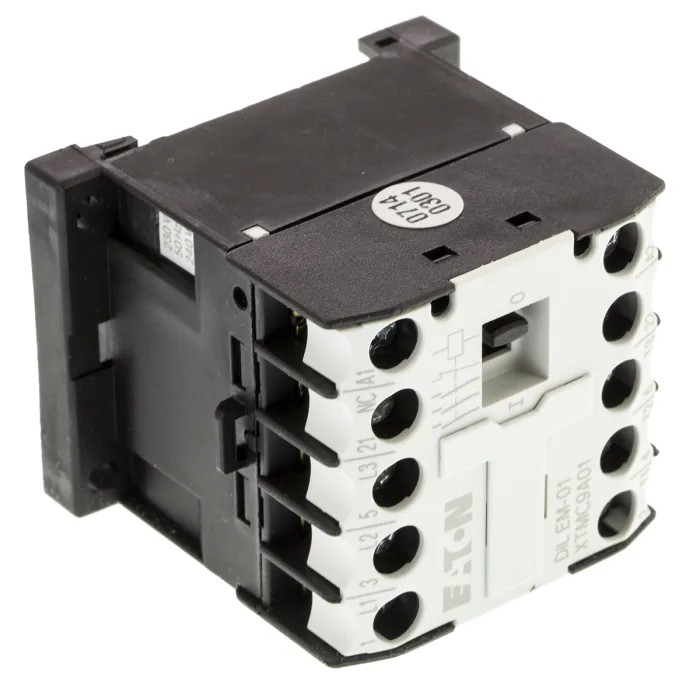

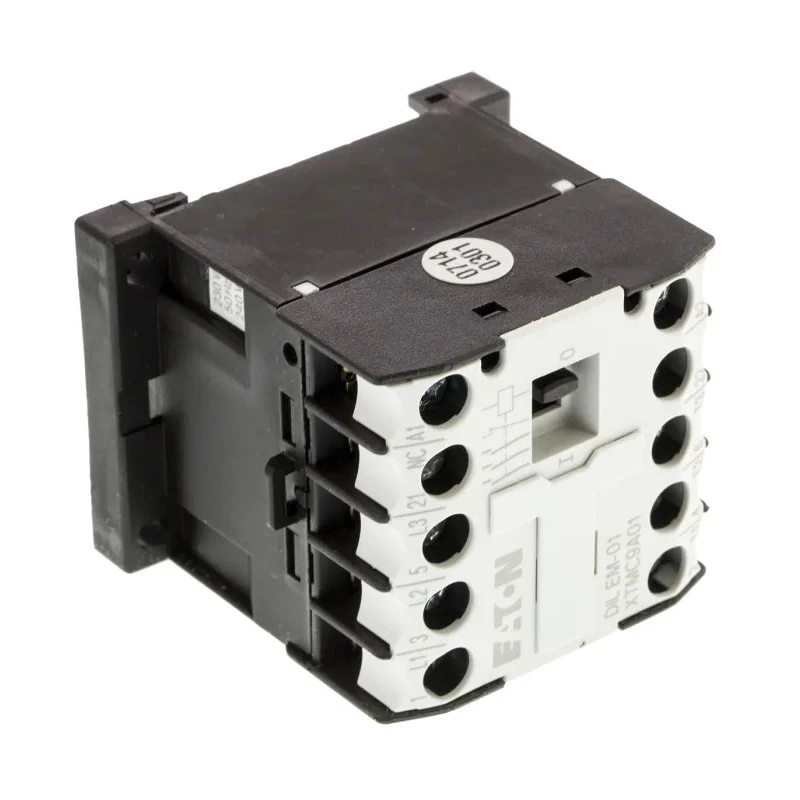

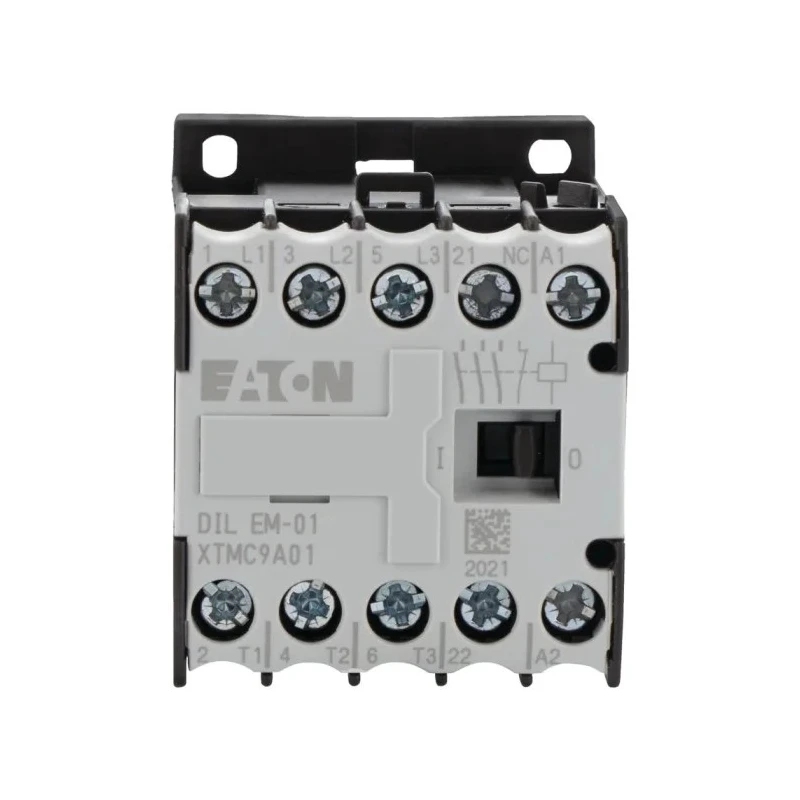

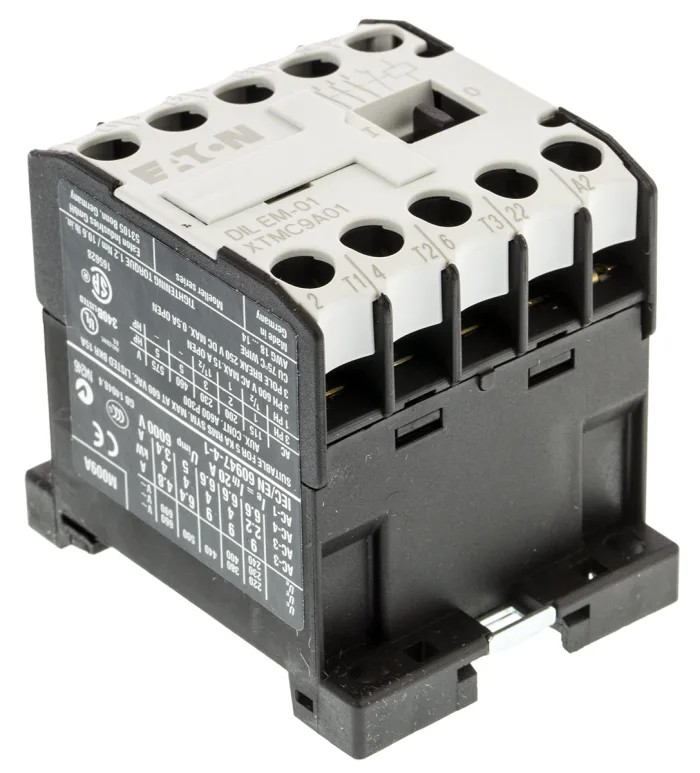

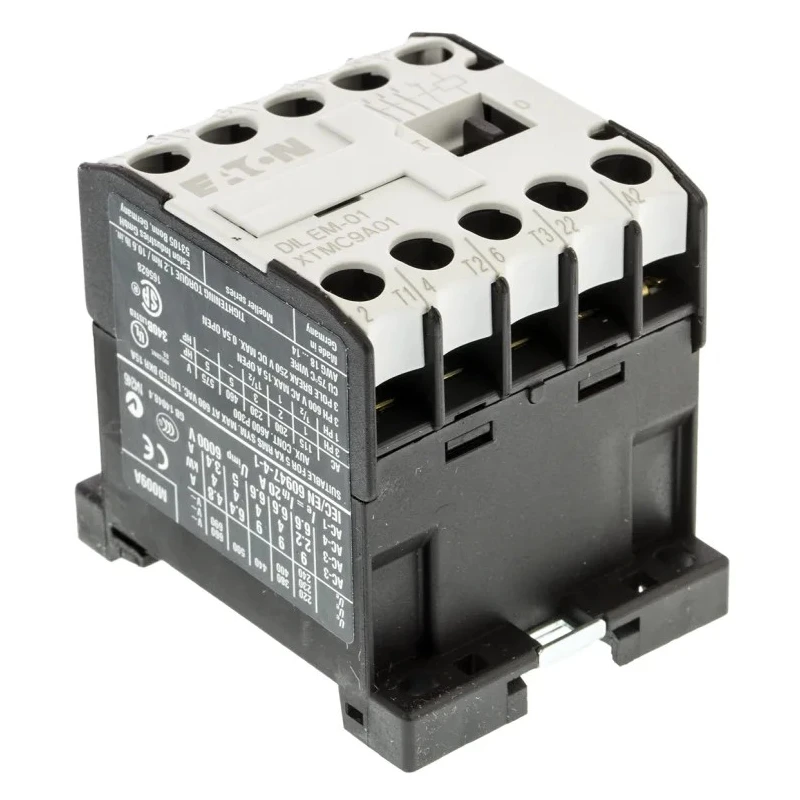

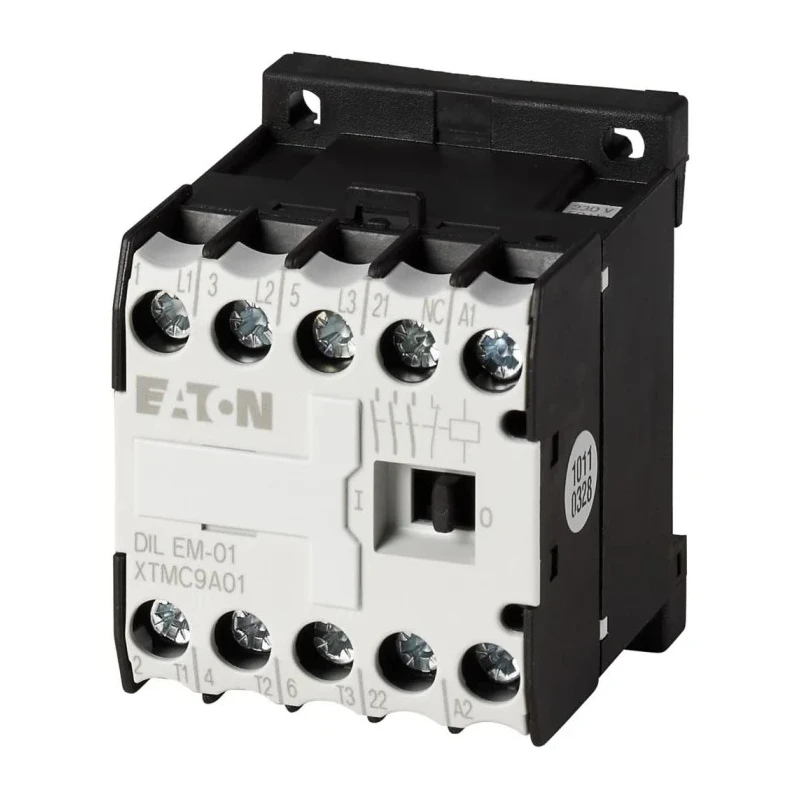

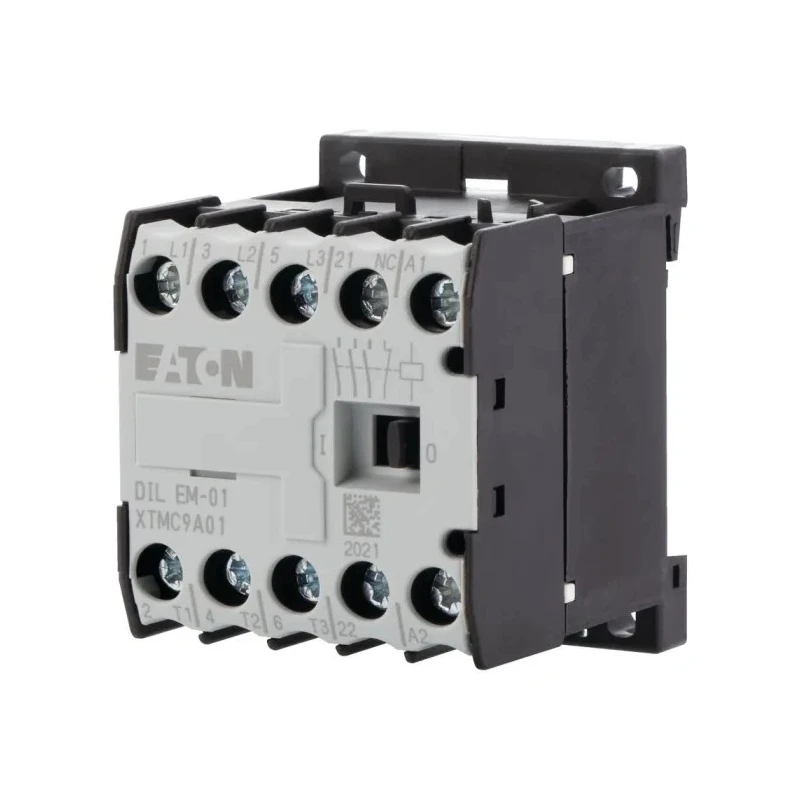

Eaton DILEM Contactor 230V AC Coil, 3-Pole, 9A, 4kW, Screw Mount, Motor Control, 051795 DILEM-01(230V50HZ,240V60HZ)
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | 051795 DILEM-01(230V50HZ,240V60HZ) |
| Depth | 83mm |
| Width | 45mm |
| Mount Type | Screw |
| Series | DILEM |
| Power Rating | 4kW |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0660, UL, IEC/EN 60947, CSA |
| Contact Voltage | 400V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3P |
| Impulse Withstand Voltage | 6000V AC |
| Eaton Contactor, 400 V Coil, 3-Pole, 9 A, 4 kW, 1NCBrand | Eaton |
| Maximum Heat Loss | 1.8W |
Key Features
- Operates at 230V AC coil voltage for reliable switching.
- Features a three-pole configuration suitable for both single-phase and three-phase systems.
- Supports a maximum contact current of 9A and power rating up to 4kW.
- Designed for screw mounting and easy DIN rail installation.
- Includes a 1NC auxiliary contact for enhanced control and signaling.
- Suitable for motor control and resistive load applications in industrial environments.
- Withstands impulse voltages up to 6000V AC for surge protection.
- Complies with VDE 0660, UL, IEC/EN 60947, and CSA standards.
Product Description
The Eaton DILEM Contactor, model 051795 DILEM-01(230V50HZ,240V60HZ), is an industrial-grade electrical switching device designed for precise motor control and resistive load management. Featuring a robust three-pole configuration and rated for a 230V AC coil voltage, this contactor is suitable for use across a variety of automation and industrial applications.
With a maximum contact current of 9A and a power rating capability up to 4kW, it is an optimal choice for activating or isolating standard industrial machinery, including motors, automated sorting systems, and lighting setups. The unit incorporates a 1NC auxiliary contact for monitoring or control signaling, ensuring operational flexibility and integration within complex automation schemes.
Engineered for durability, the contactor includes screw terminals and is ready for DIN rail mounting, facilitating straightforward installation in control panels. It is built to withstand impulse voltages of up to 6000V AC, providing excellent protection from electrical surges. Its front plate is clearly marked, supporting quick and safe terminal identification during setup and maintenance.
The device’s three-pole design supports implementation in both single-phase and three-phase circuits, expanding its compatibility across varying industrial wiring standards. It can operate efficiently in challenging environments, with a minimum operating temperature as low as -25°C and a maximum up to 40°C. The compact housing, measuring 58mm in length, 45mm in width, and 83mm in depth, allows for easy integration into space-conscious electrical enclosures.
Fully compliant with international standards including VDE 0660, UL, IEC/EN 60947, and CSA, this contactor assures reliability and quality. Typical use cases include manufacturing, material handling, HVAC, and process automation, where consistent switching performance and operational safety are critical.
Explore more industrial and automation products from Eaton and browse EnvMart’s Power Contactors category to find specialized solutions for your electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 230V AC, suitable for reliable switching in various applications.
It supports a maximum contact current of 9A, making it suitable for various motor control and resistive load applications.
This contactor has a power rating of up to 4kW, allowing it to effectively control industrial machinery.
This unit features a three-pole configuration, which is compatible with both single-phase and three-phase systems.
The dimensions are 58mm in length, 45mm in width, and 83mm in depth, allowing for compact installation in control panels.
It is designed for screw mounting, facilitating easy installation on DIN rails.
The contactor operates efficiently in temperatures ranging from -25°C to a maximum of 40°C.
It complies with several standards including VDE 0660, UL, IEC/EN 60947, and CSA, ensuring its reliability and safety in industrial applications.
Yes, it includes one normally closed (1NC) auxiliary contact for enhanced control and signaling capabilities.
It can withstand impulse voltages of up to 6000V AC, providing protection against electrical surges.
It is suitable for motor control and resistive load applications in industrial environments, including manufacturing and process automation.
The contactor features screw terminals, which facilitate secure and reliable electrical connections.
