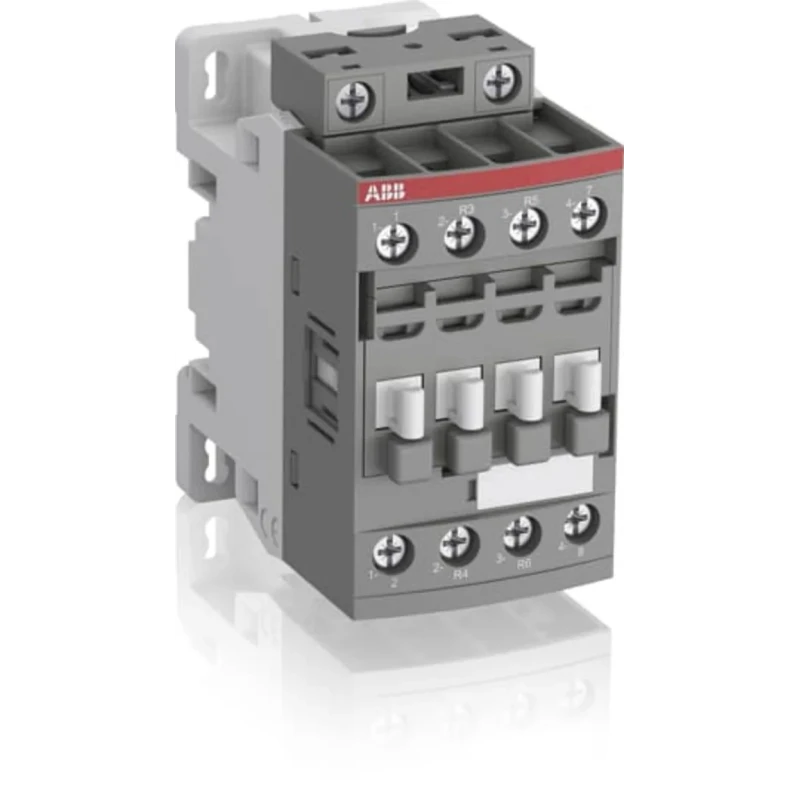

ABB AF Contactor 1SBL136501R2000 AF09Z-22-00-20, 4-Pole, 25A, 4 kW, 12 - 20V Coil, 2 NO/2 NC
Specifications
| Country of Origin | France |
|---|---|
| Brand | ABB |
| Function | Motor Control |
| Length | 86mm |
| Model | 1SBL136501R2000 AF09Z-22-00-20 |
| Depth | 77mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | AF |
| Power Rating | 4kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | IEC/EN 60947-4-1 |
| Coil Voltage | 12, 20V |
| Normal State Configuration | 2 NO/2 NC |
| Contact Current | 25A |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 20V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
Key Features
- Suitable for industrial motor control up to 4 kW at 400V.
- Rated for 25A switching current with 4-pole configuration.
- Built-in surge protection enhances reliability in demanding environments.
- Features 2 NO and 2 NC contacts for flexible circuit management.
- Easy DIN rail mounting for compact electrical panels.
- Operates between -40°C and +70°C for versatile installation conditions.
- Complies with IEC/EN 60947-4-1 standards for safety and performance.
- Screw terminal connections enable fast and secure installation.
Product Description
ABB 1SBL136501R2000 AF09Z-22-00-20 AF Contactor is engineered for high-performance motor control and power circuit switching in industrial and automation environments. This contactor features a robust 4-pole design, capable of controlling motors up to 4 kW at 400V, with a 25A contact current rating. The wide control coil voltage range of 12 - 20V DC allows reliable operation in fluctuating power conditions, providing stable performance and lower energy consumption.
Ideal for diverse applications such as industrial automation, machinery motor control, and power circuit switching, the AF series contactor ensures efficient, safe operation in challenging settings. The built-in surge protection guarantees operational reliability, even under adverse electrical environments. With a compact form factor and simple DIN rail mounting, it integrates conveniently into electrical panels.
Supports both single-phase and three-phase motor control. Four-pole configuration provides robust switching for varied circuits. 2 NO/2 NC contacts give flexible device control options. Screw terminal design allows rapid installation and secure connections.
Auxiliary contact blocks can be added for expanded circuit management. Designed for reliable operation in extreme temperatures: -40°C to +70°C. Suitable for industrial applications such as automation, power distribution, and machinery.
This contactor meets IEC/EN 60947-4-1 standards, assuring commercial-grade safety and performance. With dimensions of 86mm length, 45mm width, and 77mm depth, it adds a compact but powerful solution to control system requirements. The series is ideal for settings requiring robust switching capabilities and varied control voltage tolerance.
Industrial, commercial, and manufacturing facilities benefit from the reliable performance and expandability of the ABB AF contactor. Its advanced features and wide operating parameters make it a preferred choice for panel builders, system integrators, and automation engineers. Whether used for motor starters, control panels, or switching power circuits, this product delivers proven ABB quality and durability.
Browse more ABB Contactors and Relays on EnvMart for professional installation, maintenance, and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 4 kW, suitable for controlling motors at 400V.
It is rated for a contact current of 25A, allowing for reliable operation in various applications.
The coil voltage range for this contactor is between 12V and 20V DC, providing flexibility for different control circuit requirements.
This unit features a robust 4-pole configuration, which is ideal for controlling multiple circuits.
The dimensions of this model are 86mm in length, 45mm in width, and 77mm in depth, allowing for compact installation.
It supports DIN rail mounting, making it easy to integrate into electrical panels.
This model operates effectively in temperatures ranging from -40°C to +70°C, suitable for various industrial environments.
It features screw terminal connections, which enable fast and secure installation.
The contactor has a normal state configuration of 2 normally open (NO) and 2 normally closed (NC) contacts, allowing for flexible circuit management.
It complies with IEC/EN 60947-4-1 standards, ensuring safety and performance in industrial applications.
This model is suitable for industrial automation, machinery motor control, and power circuit switching, providing versatile functionality in various settings.
Yes, auxiliary contact blocks can be added for expanded circuit management, enhancing its versatility.
