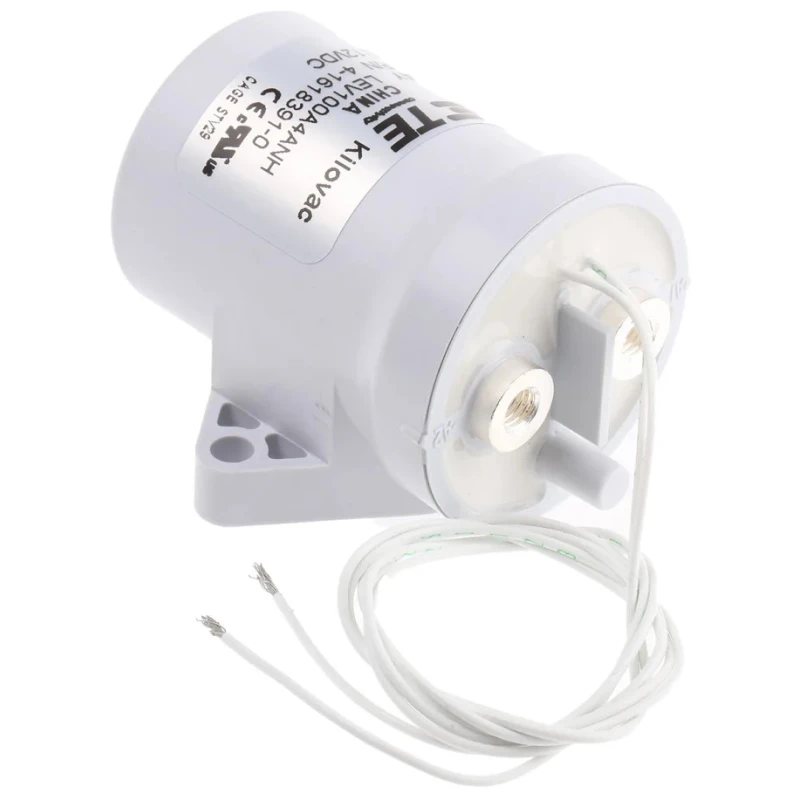

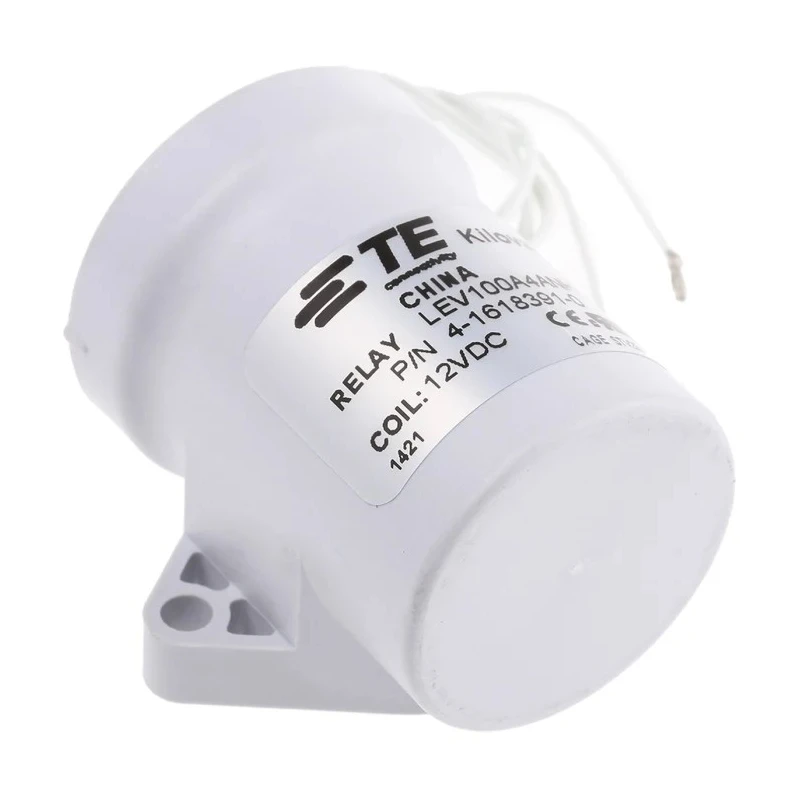

TE Connectivity Contactor, 12V DC Coil, 1-Pole, 100A, 5.5W, 900V, SPST LEV100
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Function | Safety |
| Model | LEV100 |
| Mount Type | Panel |
| Series | LEV100 |
| Power Rating | 5.5W |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Contact Voltage | 900V |
| Coil Voltage | 12V dc |
| Normal State Configuration | 1 NO |
| Contact Current | 100A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 100A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Safety |
| Pole and Throw Configuration | SPST |
| TE Connectivity EV200 Contactor, 36V Coil, 1-Pole, 500 A, NO, 900VBrand | TE Connectivity |
Key Features
- Contactor operates with a 12V DC control coil for reliable switching.
- Single-pole design rated for 100A contact current and up to 900V.
- Compact, hermetically sealed package occupying only 65.5 cm³.
- Features one auxiliary contact with 1 NO configuration for circuit status indication.
- Panel mount installation and lug ring terminal connection for secure interface.
- Wide operating temperature range from -40°C to 85°C allows versatile application.
- Supports safety and power/motor control circuit isolation in industrial or automotive systems.
- RoHS compliant ensuring standards adherence in demanding environments.
Product Description
TE Connectivity LEV100A4ANH 4-1618391-0 is an advanced single-pole contactor engineered for the isolation, control, and protection of high-voltage circuits in industrial, automotive, and machinery environments. With a 12V DC coil, it provides responsive switching suitable for demanding applications.
The contactor is capable of handling contact currents up to 100A and voltages as high as 900V DC, making it ideal for circuit protection, motor control, and backup switching requirements. The SPST configuration ensures straightforward operation and reliable isolation of power circuits.
Its compact enclosure, occupying only 65.5 cm³, is hermetically sealed and designed for intrinsic safety, offering robust protection against dust, moisture, and environmental hazards. The product includes 8kV isolation between open contacts, permitting its use in high-voltage and isolation-carry systems.
Operational flexibility is enabled by a wide temperature tolerance from -40°C to 85°C, ensuring stable performance in harsh industrial and automotive conditions. The normal state configuration is one NO contact, and an auxiliary contact (also 1 NO) is included for circuit monitoring.
Panel mount design and lug ring terminals afford easy and secure installation. The control circuit voltage matches the coil voltage at 12V DC. Applications span power and motor control isolation, circuit safety, battery switching, backup systems in industrial machinery, and automotive equipment.
Compliance with RoHS standards provides assurance of environmental consideration and regulatory adherence. This contactor delivers reliability and performance for advanced automation and power distribution systems.
Discover more TE Connectivity solutions and Contactors on EnvMart for industrial electrical, automation gear, and high-voltage circuit management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a contact current of 100A.
The coil voltage for this unit is 12V DC.
It can handle a maximum contact voltage of 900V.
The operational temperature range is from -40°C to 85°C.
This contactor features a single-pole design.
It supports panel mount installation with lug ring terminal connections for secure interfacing.
The normal state configuration includes one normally open (NO) contact.
Yes, it includes one auxiliary contact configured as normally open (1 NO).
The power rating is 5.5W.
Yes, it is RoHS compliant, ensuring adherence to environmental standards.
It is suitable for safety, power and motor control isolation, circuit safety, and battery switching applications.
The country of origin for this contactor is China.
