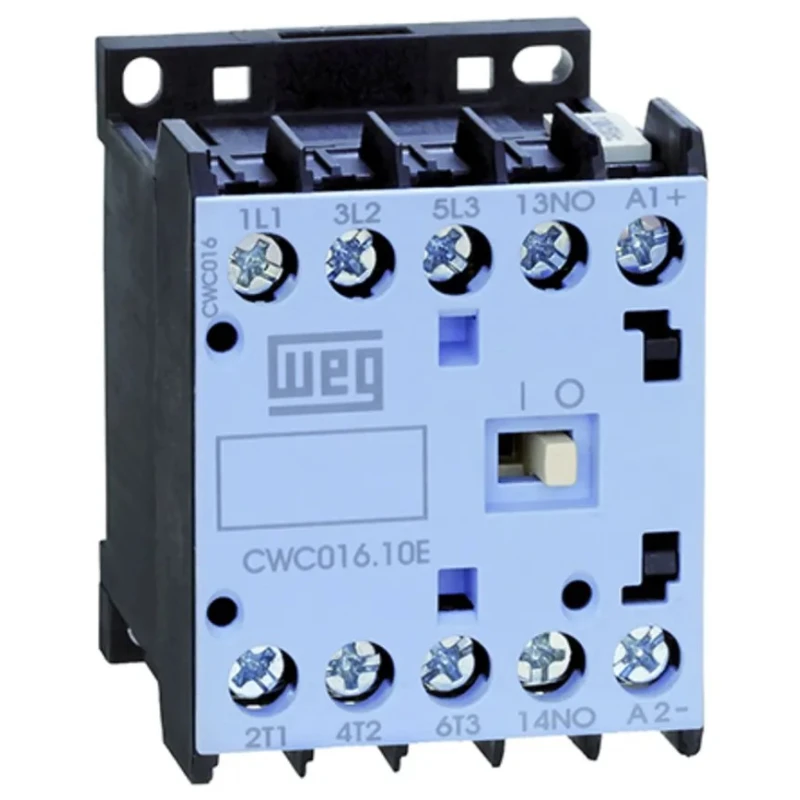

WEG CWC Contactor 24V AC Coil 3-Pole 16A 7.5kW 690V AC DIN Rail Motor Control CWC016-10-30D02
Specifications
| Country of Origin | Brazil |
|---|---|
| Brand | WEG |
| Function | Motor Control |
| Length | 58mm |
| Model | CWC016-10-30D02 |
| Depth | 52mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | CWC |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 16A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 16A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3PST |
Key Features
- Features a 24V AC coil for reliable actuation in control circuits.
- Offers 3-pole switching for effective electrical motor control.
- Rated for 16A operational current and supports up to 7.5kW power.
- 690V AC contact voltage ensures compatibility with diverse industrial systems.
- DIN rail mount design allows easy installation and modular system integration.
- Includes one NO auxiliary contact for extended circuit flexibility.
- Robust, compact build suited to industrial panel layouts.
- Meets IEC, RoHS, and UL standards for global compliance.
Product Description
The WEG CWC016-10-30D02 is a high-performance modular contactor equipped with a 24V AC coil, specifically engineered for motor control applications in automation panels, manufacturing systems, and electrical distribution setups. Its 3-pole configuration makes it ideal for switching three-phase motors, providing consistent operation for loads up to 7.5kW and a contact current rating of 16A.
Designed for DIN rail mounting, this contactor integrates efficiently into compact panel layouts, allowing for flexible installation and easy replacement. The robust structure and reliable screw-type terminals facilitate secure connections and straightforward maintenance. The contact voltage of 690V AC ensures compatibility with a wide range of industrial and commercial systems where higher voltage levels are required for equipment operation.
In addition to its main contacts, the CWC016-10-30D02 features one NO auxiliary contact, expanding control circuit options and increasing application versatility. The device’s minimum operating temperature of -25°C and maximum of 55°C, coupled with compliance to IEC, RoHS, and UL standards, guarantee dependable performance and safety across demanding environments.
Operational ease is further enhanced with clearly marked terminal points, and the compact spacing-saving design means this contactor fits seamlessly into modular and space-restricted panels. Reliable performance is assured for repetitive motor-starting tasks, HVAC control, and process machinery in industrial, commercial, and laboratory settings.
Use cases include industrial automation, manufacturing lines, water treatment systems, HVAC panel integration, and process equipment motor switching. Auxiliary contact flexibility supports various signaling and feedback arrangements required in advanced control systems.
Explore more WEG automation solutions and related products in Power Contactors and Relays & Contactors on EnvMart for complete system integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 7.5kW, making it suitable for motor control applications.
The WEG CWC016-10-30D02 features a coil voltage of 24V AC.
It supports a maximum contact voltage of 690V AC, ensuring compatibility with various industrial systems.
This contactor is configured with 3 poles, allowing for effective switching of three-phase motors.
The dimensions are 58mm in length, 52mm in depth, and 45mm in width.
It has an operational current rating of 16A, suitable for various motor control applications.
This model is designed for DIN rail mounting, facilitating easy installation in control panels.
Yes, it includes one normally open (NO) auxiliary contact for enhanced circuit flexibility.
The operational temperature range is from -25°C to 55°C, suitable for various environments.
It meets IEC, RoHS, and UL standards, ensuring compliance for global applications.
It features screw-type terminals, which facilitate secure connections and maintenance.
This contactor is suitable for applications in industrial automation, manufacturing lines, and HVAC systems.
