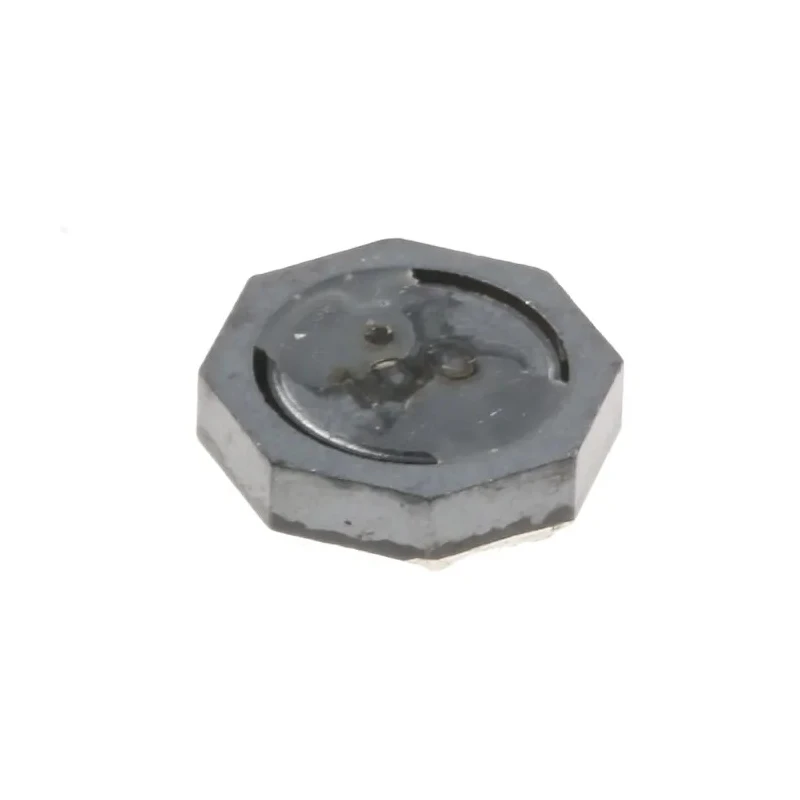

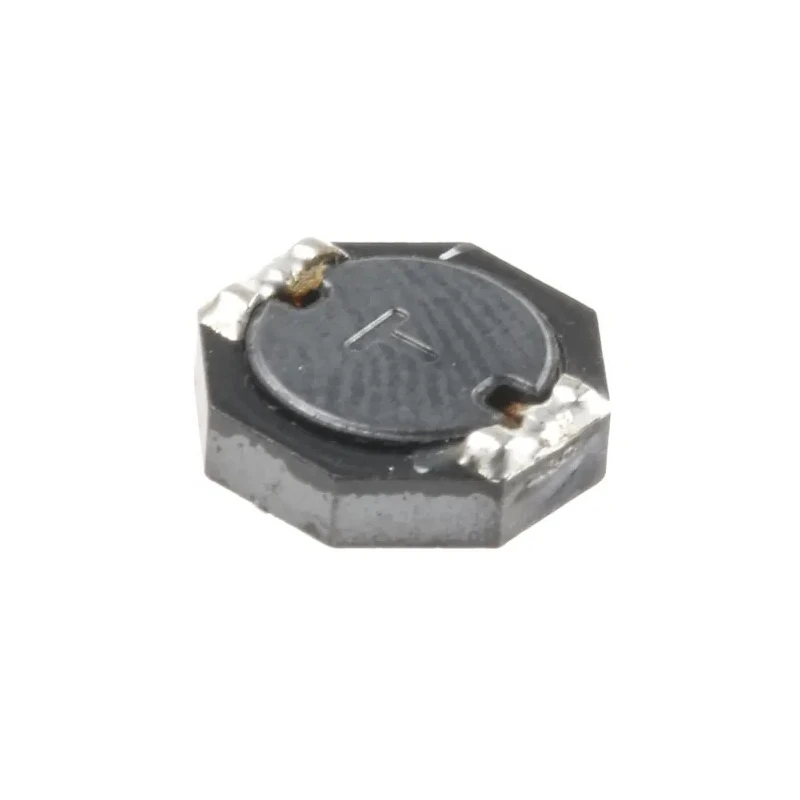

Wurth Elektronik WE-TPC 1028 Shielded Wirewound Surface Mount Inductor with Ferrite Core, 10 µH ±30% Inductance, 3 744065100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 2.8mm |
| Length | 10mm |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Package/Case | 1028 |
| Maximum DC Current | 3A |
| Maximum DC Resistance | 53mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 25MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/ApprovalsREACH, RoHS, IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B |
Key Features
- Compact 10mm length and 2.8mm height with 10mm depth dimensions.
- Magnetically shielded construction to minimize leakage fields.
- Wide operating temperature range from -40°C to 125°C for reliable performance.
- Maximum DC resistance of 53 mΩ ensuring low power losses.
- Compliant with automotive standard AEC-Q200 and international RoHS and REACH standards.
- Suitable for portable power devices like PDAs, digital cameras, PCMCIA cards, and embedded PCs.
- Maximum self-resonant frequency of 25 MHz for high-frequency applications.
- Surface mount termination style for automated PCB assembly.
Product Description
Wurth Elektronik 744065100 WE-TPC 1028 shielded wirewound surface mount inductor incorporates a ferrite core with 10 µH inductance and ±30% tolerance, designed for compact, high-current power applications. This inductor is engineered to operate reliably within temperature extremes from -40°C to 125°C, making it suitable for demanding industrial and automotive environments.
The magnetically shielded design minimizes electromagnetic interference, ensuring efficient power conversion in embedded systems such as portable devices, DC/DC converters, and mobile data acquisition tools. Its dimensions of 10mm length, 2.8mm height, and 10mm depth fit standard PCB layouts for surface mounting, enabling automated assembly processes.
Rated for a maximum DC current of 3 A and accommodating a maximum DC resistance of 53 mΩ, this wirewound inductor balances low core losses with high current capacity. It meets critical international standards including AEC-Q200 for automotive quality, RoHS for environmental compliance, and REACH directives.
This component is ideal for use in electronic applications such as portable power supplies, industrial monitoring, telemetric devices, and signal filtering systems. The inductance and shielded build allow for stable performance across frequencies up to 25 MHz, supporting efficient energy storage and transfer in compact form factors.
Compact 10mm length and 2.8mm height with 10mm depth dimensions. Magnetically shielded construction to minimize leakage fields. Wide operating temperature range from -40°C to 125°C for reliable performance. Maximum DC resistance of 53 mΩ ensuring low power losses.
Compliant with automotive standard AEC-Q200 and international RoHS and REACH standards. Suitable for portable power devices like PDAs, digital cameras, PCMCIA cards, and embedded PCs. Maximum self-resonant frequency of 25 MHz for high-frequency applications.
Surface mount termination style for automated PCB assembly.
Choose Wurth Elektronik inductors for industry-leading reliability and performance in electronic components. Discover more quality Surface Mount Inductors within the Electronics Components category on EnvMart for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 µH with a tolerance of ±30%.
It is rated for a maximum DC current of 3 A.
The dimensions are 10 mm in length, 2.8 mm in height, and 10 mm in depth.
The inductor operates reliably within a temperature range from -40°C to 125°C.
The maximum DC resistance is 53 mΩ, ensuring low power losses.
Yes, it complies with automotive standard AEC-Q200 and international RoHS and REACH standards.
The maximum self-resonant frequency is 25 MHz, suitable for high-frequency applications.
It features a surface mount termination style, which is suitable for automated PCB assembly.
The core material is ferrite, which contributes to its magnetic shielding.
It is packaged in tape and reel format, facilitating easy handling and assembly.
This model is suitable for applications such as portable power devices, DC/DC converters, and signal filtering systems.
It features a wirewound construction, which is common for inductors designed for high current applications.
