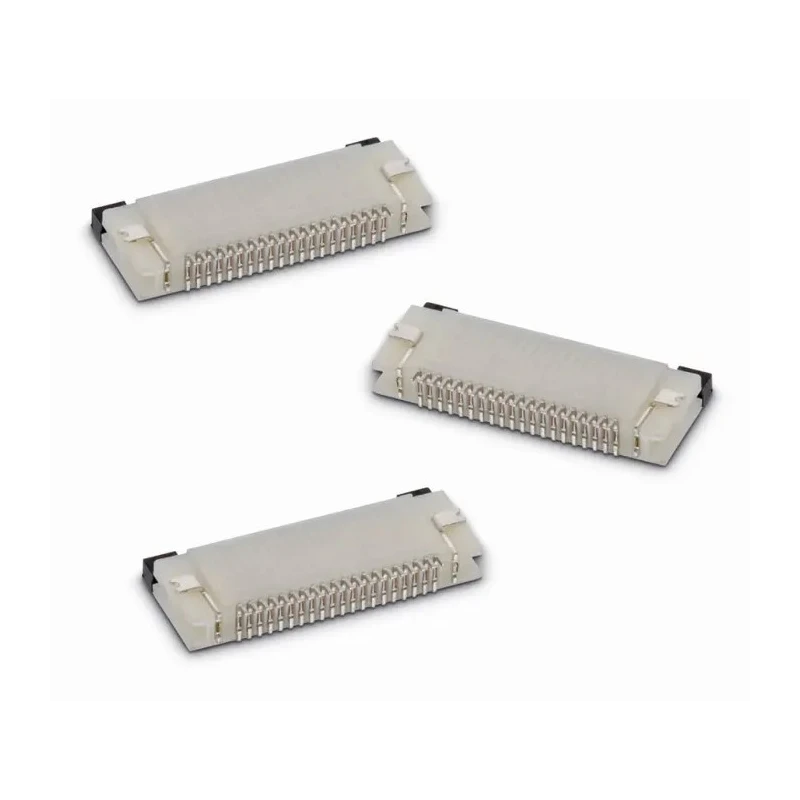

Wurth Elektronik 0.5 mm Pitch 22 Way Horizontal Female FPC Connector, Solder WR-FPC 687122149022

Wurth Elektronik 687122149022 0.5 mm Pitch 22 Way Horizontal Female FPC Connector is a precision surface mount component designed for electronic applications requiring compact, secure, and high-density connections.

This FPC connector is manufactured with phosphor bronze contact material plated with tin over nickel to ensure excellent electrical conductivity and corrosion resistance. It features a bottom contact configuration with a horizontal orientation and includes a hinged flip-lock actuator providing zero insertion force (ZIF) connection, simplifying the installation and improving reliability.

The polyamide housing material offers mechanical robustness and temperature tolerance from -40°C to 105°C, making it suitable for a wide range of industrial and commercial electronic devices.

With 22 contacts arranged in a single row and a pitch of 0.5 mm, this connector meets the demand for miniaturized designs such as small displays, keyboards, and other compact electronic assemblies. The locking mechanism secures the flexible printed circuit (FPC) firmly, preventing accidental disconnections even in vibration-prone environments.

Operating at a maximum voltage of 50 V ac and supporting a current of 500 mA, it offers reliable signal transmission for various electronic circuits. The solder termination type with surface mount technology (SMT) facilitates automated PCB assembly and enhances production efficiency.

This WR-FPC 0.5 mm FPC connector series is an ideal choice for designers seeking a cost-effective wire-to-board solution without requiring a mating connector. Its design supports a direct cable insertion, reducing component count and system complexity.

This FPC connector features a 0.5 mm pitch and 22 contact points for reliable electrical connectivity. The connector has a bottom contact position and a horizontal orientation optimized for PCB integration. It employs a flip-lock hinge actuator that ensures a zero insertion force (ZIF) connection.

Constructed with phosphor bronze contacts plated with tin over nickel for ideal conductivity and durability. The housing is made of polyamide material, capable of operating between -40°C and 105°C. This connector is designed with a locking mechanism to secure the FPC cable firmly in place.

It supports a maximum voltage of 50 V ac and a current rating of 500 mA. The connector is part of the WR-FPC series, designed for miniaturized electronic equipment requiring high-density, cost-effective connections. Its single-row design and female contact gender make it suitable for connections to small displays or keyboards.

Manufactured in China under Wurth Elektronik high-quality standards.

Wurth Elektronik components are widely used across electronic, industrial, and manufacturing sectors for robust and precise connectivity solutions. Explore more FPC Connectors and related components in the EnvMart Electronics & Electricals category.
