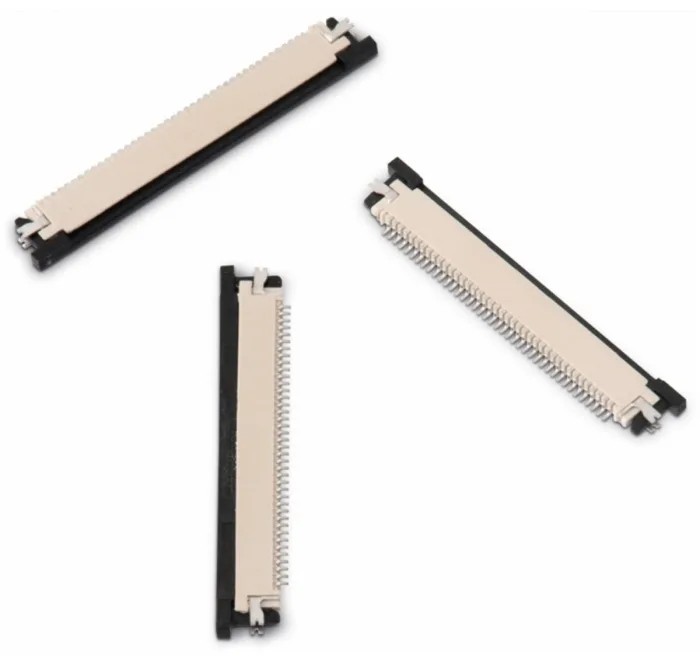

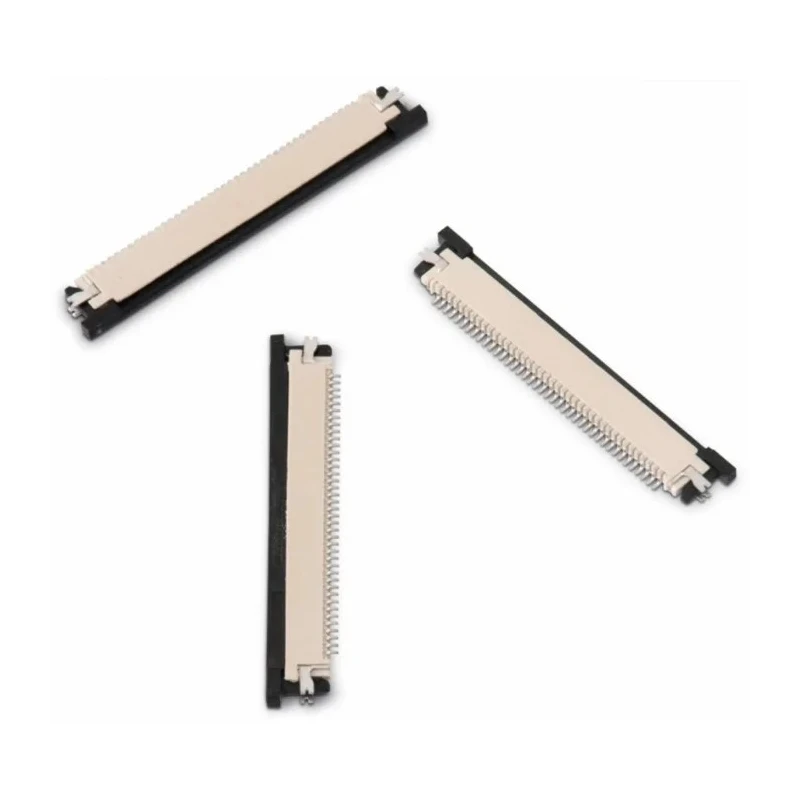

Wurth Elektronik 0.5 mm Pitch 20 Way Horizontal Female FPC Connector Surface Mount 687120183622

Wurth Elektronik 687120183622 is a 0.5 mm pitch, 20 way horizontal female FPC connector designed for surface mount technology. This connector belongs to the WR-FPC series which features a low profile of only 1.2 mm, making it ideal for compact, space-saving electronic applications. The zero insertion force flip lock actuator mechanism allows easy and secure insertion of flexible printed circuits by rotating the actuator to open and lock the cable in place.

The contacts are made of phosphor bronze and are plated with tin over nickel to ensure reliable electrical and mechanical performance. The connector housing is constructed from liquid crystal polymer, providing durability and resistance to environmental factors. Brass solder tabs on either side of the connector provide additional mechanical stability on the printed circuit board.

This FPC connector is rated for a maximum of 50V AC and 400 mA current, supporting industrial and consumer electronics applications such as displays, touch panels, cameras, tablets, and other high density devices. It functions reliably across a wide temperature range from -25°C to 85°C, suitable for industrial, laboratory, commercial, and medical equipment.

Low profile 1.2 mm height design for compact electronic devices. Zero insertion force flip lock actuator enables easy FPC insertion and high retention. Phosphor bronze contacts with tin over nickel plating ensure signal integrity.

Liquid crystal polymer housing for strength and reliability. Solder tabs enhance PCB retention and mechanical stability. Rated for 50V AC, 400 mA current with horizontal orientation. Operating temperature range from -25°C to 85°C for versatile applications.

Single row of 20 contacts with top contact position to suit various designs.

This product is suitable for a broad range of industrial uses including electronics manufacturing, automotive electronics, and medical instrumentation. Wurth Elektronik’s WR-FPC series FPC connectors provide reliable, high-quality interconnect solutions that meet demanding design and performance requirements.
