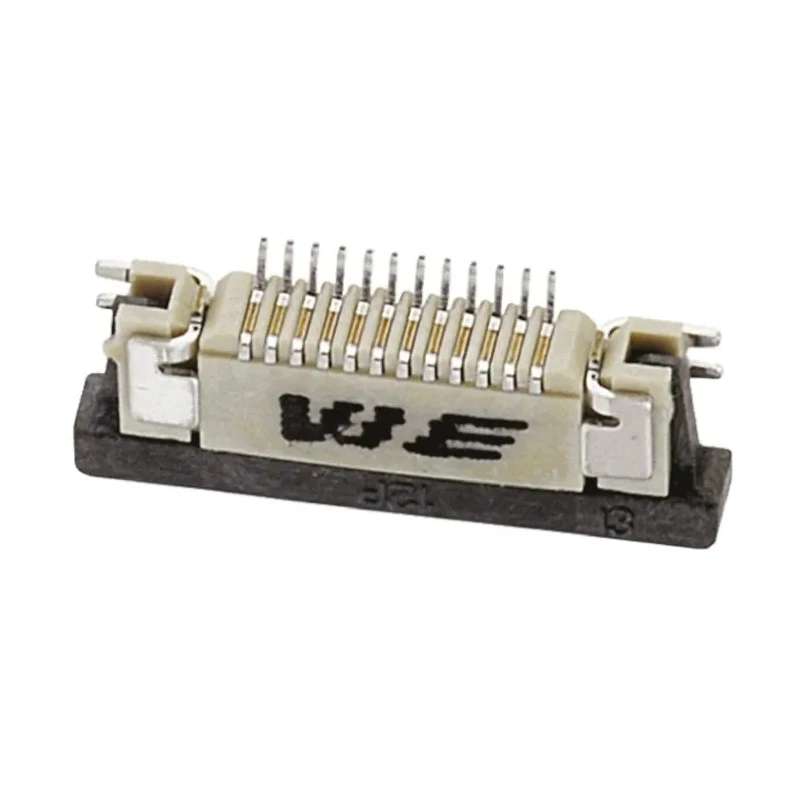

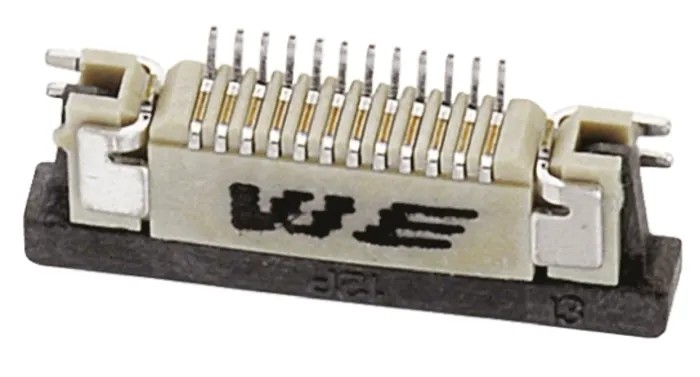

Wurth Elektronik 0.5 mm Pitch 24 Way Straight Male FPC Connector, Solder Pin 68712414522

Wurth Elektronik 68712414522 0.5 mm Pitch 24 Way Straight Male FPC Connector is a high-precision electronic component designed for wire-to-board connections in compact electronic assemblies. It features a 0.5 mm pitch with 24 contacts arranged across a single row, providing a reliable and space-saving solution.

This connector uses phosphor bronze contacts plated with tin over nickel, ensuring excellent electrical performance and corrosion resistance. The liquid crystal polymer housing offers mechanical stability and a UL94-V0 flammability rating suitable for industrial applications.

Designed for surface mount technology (SMT), it has a bottom contact position with a Zero Insertion Force (ZIF) insertion mechanism, minimizing wear during repeated mating cycles. The connector operates at currents up to 500mA and voltages up to 50V, making it ideal for low power electronic devices.

Its straight orientation and locking mechanism guarantee secure and stable connections, while the operating temperature range from -25°C to 85°C allows deployment in varied environments, including industrial and commercial electronics.

24 contacts for compact connection setups. Phosphor bronze contact material with tin over nickel plating ensures durability. 0.5 mm pitch for fine pitch electronic designs. Surface mount with bottom contact and ZIF insertion force for ease of assembly.

Locking mechanism for secure connection integrity. UL94-V0 rated liquid crystal polymer housing for safety and strength. Temperature range from -25°C to 85°C suitable for industrial conditions.

This connector is commonly used in electronics manufacturing, industrial devices, and other applications requiring reliable FPC connections. It is designed for high mating cycle durability and compact footprint, making it suitable for use in laboratory equipment, manufacturing assembly lines, and commercial electronics.
