| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.3mm |
| Length | 0.6mm |
| Model | LQP03TN1N0B02D |
| Depth | 0.3mm |
| Packaging | Paper Tape |
| Series | LQP |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Core |
| Inductance | 0.001μH |
| Standards/Approvals | RoHS |
| Package/Case | 0201 |
| Maximum DC Current | 750mA |
| Pin Count | 2 |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±0.1 nH |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 17GHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Film |

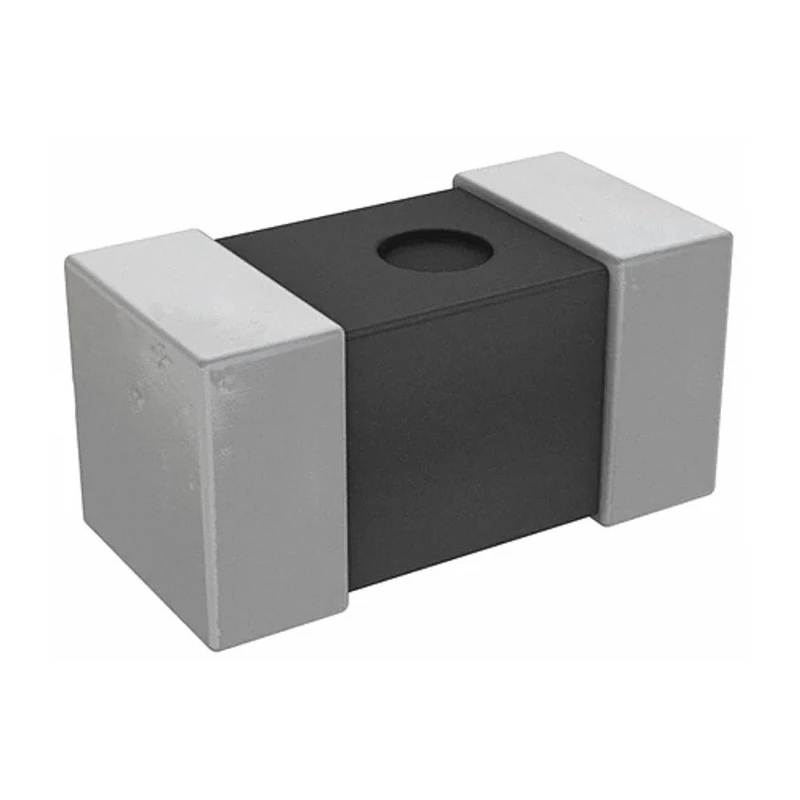

Murata LQP03TN1N0B02D shielded wirewound surface mount inductor is a compact and robust passive electronic component designed for advanced circuit applications. Featuring a 0201 package, film construction, and non-magnetic core, it delivers reliable performance with a low inductance of 0.001 μH and tolerance of ±0.1 nH. Its shielded architecture minimizes unwanted electromagnetic interference, ensuring signal stability in high density PCB layouts.
High Q value film chip inductor for enhanced frequency characteristics. Maximum DC current rating of 750 mA supports mobile phones, Bluetooth modules, and other high frequency electronics. RoHS compliant and lead-free termination style for environmentally responsible designs.
Ultra-miniature size: 0.6 mm length, 0.3 mm height, 0.3 mm depth. Low maximum DC resistance of 100 mΩ guarantees efficient power utilization. Suitable for solder termination and 2-pin connection.
Typical use cases include mobile phone RF circuits, Bluetooth modules, PA/ANT/SAW/VCO applications, and general high frequency circuits in consumer and industrial electronics. The Murata LQP03TN1N0B02D is especially beneficial for designers seeking compact, high-Q solutions in surface mount technologies.
With a non-magnetic core, the inductor maintains signal integrity across wide temperature and frequency ranges, operating from -55°C up to 125°C and supporting self resonant frequency up to 17 GHz. Ideal for PCB integration in industrial, laboratory, telecommunications, and commercial equipment requiring stringent space and electrical performance.
