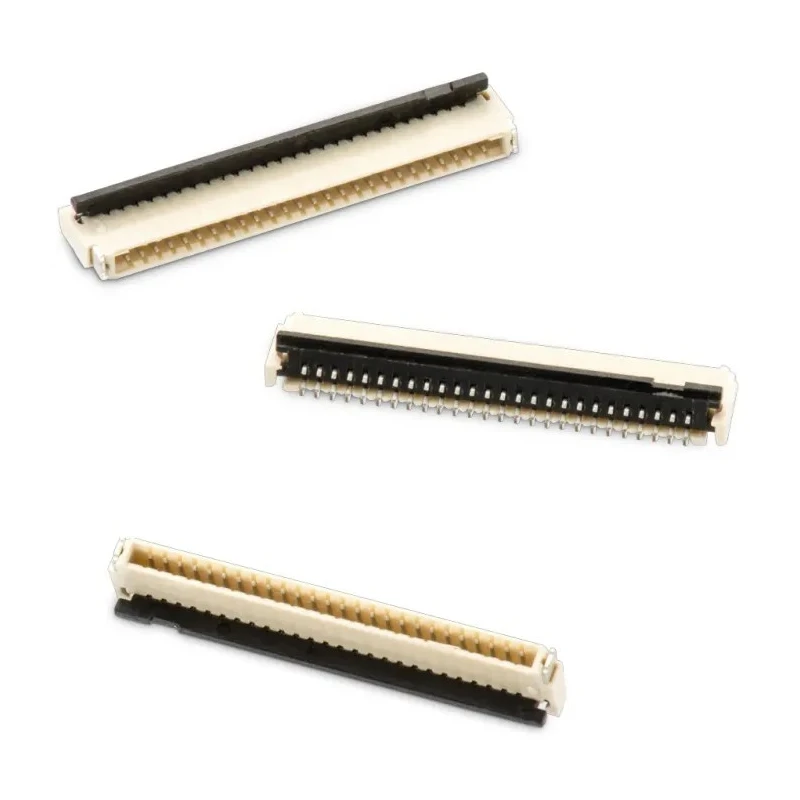

Wurth Elektronik 0.5 mm Pitch 22 Way Horizontal Male FPC Connector Surface Mount 687122182122

Wurth Elektronik 687122182122 22 Way Horizontal Male FPC Connector Surface Mount is designed for high-reliability electronic assembly applications across industrial, commercial, and research sectors. It features 22 phosphor bronze contacts with tin over nickel plating ensuring excellent electrical performance and corrosion resistance.

The connector supports a current rating of 500 mA and is rated for 250 V AC operation, making it suitable for signal and low power applications. Its surface mount termination and zero insertion force mechanism allow easy and secure installation on printed circuit boards.

The housing is constructed from liquid crystal polymer which offers mechanical strength and thermal stability over a wide temperature range of -55°C to +85°C, adapting well to harsh environments. This connector has a horizontal orientation with a single row and dual contact position, optimized for compact high-density PCB layouts.

For soldering, adherence to the specified Wurth Elektronik soldering profile is essential to avoid warranty invalidation. Washing is not recommended as exposure to cleaning agents or water can degrade component performance. Gentle manual cleaning using compatible cleaning agents is advised.

This product finds applications in electronic components assembly, power & connectors industries, and is particularly relevant for FPC Connector requirements within automation, instrumentation, and communications equipment manufacturing.

Features 22 contacts with 0.5 mm pitch for compact and precise connectivity. Constructed with phosphor bronze contacts plated with tin over nickel for durability. Supports a current rating of 500 mA and voltage of 250 V AC.

Surface mount type with horizontal male connector design. Equipped with a locking mechanism and zero insertion force (ZIF) for secure and easy assembly. Operating temperature range from -55°C to 85°C suitable for diverse conditions.

Housing made of liquid crystal polymer ensuring stability and performance. Single row, dual contact position layout for efficient wiring. Recommended soldering profile must meet Wurth Elektronik specifications to maintain warranty.

Not suitable for washing or exposure to water; cleaning should be with suitable agents to avoid component damage. Explore the full range of connectors at EnvMart to meet your electronic assembly needs.
