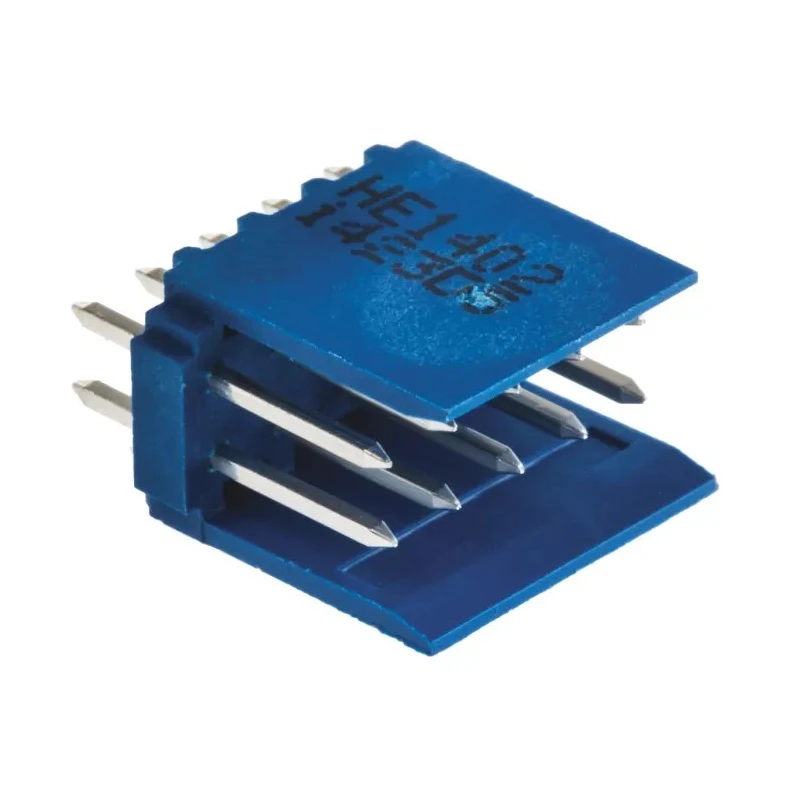

TE Connectivity AMPMODU HE14 Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- Features a shrouded design for pin protection and secure mating.
- Constructed with thermoplastic housing rated UL 94V-0 for high temperature resistance.
- Mates with AMPMODU HE14 IDC receptacles ideal for discrete wire or ribbon cable terminations.
- Supports a current rating of 3A and voltage up to 500V.
- Includes 2 rows of 10 male contacts with a tail pin length of 2.9 mm.
- Operating temperature range from -40°C to 105°C ensures reliability across environments.
- Uses phosphor bronze contacts plated with tin for durability and conductivity.
- Designed for through-hole mounting providing robust mechanical stability.
Product Description
TE Connectivity HE14 Series Straight Through Hole PCB Header Model HE14 provides a robust wire-to-board interconnect solution with 10 contacts and 2.54 mm pitch. The shrouded pin headers integrate a blue thermoplastic housing compliant with UL 94V-0 standards, ensuring high temperature tolerance up to 105°C and safety across demanding applications.
This PCB header includes two rows of male copper alloy phosphor bronze contacts plated with tin, suitable for solder termination. Its tail pins measure 2.9 mm to guarantee reliable PCB mounting through a through-hole configuration. The housings feature polarization keys to prevent incorrect mating with connectors.
With a current rating of 3A and voltage of 500V, the TE Connectivity AMPMODU HE14 headers are designed for industrial, automotive controls, telecommunications, medical instruments, test equipment, and computing devices. The integrated friction lock mechanism in the shrouds provides a secure connection under operational vibrations and handling.
These headers pair with AMPMODU HE14 IDC receptacles capable of terminating discrete wires or 2.54 mm pitch ribbon cables, offering versatile usage across multiple electrical and electronic systems.
Shrouded thermoplastic housing for protection and durability. Polarized design to ensure correct mating. High operating temperature range from -40°C to 105°C. Phosphor bronze male contacts plated with tin for excellent conductivity.
Current rating of 3A and voltage rating of 500V. Two-row layout with 10 contacts total. Through-hole mount type for reliable PCB installation. Integrated friction lock secures the connector interface. Suitable for applications in industrial, automotive, telecommunications, medical and computing fields.
Compatible with AMPMODU HE14 IDC receptacles for wire or ribbon cable termination.
Choose TE Connectivity AMPMODU HE14 headers for a reliable, economical, and industry-proven interconnect standard that meets diverse industrial requirements. Explore more connectors and components in the Electronics Components category at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3A and a voltage rating of 500V.
The HE14 series header features a pitch of 2.54 mm and includes 10 contacts arranged in 2 rows.
It operates within a temperature range of -40°C to 105°C, making it suitable for various environments.
The housing is made of thermoplastic, while the contacts are phosphor bronze plated with tin for conductivity.
This model is designed for through-hole mounting, ensuring reliable installation on a PCB.
It uses solder termination, which is suitable for secure connections on printed circuit boards.
The tail pin length is 2.9 mm, which helps ensure a stable connection during installation.
It includes an integrated friction lock mechanism that secures the connector interface against vibrations and handling.
This unit is suitable for applications in industrial, automotive controls, telecommunications, medical instruments, and computing devices.
The country of origin for this PCB header is India.
