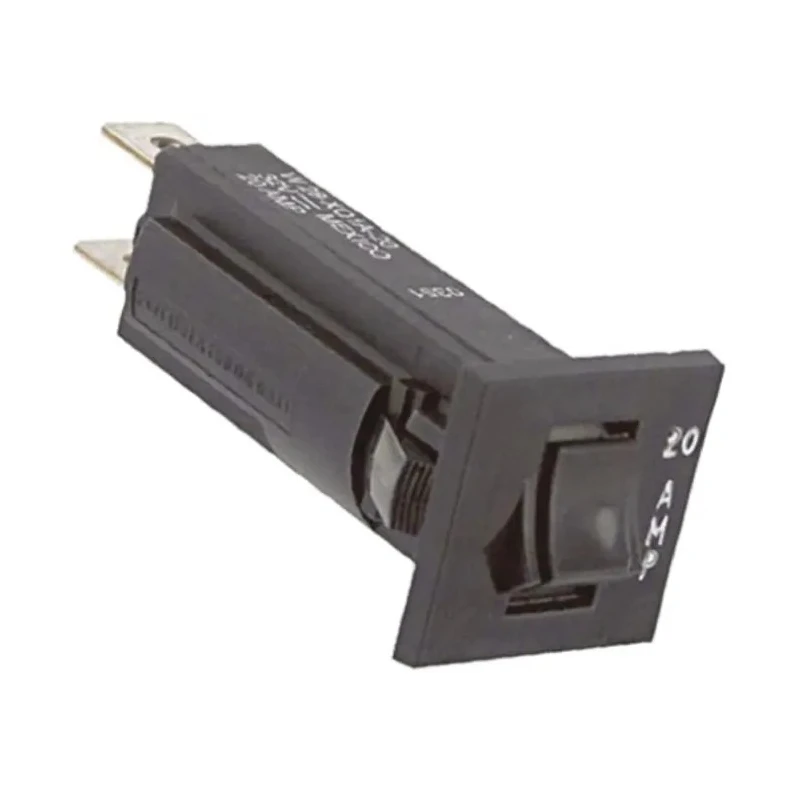

TE Connectivity 0.25 to 20 A Thermal Circuit Breaker 20A Current Rating 1-Pole Direct Mount W28-XQ1A-20

Name: TE Connectivity 0.25 to 20 A Thermal Circuit Breaker 20A Current Rating 1-Pole Direct Mount W28-XQ1A-20
Brand: TE Connectivity
SKU: 131354
Price: 4.83 USD
Availability: InStock



Category Thermal Circuit Breaker Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Range	0.25 to 20 A
Brand	TE Connectivity
Model	W28-XQ1A-20
Width	19.3mm
Mount Type	Direct
Current Rating	20A
Series	W28
Terminal type	Screw
Breaking Capacity	1000A
Number of Poles	1
Standards/Approvals	CE, RoHS
Rated AC Voltage	240V ac
Rated DC Voltage	50V dc
Tripping Characteristics	May trip between 101% and 134%, Trip at 135% (3-20 A), 175% (0.25-2A) within 1 hour
Tripping Mechanism	Thermal
Reset Actuator Type	Toggle Switch
Mount Hole Size	18.8 mm
Break Time	Medium

Key Features

Features a single pole configuration for effective circuit protection.
Supports current ratings from 0.25 to 20 amperes.
Rated for 240V AC and 50V DC voltages.
Equipped with a screw terminal type for firm electrical connections.
Toggle switch reset actuator allows quick manual reset after tripping.
Includes thermal tripping mechanism with specific trip characteristics for safe operation.
Breaking capacity is 1000A ensuring robust fault interruption.
Compact width of 19.3 mm and mount hole size of 18.8 mm for easy installation.

Product Description

TE Connectivity W28-XQ1A-20 Thermal Circuit Breaker is designed to provide reliable overcurrent protection with a rated current range between 0.25 to 20 amperes. This 1-pole thermal circuit breaker delivers a rated AC voltage of 240V and a DC voltage rating of 50V, suitable for diverse electrical applications including industrial control panels, consumer appliances, and automation systems.

The device features a direct mount design with a compact width of 19.3 mm and a mount hole size of 18.8 mm, facilitating straightforward integration into existing circuits. The screw terminal type ensures secure and durable electrical connections, while the toggle switch reset actuator enables convenient manual reset after a trip event.

The thermal tripping mechanism reliably responds to overcurrent conditions with tripping characteristics that may trigger between 101% and 134% of rated current, with specific trip times at 135% for currents between 3 and 20 amperes, and at 175% for currents between 0.25 and 2 amperes within one hour.

The thermal breaker has a breaking capacity of 1000 amperes, providing robust protection against short circuits and faults. Its medium break time characteristic balances safety with operational continuity, ensuring quick response without nuisance trips.

Single pole configuration providing effective circuit interruption. Current rating range from 0.25 to 20 amperes suits a wide range of current protection needs. Rated for both AC (240V) and DC (50V) applications. Screw terminal connections for secure wiring.

Toggle switch actuator allows easy manual resetting. Thermal tripping mechanism offers reliable protection against overcurrent. Breaking capacity of 1000 amperes supports high fault current interruption. Compact dimensions with a width of 19.3 mm for space-efficient installation.

Compliant with CE and RoHS standards for safety and environmental regulations.

This circuit breaker is widely applicable in industrial automation systems, electrical distribution, HVAC controls, and manufacturing machinery, where precise and dependable circuit protection is critical. Its compliance with CE and RoHS ensures adherence to rigorous quality and environmental standards.
