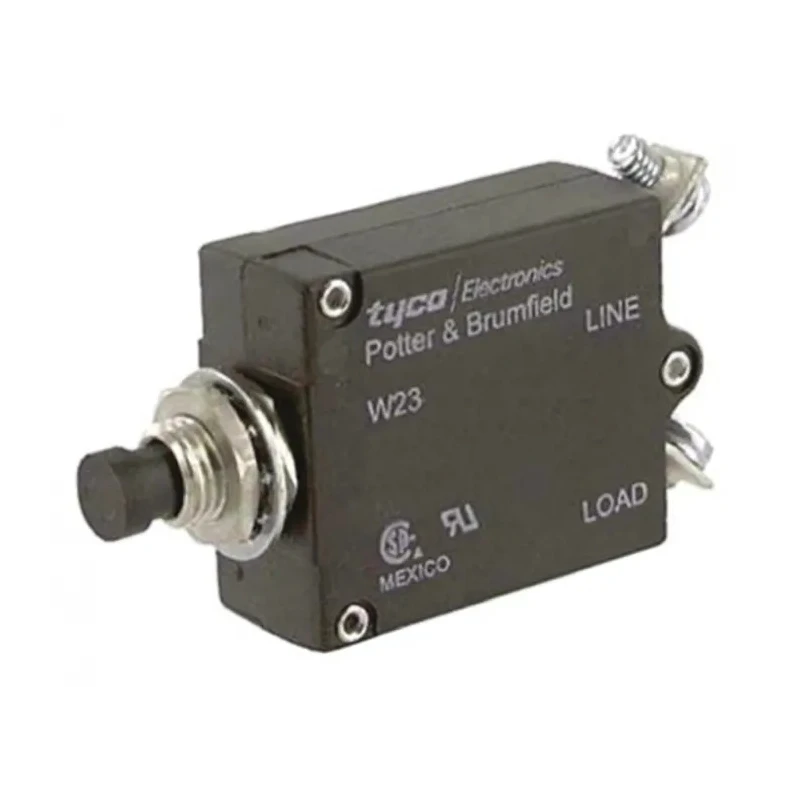

TE Connectivity W23 Thermal Circuit Breaker 50A Current Rating 1-Pole Direct Mount W23-X1A1G-50

Name: TE Connectivity W23 Thermal Circuit Breaker 50A Current Rating 1-Pole Direct Mount W23-X1A1G-50
Brand: TE Connectivity
SKU: 131322
Price: 49.58 USD
Availability: InStock



Category Thermal Circuit Breaker Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Height	51.69mm
Model	W23-X1A1G-50
Depth	35.15mm
Width	17.52mm
Mount Type	Direct
Current Rating	50A
Series	W23
Terminal type	Screw
Breaking Capacity	1000A
Number of Poles	1
Standards/Approvals	CE, RoHS
Rated AC Voltage	240V ac
Rated DC Voltage	50V dc
Tripping Characteristics	May trip between 101% and 134%
Tripping Mechanism	Thermal
Reset Actuator Type	Toggle Switch
Mount Hole Size	18.8 mm
Break Time	Medium

Key Features

Rated for 240V AC and 50V DC operation with thermal tripping mechanism.
Features a toggle switch reset actuator for easy manual reset.
Breaking capacity of 1000A ensures robust protection against overcurrent.
Compact dimensions with 17.52mm width, 51.69mm height, and 35.15mm depth.
Mount hole size is 18.8 mm with screw terminal type for secure installation.
Complies with CE and RoHS standards for safety and environmental compliance.
Break time is medium, designed to trip between 101% and 134% of rated current.
Manufactured in China, ensuring consistent quality under TE Connectivity brand.

Product Description

TE Connectivity W23-X1A1G-50 Thermal Circuit Breaker is engineered to provide dependable overcurrent protection in electrical and automation applications. Designed for a rated current of 50A and a single-pole direct mount format, this device is suitable for industrial, commercial, and manufacturing electrical systems.

Operating at a rated AC voltage of 240V and DC voltage of 50V, the thermal breaker utilizes a thermal tripping mechanism to react to excessive currents, avoiding damage to connected circuits. The toggle switch reset actuator allows for quick manual resets after tripping.

This circuit breaker offers a breaking capacity of 1000A, capable of interrupting fault currents effectively with a medium break time. Its compact design with a width of 17.52mm, height of 51.69mm, and depth of 35.15mm facilitates easy integration into panel assemblies.

The mounting includes an 18.8 mm mount hole size and screw-type terminals, providing secure mechanical and electrical connections. Safety is enhanced by compliance with CE and RoHS directives, underscoring its suitability for a wide range of power distribution and automation control tasks.

Rated 50A current capacity with 1-pole direct mount design. Thermal tripping mechanism for reliable overcurrent protection. Toggle switch reset for user-friendly operation after trip events. High breaking capacity of 1000A for handling fault currents.

Compact size suitable for constrained spaces in electrical panels. CE and RoHS compliant for safety and environmental standards. Medium break time ensures balanced response speed and stability. Screw terminal type for strong and dependable wiring connections.

Ideal for use in industrial electrical installations, HVAC systems, manufacturing machinery control, and other applications demanding robust circuit protection. This Thermal Circuit Breaker from TE Connectivity ensures system safety and operational continuity.

Explore more high-quality electrical protection products from TE Connectivity to enhance your projects and industrial setups at EnvMart.
