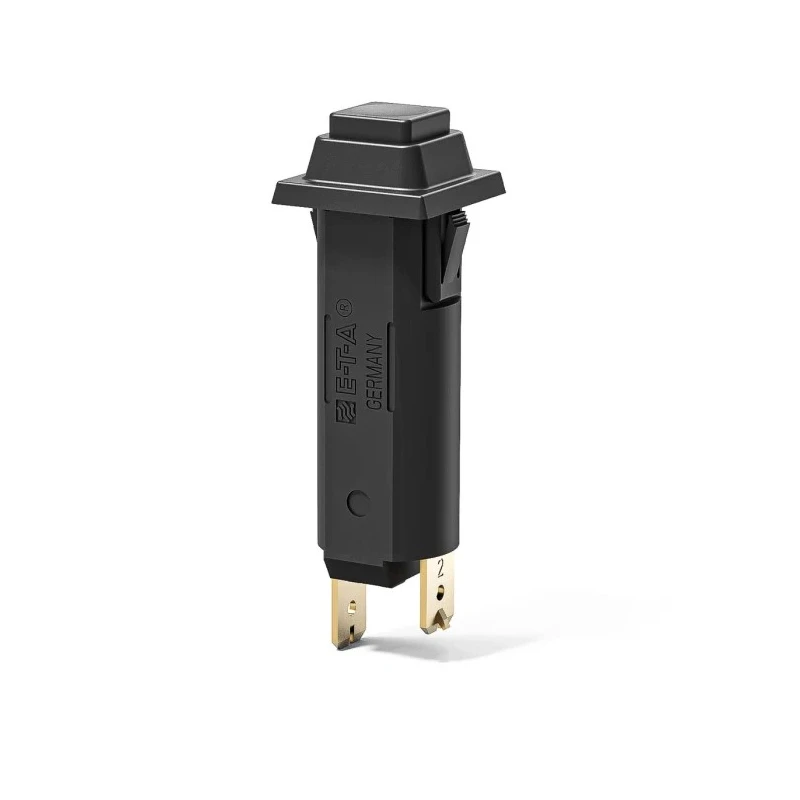

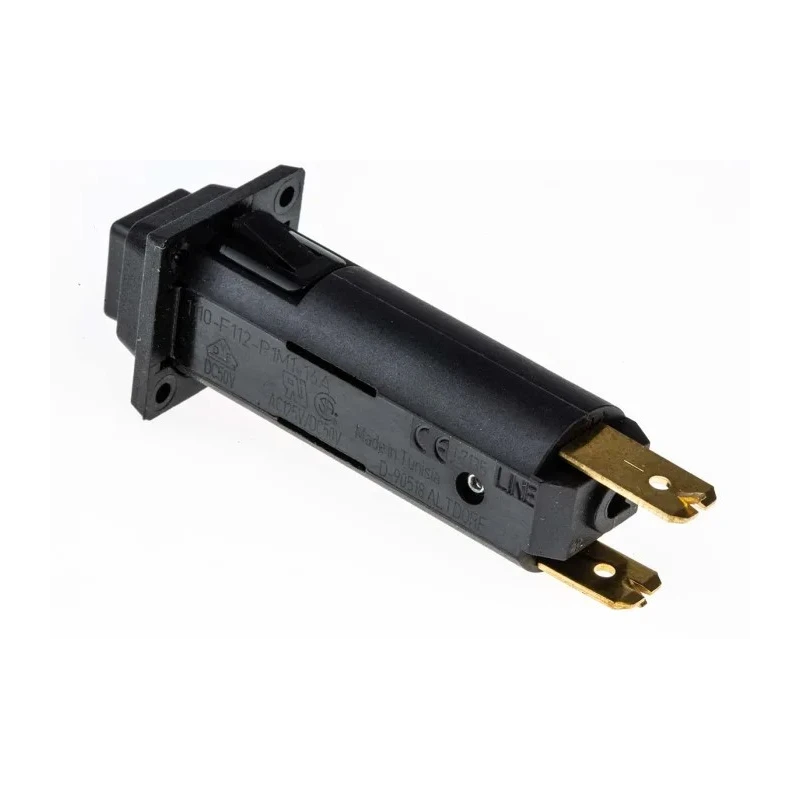

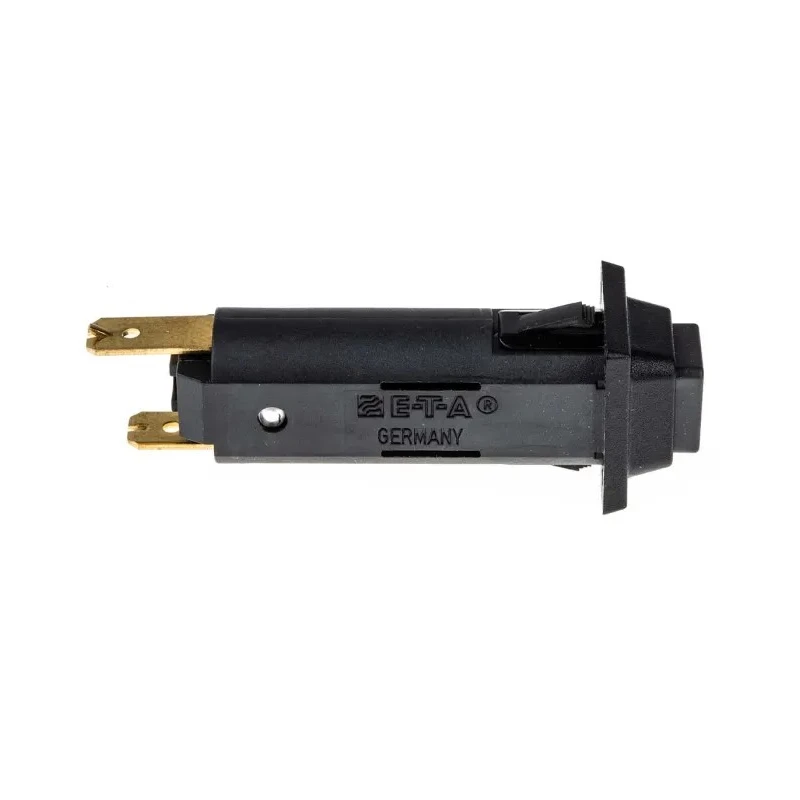

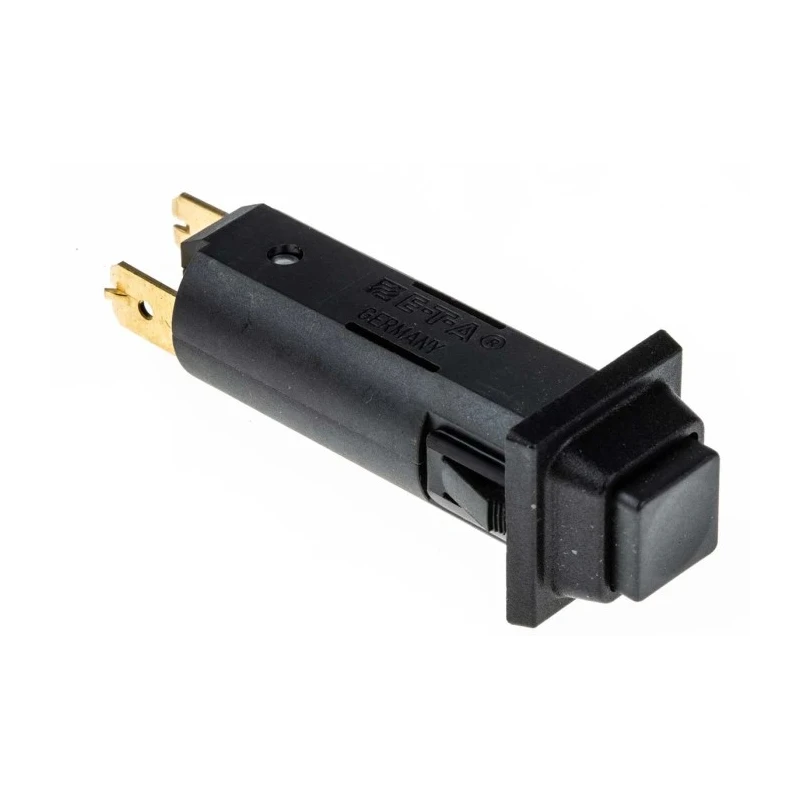

ETA Thermal Circuit Breaker 16A Current Rating 1-Pole Panel Mount 1110-F112-P1M1-16A
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | ETA |
| Height | 50.3mm |
| Model | 1110-F112-P1M1-16A |
| Width | 19mm |
| Mount Type | Panel Mount |
| Current Rating | 16A |
| Series | 1110 |
| Terminal type | Blade |
| Breaking Capacity | 25A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Type R |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Button |
| Break Time | Medium |
| CBC,thermal,panel mount,indicating,15ABrand | TE Connectivity |
Key Features
- Panel mount type with front panel snap-in mounting and standard fuse holder cut-out dimensions.
- Rated for 250V AC and 50V DC voltage operation.
- Thermal tripping mechanism with type R characteristics and medium break time.
- Equipped with 6.3-0.8 mm blade terminals and square black pushbutton reset actuator.
- Tease free/trip free mechanism ensures reliable response times of 20 to 30 seconds at twice nominal current.
- Visual indication in tripped/off position facilitates easy status monitoring.
- Primarily designed for motors, transformers, and power supplies.
- Typical operational life of 300 operations at twice nominal current rating.
Product Description
The ETA 1110-F112-P1M1-16A is a thermal circuit breaker designed for reliable overcurrent protection in electrical installations. This panel mount breaker features a 16 ampere current rating across a single pole with a robust thermal tripping mechanism delivering type R characteristics for medium break times.
Its construction includes a front panel snap-in mount conforming to standard fuse holder dimensions and 6.3-0.8 mm blade terminals that ensure secure electrical connections. The black square pushbutton reset actuator allows quick manual reset, and the breaker includes a tease free/trip free mechanism to provide consistent protection with a typical trip time of 20 to 30 seconds at twice the nominal current.
Visual indication of the breaker status is provided via a clear tripped/off position indication, enhancing maintenance and safety checks. The unit is primarily developed for use in motor control, transformer circuits, and power supply protection in industrial and commercial environments.
The ETA 1110 series offers a typical operational life of about 300 mechanical operations at double the rated current making it a durable choice. It complies with CE and RoHS directives, with recognized approvals from UL, CSA, and VDE ensuring international standards compliance.
Panel mount type with front panel snap-in mounting and standard fuse holder cut-out dimensions. Rated AC voltage: 250V AC; rated DC voltage: 50V DC. Thermal tripping mechanism with type R characteristics ensuring medium break time.
Equipped with 6.3-0.8 mm blade terminals and a tactile reset button actuator. Tease free/trip free mechanism ensures reliable operation and consistent response times. Visual tripped/off position indicator for operational status awareness.
Designed primarily for motors, transformers, and power supplies applications. Typical life of 300 operations at twice nominal current rating. Compliant with CE and RoHS; approved by UL, CSA, and VDE.
This Thermal Circuit Breaker from ETA is well suited for both industrial and commercial electrical protection needs, ensuring safety and reliability in various control panel installations. It also supports maintenance-friendly reset operation while maintaining IEC classification S/TO for high standards of protection.
Explore further Circuit Breakers and Fuse options available at EnvMart to complement your electrical protection systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 16A.
It is rated for 250V AC and 50V DC voltage operation.
This model features a panel mount type with front panel snap-in mounting.
The breaking capacity of this thermal circuit breaker is 25A.
The dimensions are 50.3mm in height and 19mm in width.
It utilizes a thermal tripping mechanism with type R characteristics.
The reset actuator is a button type, allowing for manual reset of the circuit breaker.
The typical operational life is about 300 operations at twice the nominal current rating.
It complies with CE and RoHS directives and has approvals from UL, CSA, and VDE.
It is primarily designed for use in motors, transformers, and power supplies.
It is equipped with 6.3-0.8 mm blade terminals for secure electrical connections.
The break time is classified as medium, ensuring reliable response times.
