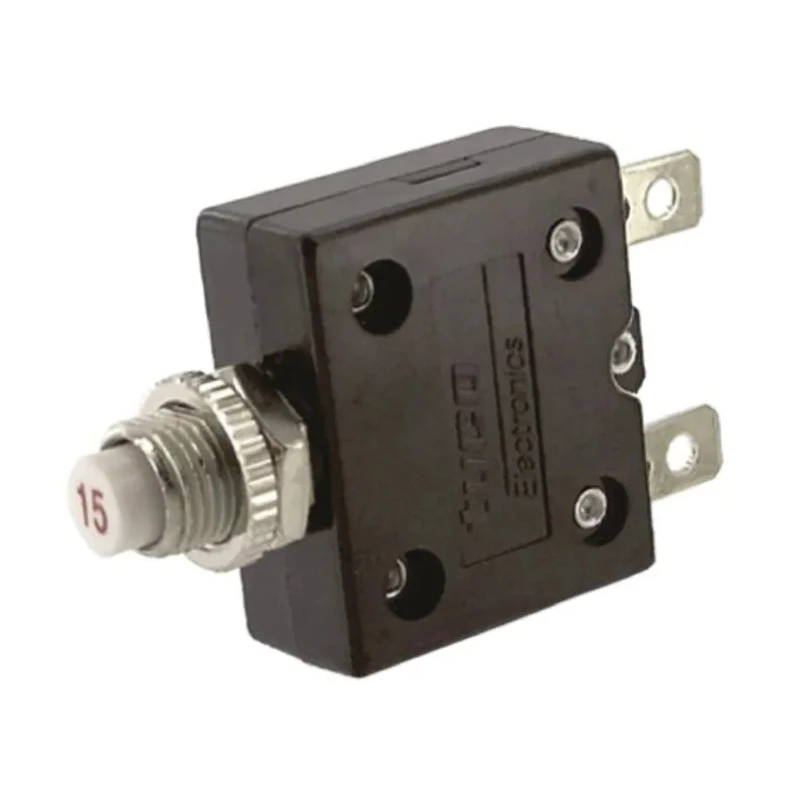

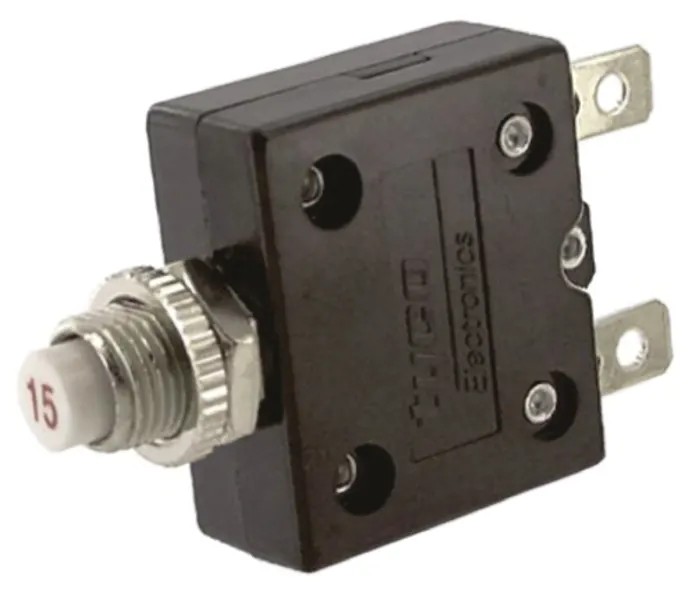

TE Connectivity W54 Thermal Circuit Breaker 0 to +60 °C, 15A Current Rating, 1-Pole, Direct Mount W54-XB1A4A10-15
Specifications
| Country of Origin | China |
|---|---|
| Range | 0 to +60 °C |
| Brand | TE Connectivity |
| Model | W54-XB1A4A10-15 |
| Width | 14.6mm |
| Mount Type | Direct |
| Current Rating | 15A |
| Series | W54 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Trips at 135% of rating within 1 hour at +25 °C |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- Supports a rated AC voltage of 250V and DC voltage of 50V.
- Employs thermal tripping mechanism with toggle switch reset actuator.
- Trips at 135% of rating within 1 hour at +25 °C for reliable protection.
- Breaking capacity rated at 1000A ensuring safety in electrical circuits.
- Compact width of 14.6mm with screw terminal type for secure connections.
- Mount hole size measures 18.8 mm for easy installation.
- Complies with RoHS and CE standards maintaining regulatory compliance.
- Manufactured in China for assured quality standards.
Product Description
TE Connectivity's W54-XB1A4A10-15 Thermal Circuit Breaker is a high-quality electrical protection device designed for precise thermal circuit interruption within a temperature range of 0 to +60 °C. This breaker supports a continuous current rating of 15A and features a single pole direct mount configuration, making it suitable for a wide range of electrical and automation applications.
The breaker operates at a rated AC voltage of 250V and a DC voltage rating of 50V, ensuring versatility in both alternating and direct current circuits. Its thermal tripping mechanism provides protection by tripping at 135% of the rated current within one hour at 25 °C, safeguarding circuits from overloads effectively.
The device is equipped with a toggle switch reset actuator for easy manual reset after tripping. Its breaking capacity of 1000A guarantees robust performance under fault conditions, while the medium break time balances protection speed and longevity.
With a compact width of 14.6mm and screw-type terminals, installation is straightforward and secure. The mount hole size is 18.8 mm, allowing compatibility with standard mounting setups. Certified to meet RoHS and CE directives, this thermal circuit breaker conforms to international regulatory standards.
Manufactured in China, the product ensures high-quality control and reliability for industrial, automation, electrical panel, and construction applications where dependable circuit protection is critical.
Supports a rated AC voltage of 250V and DC voltage of 50V. Employs thermal tripping mechanism with toggle switch reset actuator. Trips at 135% of rating within 1 hour at +25 °C for reliable protection. Breaking capacity rated at 1000A ensuring safety in electrical circuits.
Compact width of 14.6mm with screw terminal type for secure connections. Mount hole size measures 18.8 mm for easy installation. Complies with RoHS and CE standards maintaining regulatory compliance. Manufactured in China for assured quality standards.
For superior protection solutions, explore more products in the Thermal Circuit Breaker category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a continuous current rating of 15A.
It has a breaking capacity rated at 1000A, ensuring safety in electrical circuits.
The operating temperature range is from 0 to +60 °C.
It supports a rated AC voltage of 250V and a DC voltage of 50V.
It employs a thermal tripping mechanism that trips at 135% of the rated current within one hour at +25 °C.
This unit features a toggle switch reset actuator for easy manual reset after tripping.
It has a compact width of 14.6mm and is designed for direct mounting.
The mount hole size measures 18.8 mm, facilitating easy installation.
It complies with RoHS and CE standards, ensuring regulatory compliance.
It is manufactured in China, adhering to assured quality standards.
This unit features screw-type terminals for secure connections.
It is suitable for various electrical and automation applications where circuit protection is critical.
