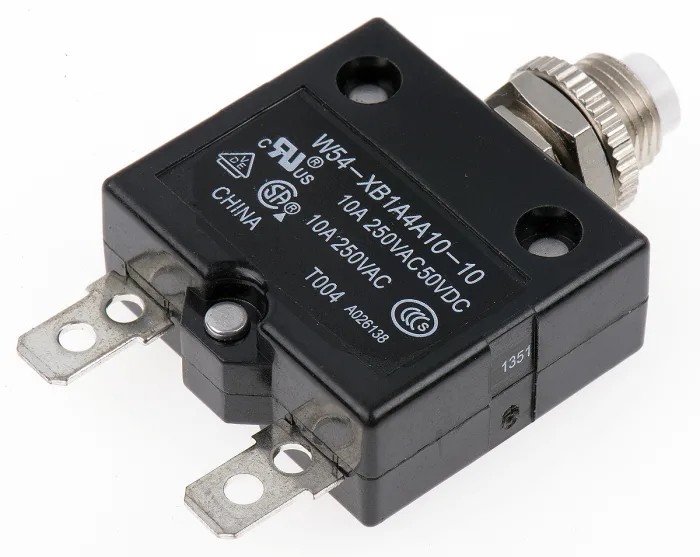

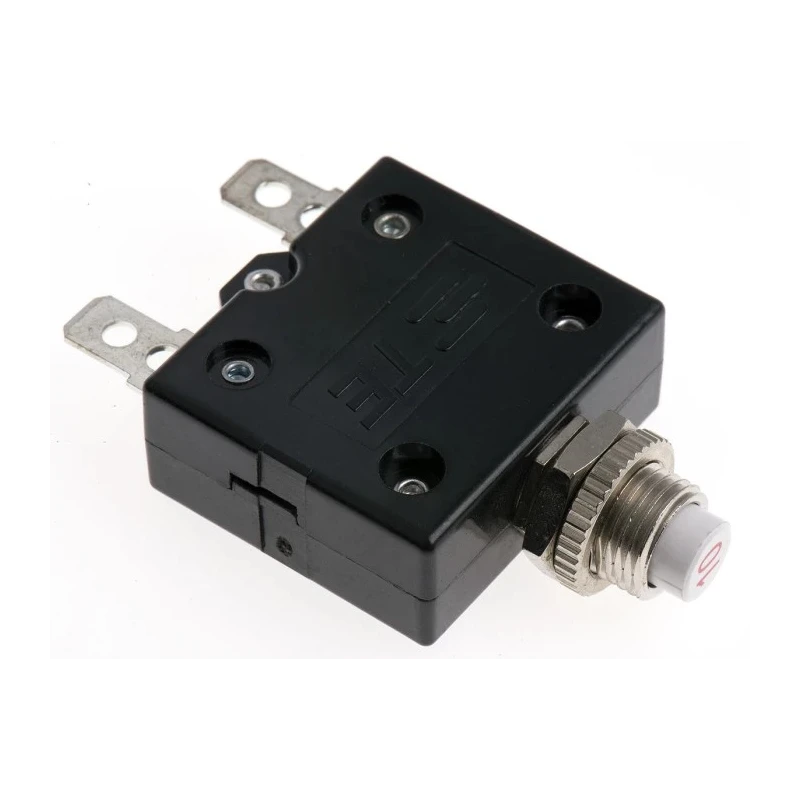

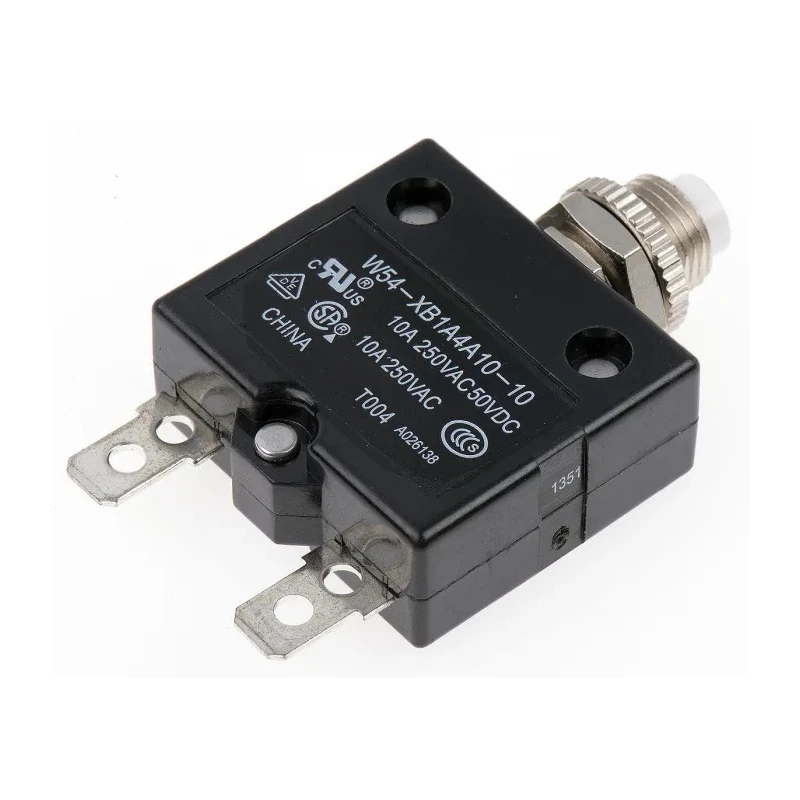

TE Connectivity Thermal Circuit Breaker 10A Current Rating 1-Pole Direct Mount 0 to +60 °C W54-XB1A4A10-10
Specifications
| Country of Origin | China |
|---|---|
| Range | 0 to +60 °C |
| Brand | TE Connectivity |
| Model | W54-XB1A4A10-10 |
| Width | 14.6mm |
| Mount Type | Direct |
| Current Rating | 10A |
| Series | W54 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | must trip at 135% of rating within one hour at +25°C, May trip between 101% and 134% |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- This thermal breaker features a toggle switch reset actuator for ease of use.
- Mount type is direct with an 18.8 mm mount hole size for secure installation.
- Rated for 250V AC and 50V DC, it supports medium break time for effective circuit protection.
- Breaking capacity is 1000A, ensuring robust interruption capability.
- Terminals use screw type connections for stable wiring.
- Tripping mechanism is thermal and must trip at 135% of rating within one hour at +25°C.
- It complies with RoHS and CE standards for quality and safety.
Product Description
TE Connectivity W54-XB1A4A10-10 thermal circuit breaker is designed to provide precise and dependable overcurrent protection with a 10A current rating and 1-pole configuration. Rated for operation within a temperature range of 0 to +60 °C, it is ideal for use in industrial, electrical, automation, and control applications.
This circuit breaker features a thermal tripping mechanism that ensures the breaker trips at 135% of rated current within one hour at ambient temperature of +25 °C, with permissible trips occurring between 101% and 134%. It includes a toggle switch reset actuator for manual reset and direct mount type with an 18.8 mm mount hole dimension for easy panel integration.
Engineered to withstand rated AC voltage up to 250V and DC voltage up to 50V, it supports a breaking capacity of 1000A with a medium break time, suitable for various protective circuit scenarios. The 14.6 mm width allows compact installation. This thermal breaker uses screw terminals for secure electrical connections and conforms to RoHS and CE standards confirming environmental and safety compliances.
The product is made in China and offers robust thermal circuit protection suitable for industrial electrical systems, automation panels, and control cabinets requiring dependable thermal breakers. It is particularly useful for applications needing single-pole breakers with medium breaking time characteristics.
This thermal circuit breaker features a toggle switch reset actuator for operator convenience. Direct mount design simplifies installation in electrical panels. Rated for 250V AC and 50V DC operation for versatile applications.
Breaking capacity of 1000A ensures reliable circuit interruption. Thermal tripping characteristics protect circuits from overcurrent conditions. Complies with RoHS and CE standards for environmental safety. Screw terminal connection provides robust wiring stability.
Compact width of 14.6 mm facilitates space-saving panel layouts.
Choose TE Connectivity W54 series for trusted, efficient thermal circuit protection in industrial and automation electrical systems. Explore more products from the Thermal Circuit Breaker category on EnvMart to find compatible circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 10A.
It has a breaking capacity of 1000A, ensuring effective circuit interruption.
It is rated for operation at 250V AC and 50V DC.
The operating temperature range is from 0 to +60 °C.
It features a thermal tripping mechanism that trips at 135% of the rated current within one hour at +25 °C.
It includes a toggle switch reset actuator for manual resetting after a trip event.
This model uses a direct mount type with an 18.8 mm mount hole size for secure installation.
The width of this circuit breaker is 14.6 mm, allowing for compact installation.
It uses screw type terminals for stable and secure electrical connections.
It complies with RoHS and CE standards for environmental safety and quality.
The breaker may trip between 101% and 134% of the rated current, with a mandatory trip at 135% within one hour at +25 °C.
It is suitable for industrial, electrical, automation, and control applications requiring overcurrent protection.
